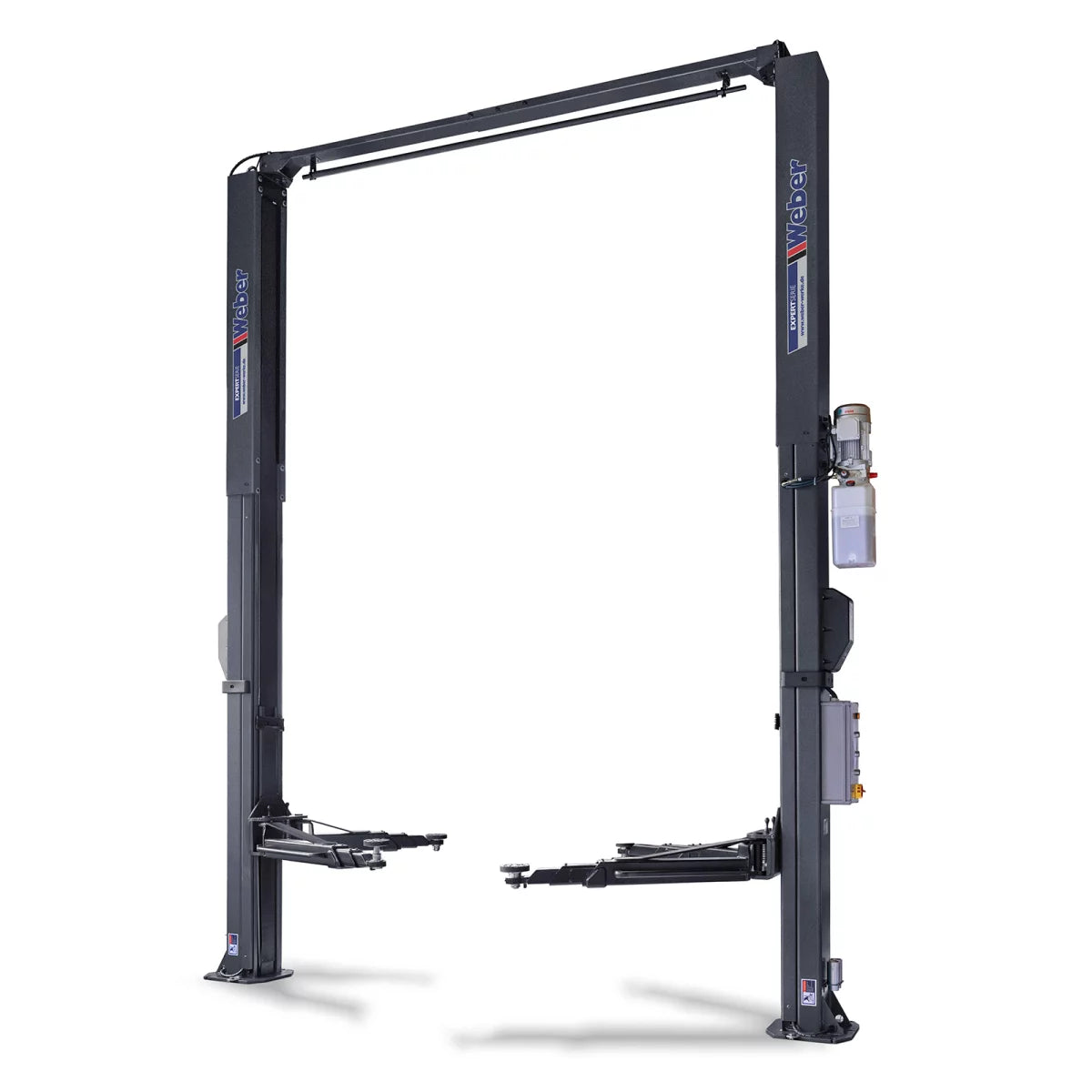

2-Post Lift Weber Expert Series SJC-10XL – 3.8M

Article number: 110138

Electro-hydraulic 2-post lift with asymmetrical arms for cars and vans

Fully automatic lifting and lowering at the touch of a button
The short support arms are double telescopic for lifting vehicles from short to very long
Door protection rubbers on both columns
Column covers in both lifting columns to protect against contamination
Asymmetrical support arms for large door opening angles
Support pads with rubber coating, double height adjustable by turning
A set of support pad extensions (4 pieces, 100 mm each) included in delivery
Low maintenance and wear, resulting in low follow-up costs

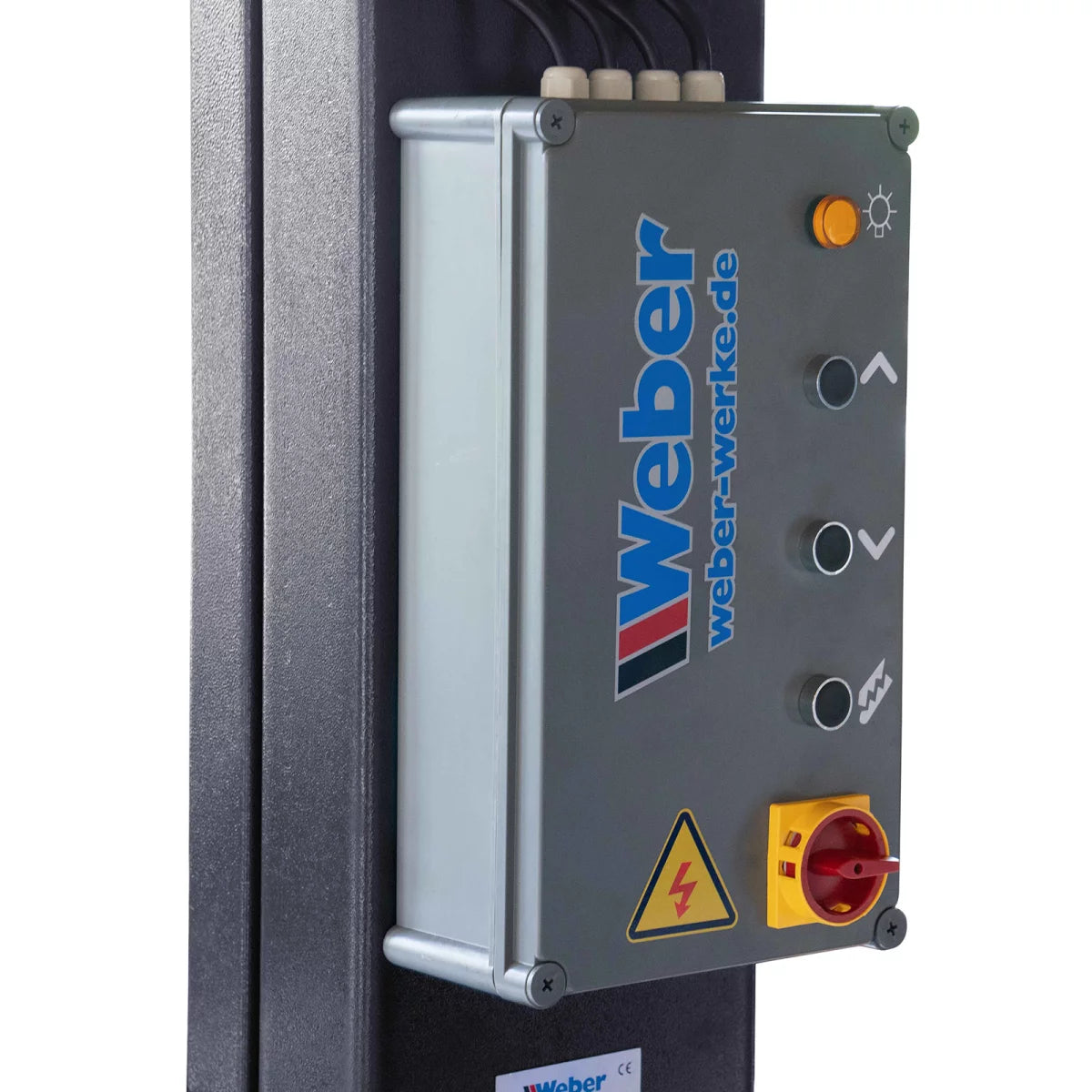

Easy handling due to 24-volt safety push-button control (dead man's switch)
Ideal lifting range for cars and, due to the large drive-through width, also suitable for vans
Automatic, conically fine-toothed arm locking, manual unlocking possible
Vertical lifting cylinders in both columns, hydraulic cylinder sealing takes place inside the cylinder tube, thus no risk of damage (dirt, grinding or welding spatter, etc.) to the piston rods
Multiple safety devices, overload valve, hose rupture protection, and mechanical safety latches
Hose routing in the column (pre-assembled on the control column)
Easy assembly, as many add-on parts (motor, switch box, hose to control column, etc.) are already pre-assembled
Electromechanically actuated safety latches
Permissible lifting capacity 4500 kg, the structure of the lift has been successfully tested dynamically with a load of 115% of the permissible total weight and statically with 150% of the permissible total weight

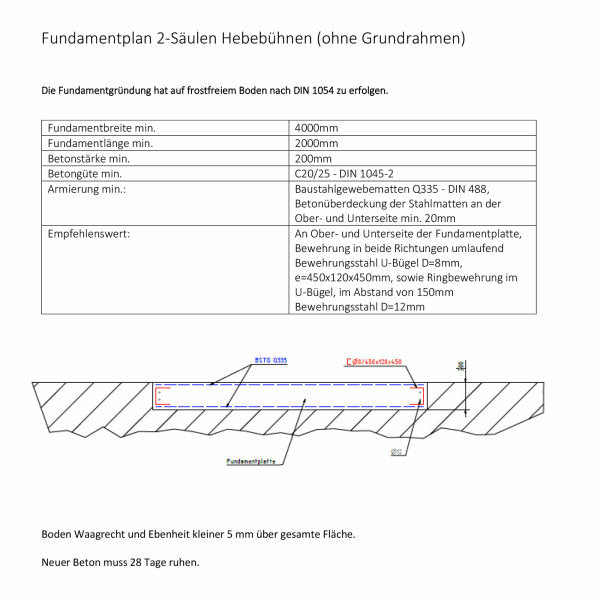

Floor requirements according to current (in Germany permissible) structural analysis, concrete C20/25 DIN1045:2001-D7 double reinforced with an extension of min. 4000 x 2000 x 200 mm

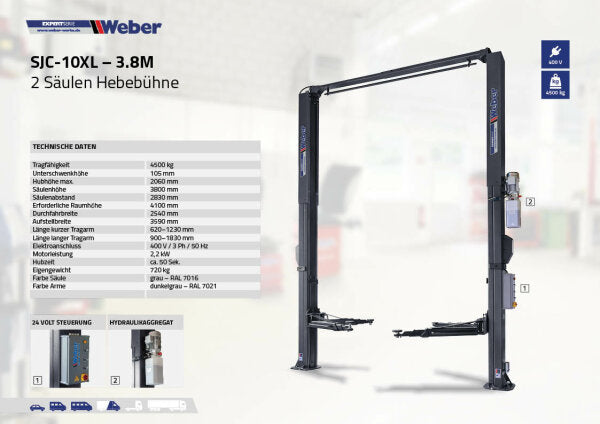

Technical data

Load capacity 4500 kg
Min. lifting height 105 mm
Max. lifting height 2060 mm
Column height 3800 mm
Required room height 4100 mm
Column spacing 2830 mm
Drive-through width 2540 mm
Overall width 3590 mm
Long arm length 900–1830 mm
Short arm length 620–1230 mm

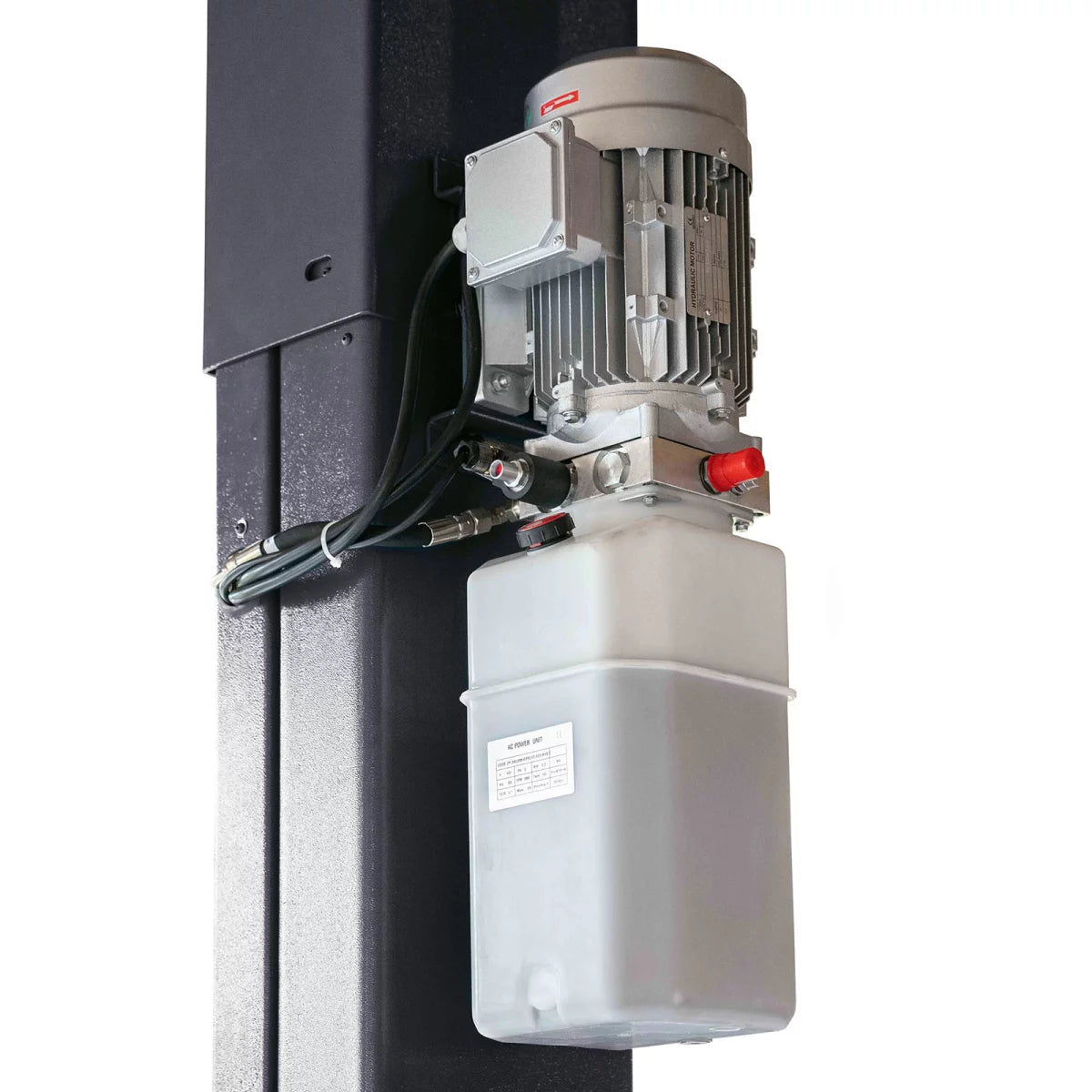

Motor power 2.2 kW
Electrical connection 400 V / 3 Ph / 50 Hz
Lifting time approx. 50 sec.
Net weight 720 kg
Column color grey – RAL 7016
Arm color dark grey – RAL 7021

Note: Hydraulic oil is not included in the scope of delivery and must be purchased separately.

Scope of delivery
-Lifting platform as shown
-4 adjustable support pads with rubber pads
-4 support pad extensions, 100 mm each
-German assembly and operating instructions including inspection logbook

Shipping dimensions
Item weight approx. 750.00 kg
Length approx. 295.00 cm
Width approx. 53.00 cm
Height approx. 83.00 cm
