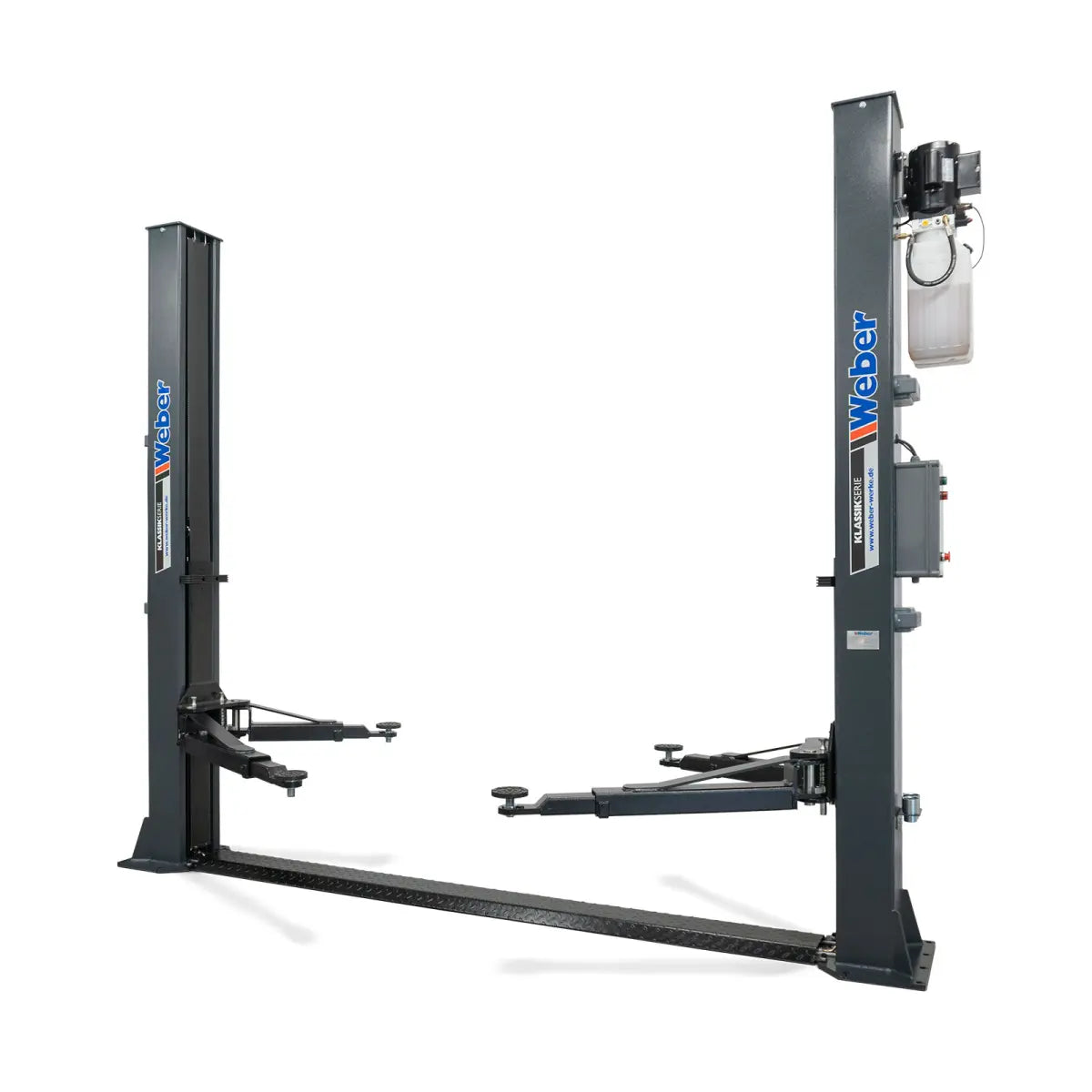

2-Post Lift Weber Klassik Series QSD-4000A

The Weber QSD-4000A from the Classic series is a powerful 2-post lift with a 4000 kg lifting capacity, specially developed for workshops, garages, and ambitious DIY mechanics. It combines robust construction, easy operation, and high safety – perfectly suited for cars, SUVs, and vans.

Thanks to its asymmetrical, telescopic support arms, the lift allows for flexible vehicle pick-up and generous door opening. With automatic safety unlocking and 24V deadman control, you can work comfortably and safely at all times.

Advantages for your workshop:

Flexible use – for cars, SUVs, and vans
Space-saving design – perfect for smaller workshops & garages
High safety – automatic unlocking & reliable locking systems
Comfortable operation & user-friendly 24 V control
Quick assembly – many parts already pre-assembled
Low maintenance, durable – robust construction reduces follow-up costs

-Raising and lowering via push button for fine adjustment of lifting height

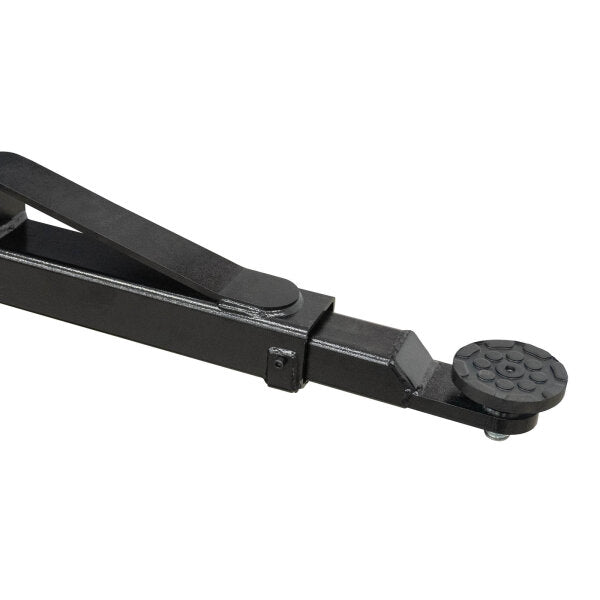

-2-piece, telescopic support arms for accommodating various vehicles
-Column covers in both lifting columns to protect against contamination

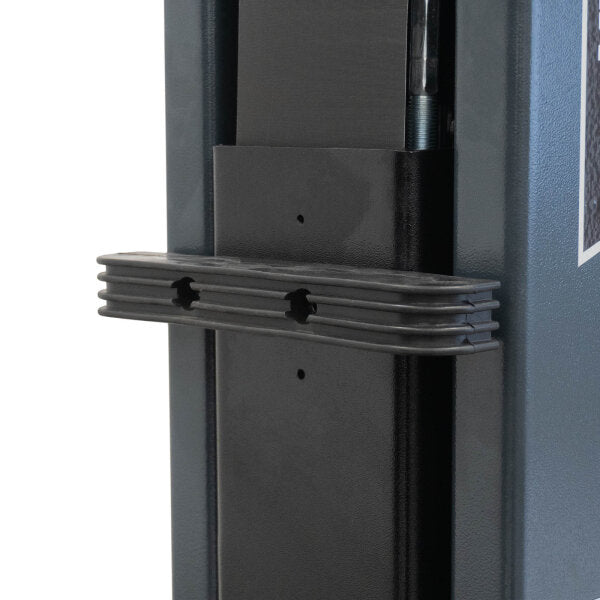

-Door protection rubber on both columns
-Asymmetrical support arms for large door opening angles
-Support pads with rubber coating, height adjustable by rotating

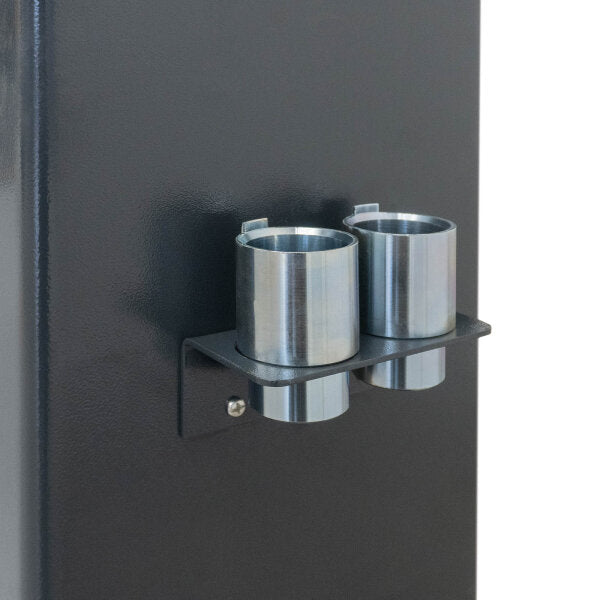

-A set of van adapters (4 pieces, 50 mm each) included in delivery
-Low maintenance and wear, thus low follow-up costs

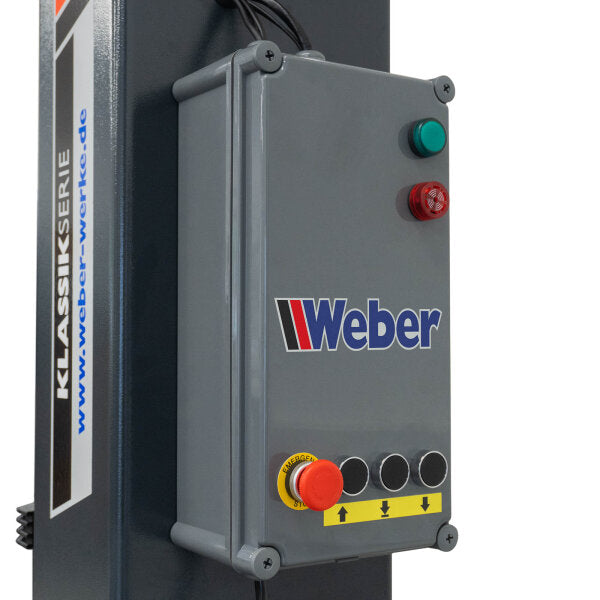

-Easy handling due to 24-volt safety push-button control (deadman control)
-Ideal pick-up range for cars and vans
-Low swing-arm height, only 85 mm

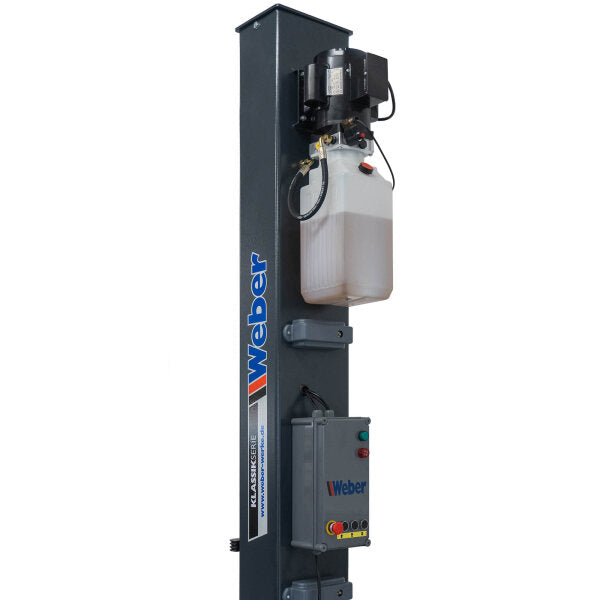

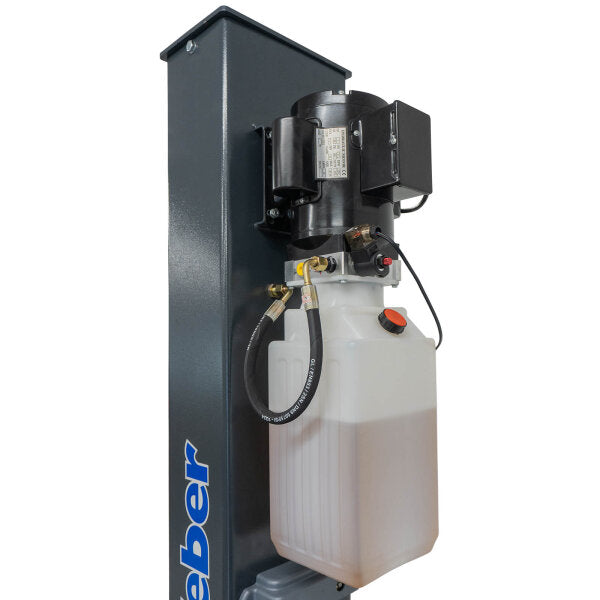

-Easy assembly, as many attachments (motor, control box, hose on control column, etc.) are already pre-assembled
-Wide drive-through width, also suitable for vans

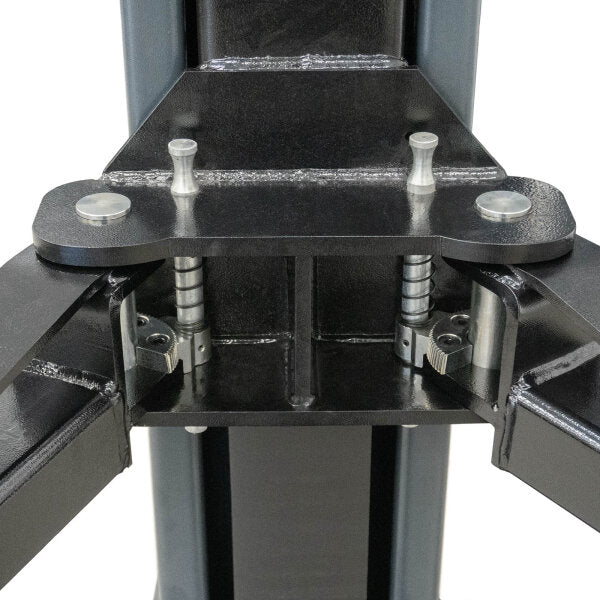

-Automatic support arm locking, manual unlocking possible
-Upright lifting cylinders in both columns, hydraulic cylinder sealing occurs within the cylinder tube, thus no risk of damage (contamination, grinding or welding spatter, etc.) to the piston rods
-Multiple safety devices, overload valve, hose rupture protection, and mechanical safety latches
-Safety latches electro-mechanically operated
-CE-stop safety limit switch (pinch protection) and electronic lift limitation
-Permissible lifting capacity 4000 kg; the lift structure has been successfully tested dynamically with a load of 115% of the permissible gross weight and statically with 150% of the permissible gross weight

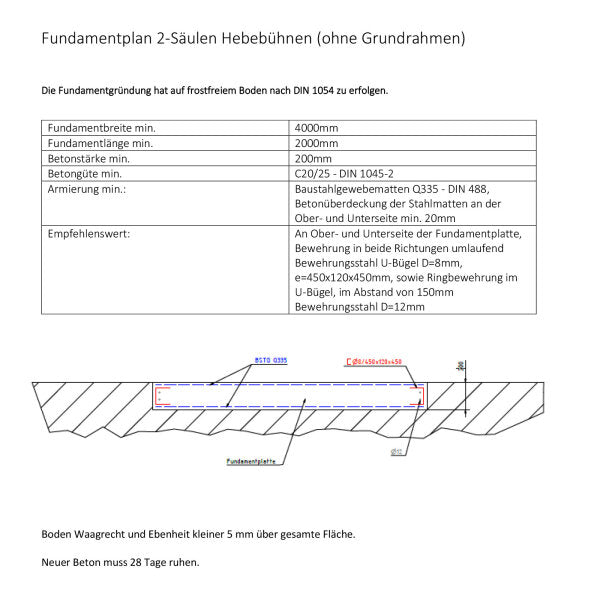

-Floor requirements according to current (in Germany permissible) statics, concrete C20/25 DIN1045:2001-D7 double reinforced with an area of min. 4000 x 2000 x 200 mm

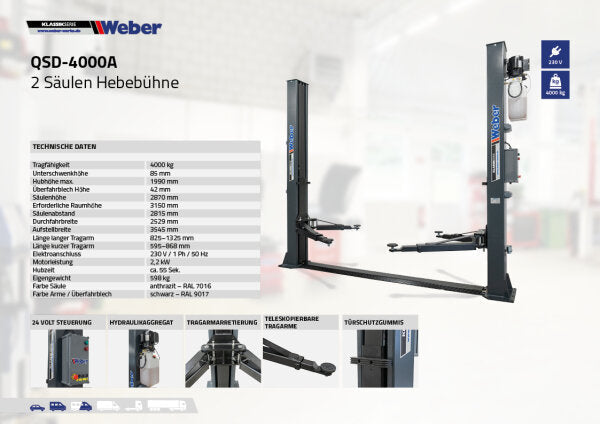

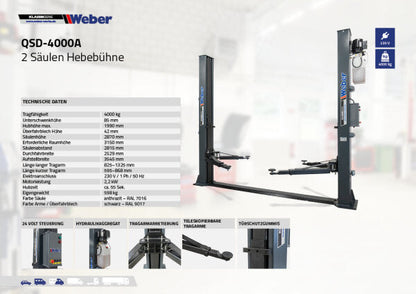

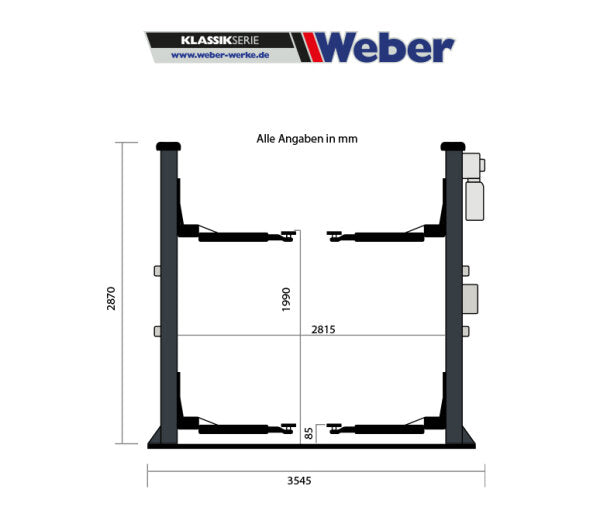

Technical Data
Lifting capacity 4000 kg
Minimum lifting height 85 mm
Max. lifting height 1990 mm
Column height 2870 mm
Required room height 3150 mm
Column spacing 2815 mm
Drive-through width 2529 mm
Overall width 3545 mm
Long support arm length 825–1325 mm
Short support arm length 595–868 mm
Motor power 2.2 kW
Electrical connection 230 V / 1 Ph / 50 Hz
Lifting time approx. 55 sec.
Dead weight 598 kg
Column color anthracite – RAL 7016
Drive-over plate height 42 mm
Arm/drive-over plate color black – RAL 9017

Note: Hydraulic oil is not included in the scope of delivery and must be purchased separately.

Scope of delivery
-Lifting platform as pictured
-4 adjustable lifting pads with rubber pads
-4 lifting pad extensions of 50 mm each
-German assembly and operating instructions including inspection log

Shipping dimensions
Item weight: approx. 598.00 kg
Length: approx. 295.00 cm
Width: approx. 53.00 cm
Height: approx. 83.00 cm
