2-Post Lift Weber Profi Series 4.2G with Base Frame

Name: 2-Post Lift Weber Profi Series 4.2G with Base Frame
Brand: Weber Werke
SKU: 110109
Price: 2699.0 EUR
Availability: InStock

SKU:110109

€2.699,00

Sale Sold out

Tax included. Versandkosten für diesen Artikel: DE EUR 249.00 ()

Product variants

Quantity

Auf Lager - Lieferzeit: 3 bis 5 Werktage innerhalb Deutschlands
5 bis 7 Werktage innerhalb der EU & der Schweiz

◇

Dieses Produkt leasen?

Jetzt unverbindlich Leasingangebot anfragen.

Leasinganfrage starten

high quality
fast delivery
excellent service

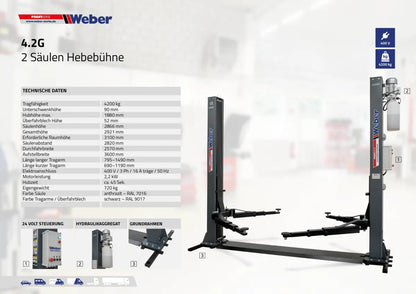

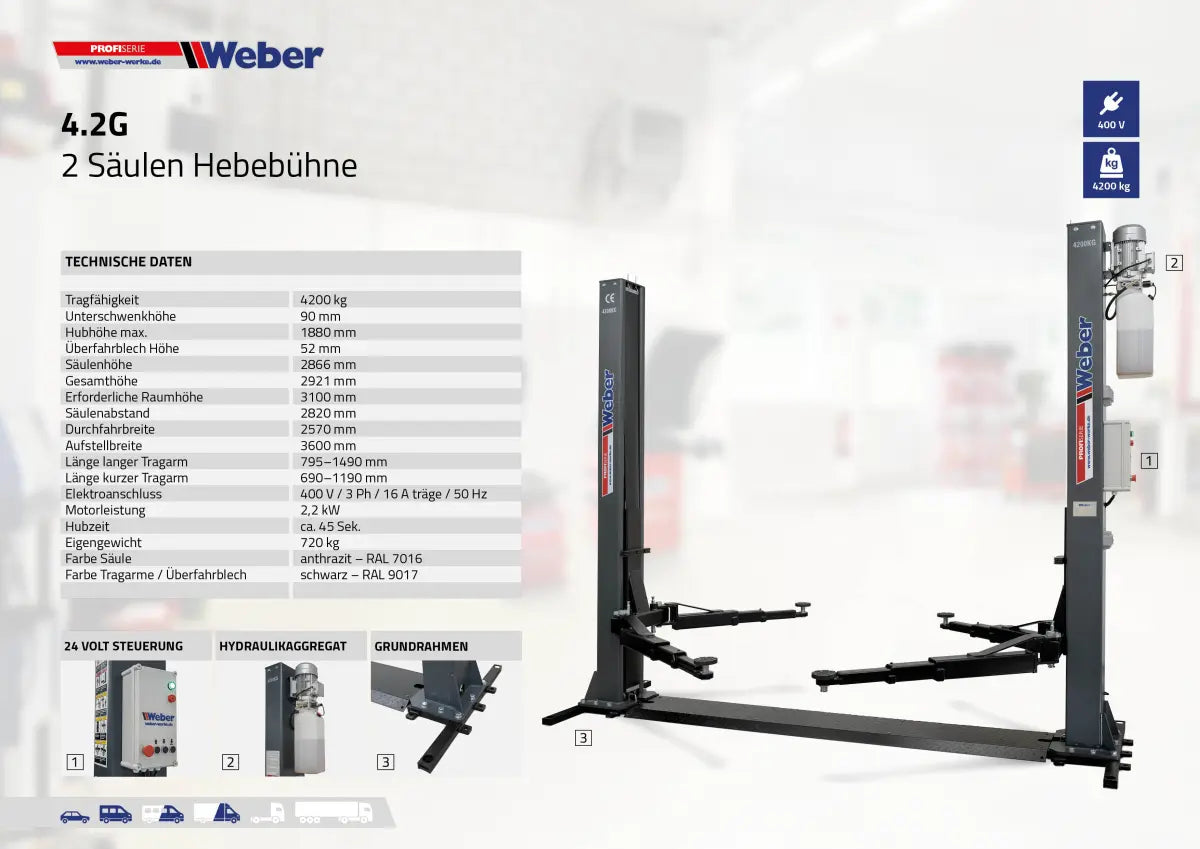

Electro-hydraulic 2-post lift with base frame for cars and small vans

Electro-hydraulic 2-post lift with 4200 kg lifting capacity, sturdy base frame, asymmetric support arms, automatic safety latch release, and 400 V electrical connection.

Product videos

Possible applications

Long wheelbase minibus: conditionally suitable

The application areas of our lifts are very diverse due to the variety of vehicle models and their jacking points. Therefore, we would like to point out that the indicated application pictograms are only intended as a guide and do not reflect the actual lifting capacity of our products. Weber GmbH does not guarantee that all models of the corresponding vehicle class can be lifted. If you have any questions or uncertainties in choosing a suitable product, we will be happy to advise you.

Product Information

Article number: 110109
Electro-hydraulic 2-post lift with base frame for cars and small vans

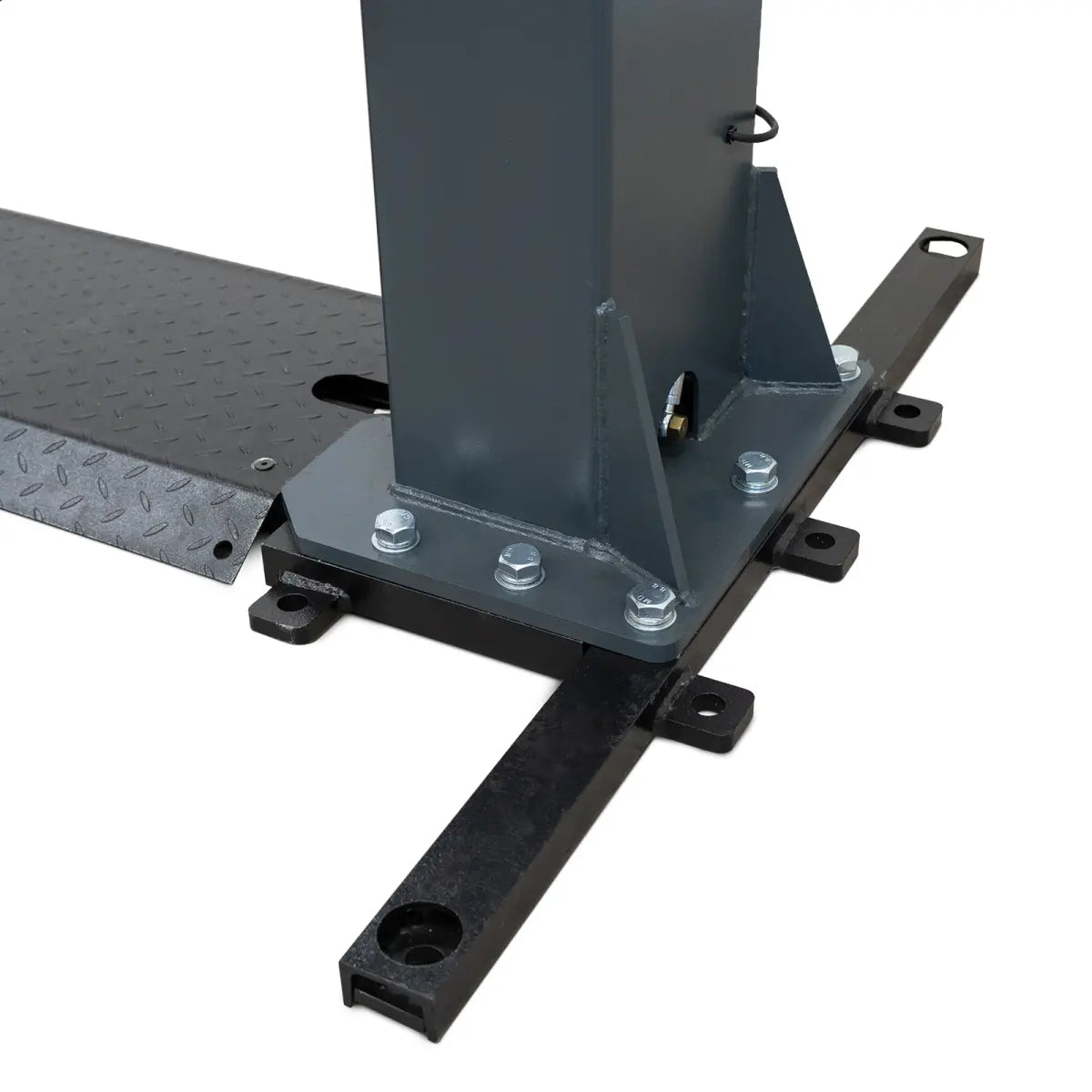

stable base frame for secure standing of the lift, even with poorer concrete quality
-asymmetrical support arms for wide door opening angles
-easy handling thanks to 24-volt safety push-button control (dead man's switch)
-torsion-resistant column profiles
-door protection rubbers on both columns
-large drive-through width of 2570 mm
-easy lifting and lowering via push-button
-column covers in both lifting columns to protect against contamination
-finely toothed support arm locking, automatically and manually unlockable
-multiple safety devices, overload valve, hose rupture protection, and mechanical safety latches
-safety latches automatically actuated
-CE-Stop safety limit switch (pinch protection) and electronic lifting limitation
low maintenance and wear
powder-coated surfaces

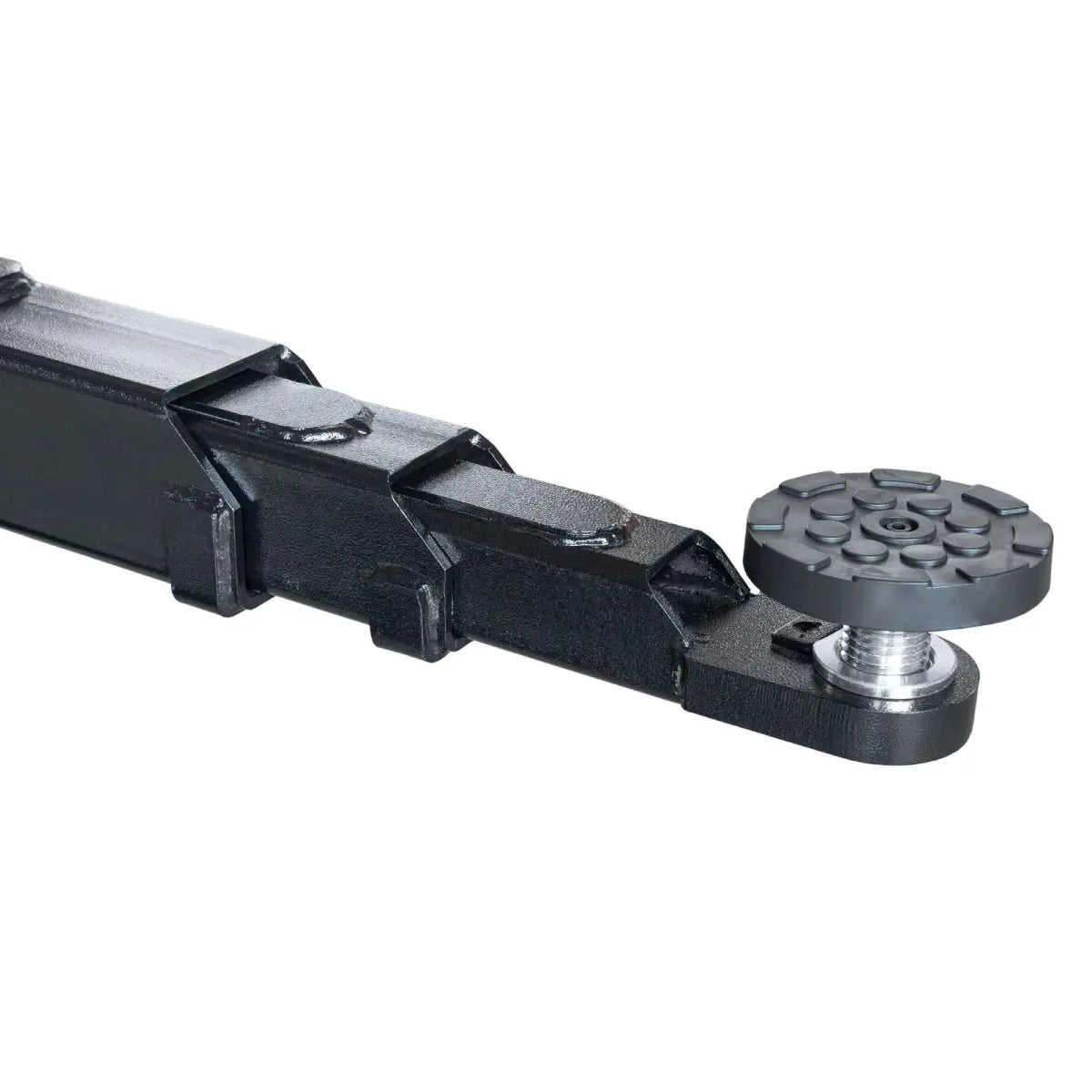

-receiving pads/support plates with thread for height adjustment
the essential components of the lift are pre-assembled
permissible load capacity 4200 kg, the structure of the lift has been successfully tested dynamically with a load of 115% of the permissible total weight and statically with 150% of the permissible total weight
Floor requirements according to current (in Germany permissible) static analysis, concrete C20/25 DIN1045:2001-D7 double reinforced with an expansion of min. 4000 x 2000 x 150 mm

Technical data

Load capacity 4200 kg
Minimum lifting height 125 mm
Max. lifting height 1915 mm
Column height 2866 mm
Required room height 3100 mm
Column spacing 2820 mm
Drive-through width 2570 mm
Noise level <75 dB
Installation width 3600 mm
Length of long support arm 795–1490 mm
Length of short support arm 690–1190 mm
Motor power 2.2 kW
Electrical connection 400 V / 3 Ph / 16A slow-blow / 50 Hz
Lifting time approx. 45 sec.
Dead weight 720 kg
Column color anthracite – RAL 7016
Support arm / drive-over plate color black – RAL 9017
Drive-over plate height 52 mm
Overall height 2921 mm

Shipping Information

Scope of delivery:
-Lifting platform as pictured
-4 adjustable pick-up plates with rubber pads
-German assembly and operating instructions including inspection logbook

Shipping dimensions:
Item weight: approx. 750.00 kg
Length: approx. 300.00 cm
Width: approx. 55.00 cm
Height: approx. 120.00 cm
