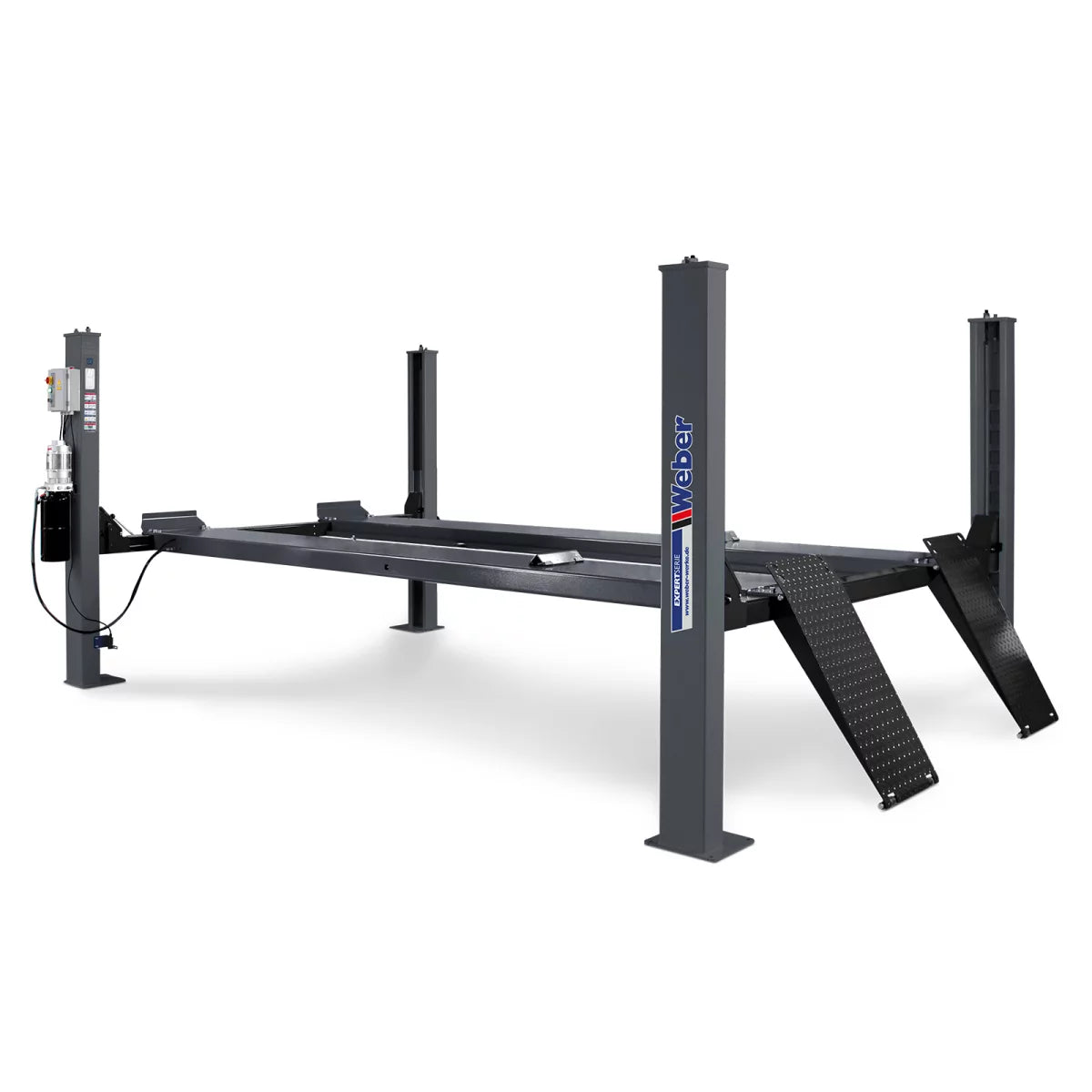

4 Säulen Hebebühne Weber Expert Serie Autolift 6.4

4 Säulen Hebebühne Weber Expert Serie Autolift 6.4

Regular price €5.499,00
Regular price Sale price €5.499,00
Sale Sold out
Tax included. Versandkosten für diesen Artikel: DE 490,00 € (Weitere Länder)
Befestigung
Achsfreiheber
Vermessungssatz
- Lieferzeit:
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Klarna
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Satispay
  • Union Pay
  • Visa
  • high quality
  • fast delivery
  • great service
  • für PKW, Kleintransporter und leichte LKW geeignet
  • niedrige Auffahrhöhe und lange Rampen für tiefergelegte Fahrzeuge
  • feinjustier- und nivilierbar für Achsvermessung
  • Sicherheitsverriegelung und Absetzklinken
  • automatische Seilbruch- und Schlaffseilsicherung
  • Überdruckventil und Rohrbruchsicherheitsventil
  • Bedienung über Tasterschaltung mit Totmann-System
  • Signaltonsicherung ab dem CE-Stopp
  • hydraulischer Zugzylinder mit stabilem Seilzugjoch
  • schnelle Hub- und Senkgeschwindigkeit
  • feste Abrollsicherung vorne, mobile sowie automatische Abrollsicherung hinten
  • pneumatische Entriegelung der Sicherheitsklinken
  • verschiebbare Fahrschienen für maximale Flexibilität beim Arbeiten

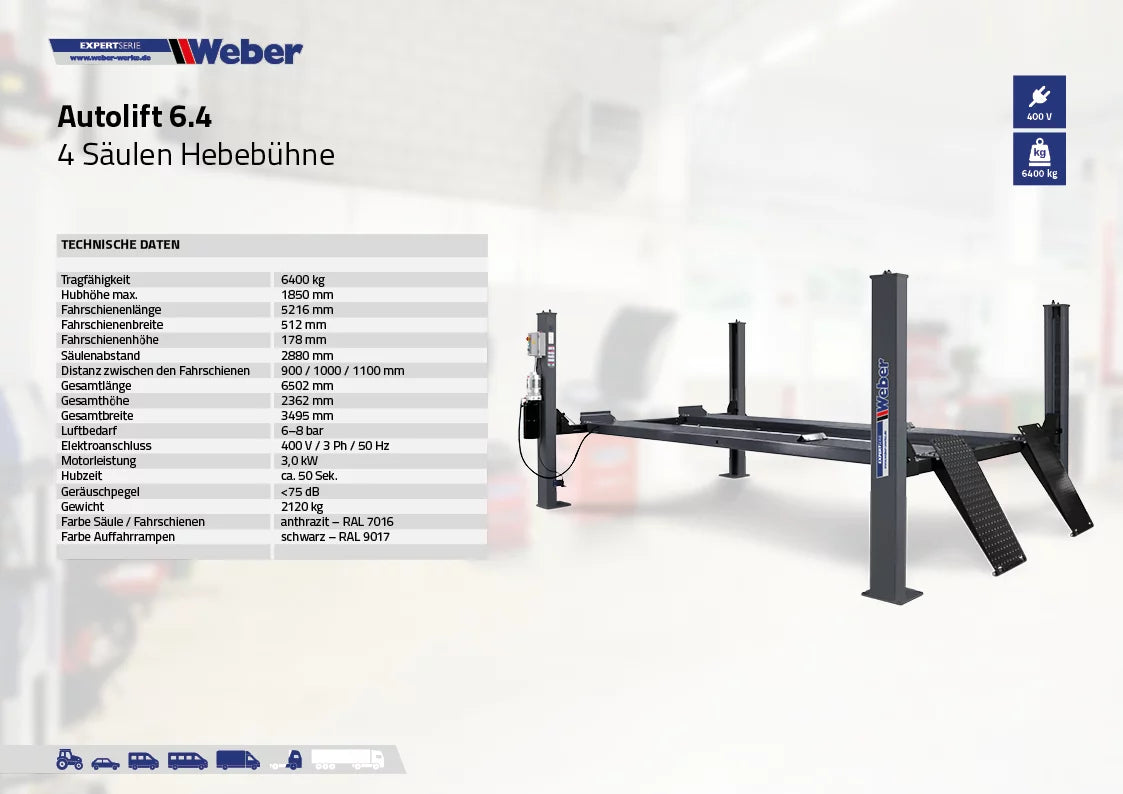

Technische Daten

Tragfähigkeit 6400 kg
Fahrschienenbreite 512 mm
Hubhöhe max. 1850 mm
Luftbedarf 6–8 bar
Säulenabstand 2880 mm
Geräuschpegel <75 dB
Motorleistung 3,0 kW
Elektroanschluss 400 V / 3 Ph / 50 Hz
Hubzeit ca. 50 Sek.
Fahrschienenlänge 5216 mm
Fahrschienenhöhe 178 mm
Distanz zwischen den Fahrschienen 900 / 1000 / 1100 mm
Gesamtlänge 6502 mm
Gesamthöhe 2362 mm
Gesamtbreite 3495 mm
Farbe Säule / Fahrschienen anthrazit – RAL 7016
Farbe Auffahrrampen schwarz – RAL 9017
Gewicht 2120 kg

Möglicher Anwendungsbereich

* Die Anwendungsbereiche unserer Hebebühnen sind durch die Variationsbreite der Fahrzeugmodelle und deren Aufnahmepunkte sehr vielfältig. Deshalb weisen wir Sie darauf hin, dass die angegebenen Anwendungspiktogramme nur als Orientierungshilfe dienen sollen, und nicht die tatsächliche Aufnahmeleistung unserer Produkte widerspiegeln. Die Weber GmbH übernimmt keine Haftung, dass sich alle Modelle der entsprechenden Fahrzeugklasse aufnehmen lassen. Sollten Sie Fragen oder Unsicherheiten bei der Auswahl eines geeigneten Produktes haben, beraten wir Sie gern, Tel: 05654 343.


Lieferumfang

  • Hebebühne wie ausgewählt
  • 2 mobile Abrollsicherungen
  • deutsche Aufbau- und Betriebsanleitung inklusive Prüfbuch

Versandabmessungen

Versandbild Dimensionshebebühne
Artikelgewicht ca. 2.200,00 kg
Länge ca. 540,00 cm
Breite ca. 60,00 cm
Höhe ca. 85,00 cm
