Electro-hydraulic double scissor lift with 3000 kg lifting capacity for cars and vans, for surface mounting with a low drive-over height and redundant hydraulic cylinder system for double safety. Ideal for tire service, body, and paint shops.

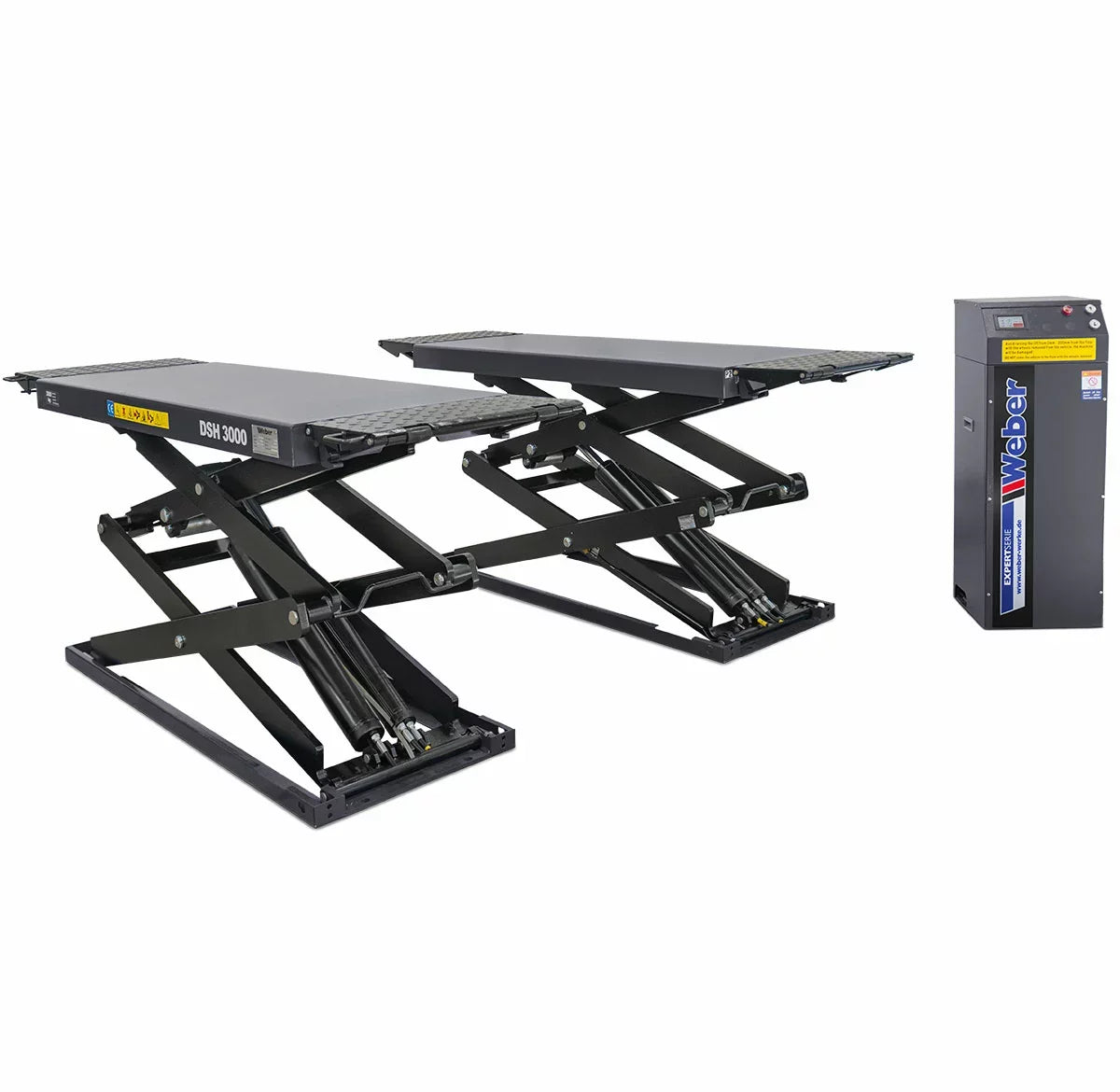

Electro-hydraulic double scissor lift for surface mounting

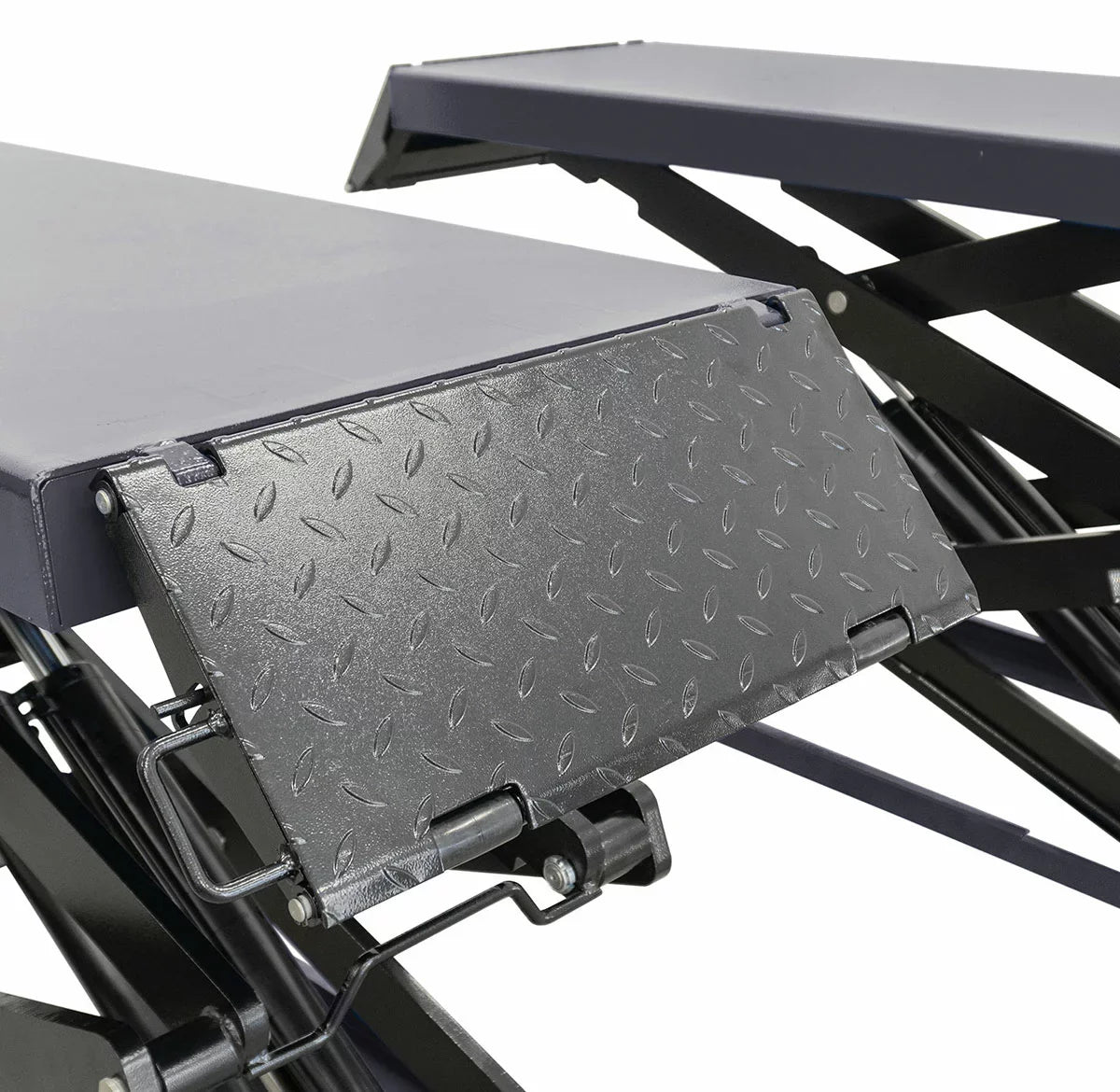

• Vehicle acceptance extendable by lockable drive-on ramps
• low drive-over height
• large lifting height
• absolute door freedom
• small footprint
• no rigid connection between the scissor sections
• safety and overload valves in the cylinder systems

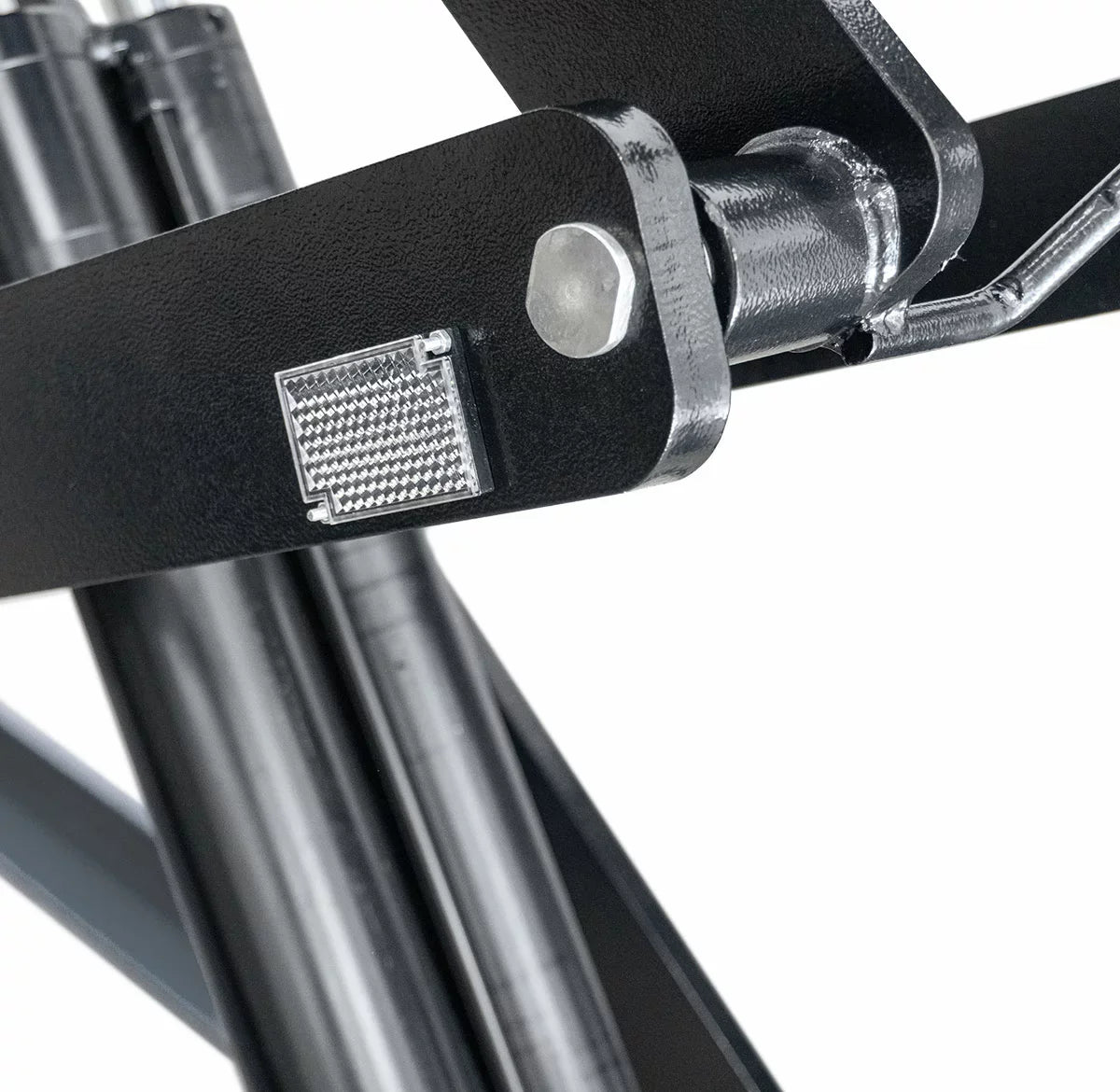

• electronic synchronization monitoring

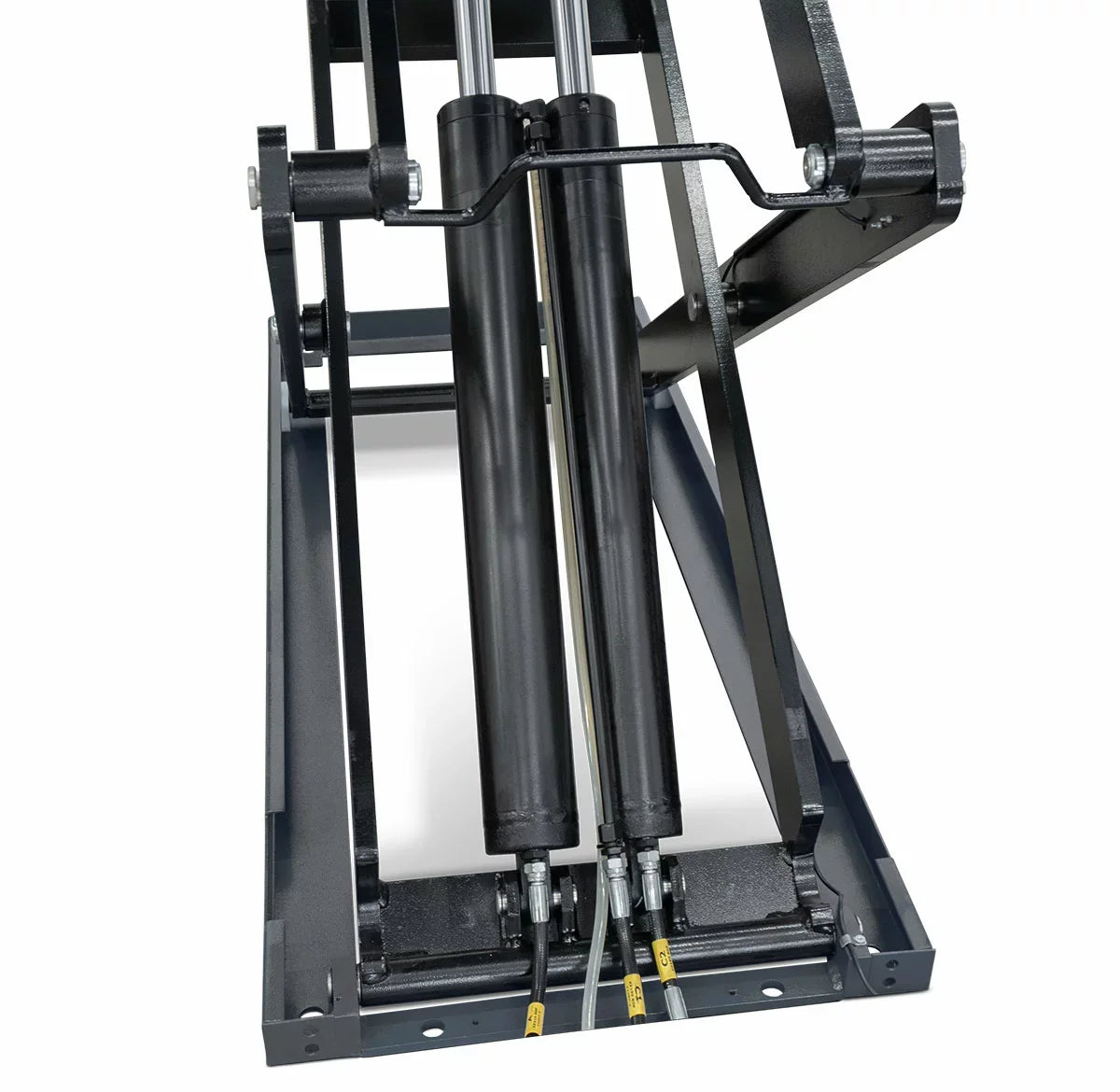

• double safety through redundant cylinder system and additional electronic synchronization monitoring
• variable positioning control unit with LED status display for all functions
• low-wear bearings of the scissor joints
• automatic synchronization of the two scissor elements

---

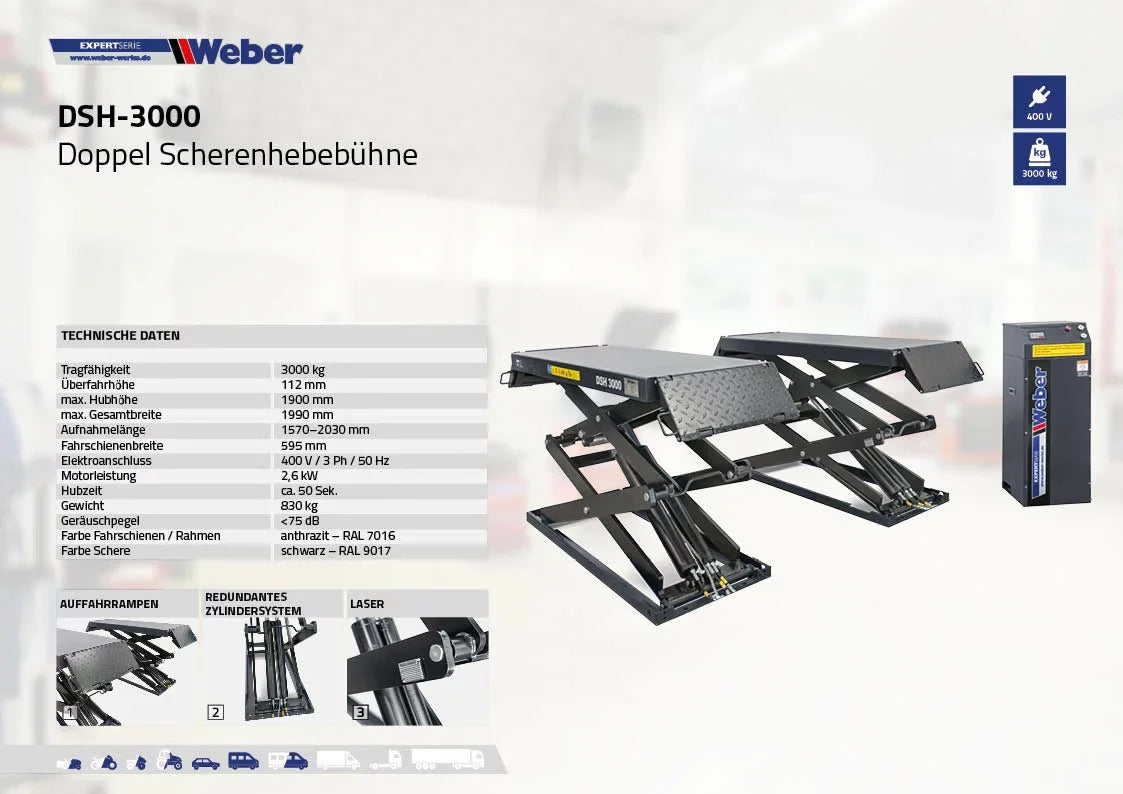

Technical Data
Drive-over height	112 mm
Lifting capacity	3000 kg
Pickup length	1570–2030 mm
Track width	595 mm
Noise level	<75 dB
Motor power	2.6 kW
Electrical connection	400 V / 3 Ph / 50 Hz
Lifting time	approx. 50 sec.
Net weight	830 kg
max. lifting height	1900 mm
max. overall width	1990 mm
Color track/frame	anthracite – RAL 7016
Color scissor	black – RAL 9017

---

Possible Application Area

* The application areas of our lifting platforms are very diverse due to the wide variety of vehicle models and their jacking points. Therefore, we would like to point out that the indicated application pictograms are only intended as a guide and do not reflect the actual lifting capacity of our products. Weber GmbH assumes no liability that all models of the respective vehicle class can be lifted. If you have any questions or uncertainties regarding the selection of a suitable product, we will be happy to advise you.

---

Scope of Delivery

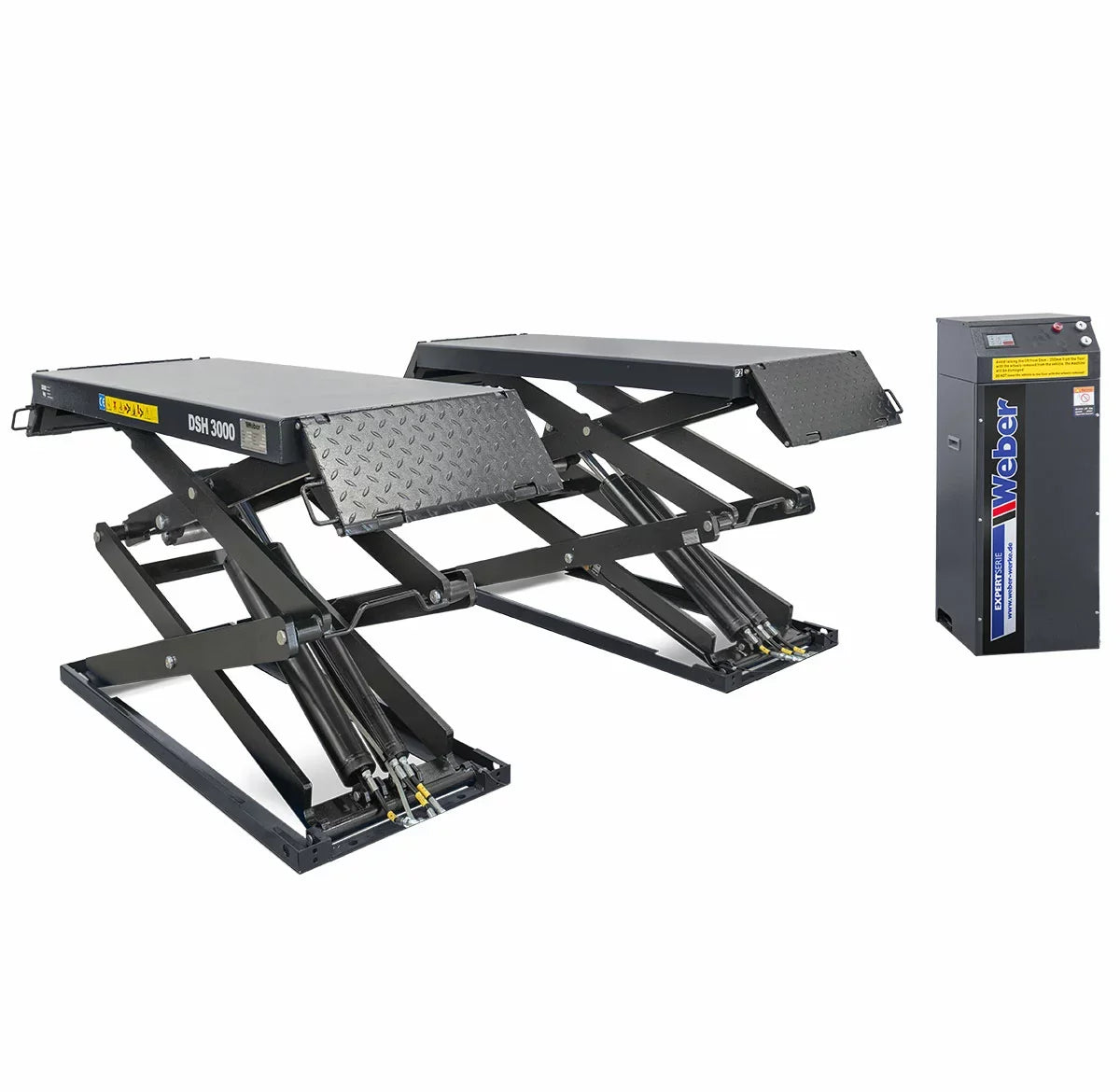

• Double scissor lift with power unit as shown
• 1 set of universal rubber pads
• Supply lines approx. 3500 mm
• Cover plates for supply lines to the control unit
• German assembly and operating instructions including test book

---

Shipping Dimensions

Shipping Dimensions Package 1
Item weight	approx. 830.00 kg
Length	approx. 162.00 cm
Width	approx. 63.00 cm
Height	approx. 33.00 cm
Shipping Dimensions Package 2
Item weight	approx. 70.00 kg
Length	approx. 55.00 cm
Width	approx. 41.00 cm
Height	approx. 115.00 cm
