Mobile Short-Stroke Scissor Lift Weber Expert Series SH-3500

Name: Mobile Short-Stroke Scissor Lift Weber Expert Series SH-3500
Brand: Weber Werke
SKU: 120115
Price: 2599.0 EUR
Availability: InStock

SKU:120115

€2.599,00

Sale Sold out

Tax included. Versandkosten für diesen Artikel: DE €229.00 ()

Product variants

Quantity

Auf Lager - Lieferzeit: 3 bis 5 Werktage innerhalb Deutschlands
5 bis 7 Werktage innerhalb der EU & der Schweiz

◇

Dieses Produkt leasen?

Jetzt unverbindlich Leasingangebot anfragen.

Leasinganfrage starten

high quality
fast delivery
excellent service

Mobile short-stroke scissor lift for cars and vans

Mobile, electro-hydraulic short-stroke scissor lift for cars and vans with 3500 kg lifting capacity and redundant hydraulic cylinder system for double safety.

Product Videos

Possible Application Area

Long wheelbase minibus: conditionally suitable

* The application areas of our lifting platforms are very diverse due to the wide range of vehicle models and their pick-up points. Therefore, we would like to point out that the indicated application pictograms are only intended as a guide and do not reflect the actual pick-up capacity of our products. Weber GmbH assumes no liability that all models of the corresponding vehicle class can be picked up. If you have any questions or uncertainties in choosing a suitable product, we will be happy to advise you.

Product Information

Article number: 120115

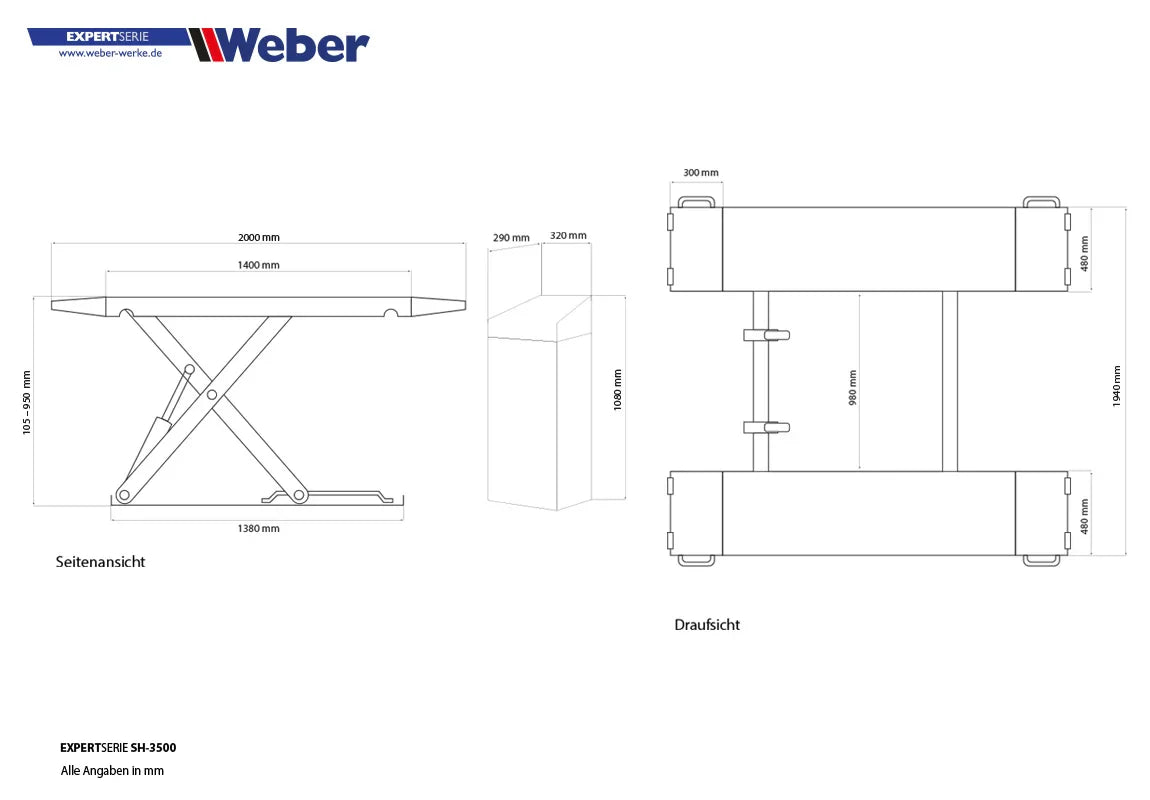

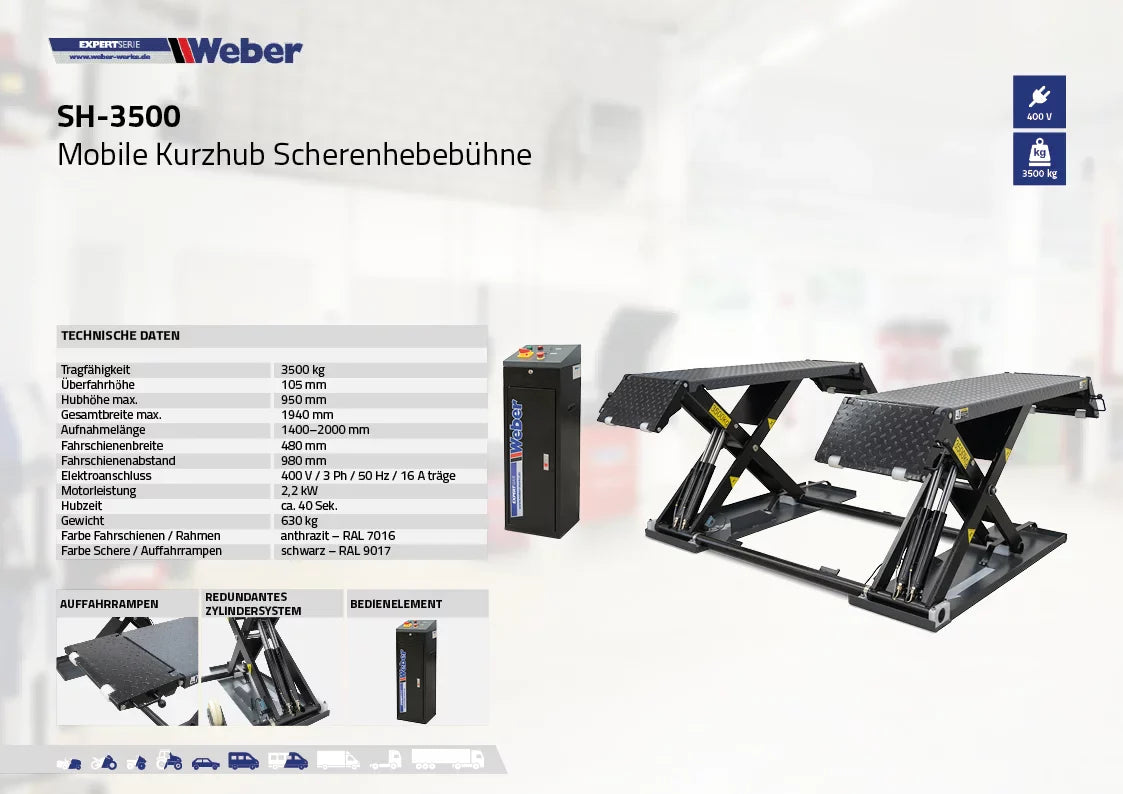

Technical data
Drive-over height: 105 mm
Load capacity: 3500 kg
Platform length: 1400-2000 mm
Runway width: 480 mm
Runway spacing: 980 mm
Max. lifting height: 950 mm
Runway/frame color: anthracite – RAL 7016
Scissor/ramp color: black – RAL 9017
Motor power: 2.2 kW
Electrical connection: 400 V / 3 Ph / 50 Hz / 16 A slow-blow
Lifting time: approx. 40 sec.
Max. overall width: 1940 mm
Weight: 630 kg

-Fully automatic lifting and lowering at the touch of a button
-Lowering without additional lifting possible, as no mechanical safety latches are installed
-4 hydraulic cylinders for powerful lifting even in the lower range
-Low maintenance and wear, resulting in low follow-up costs

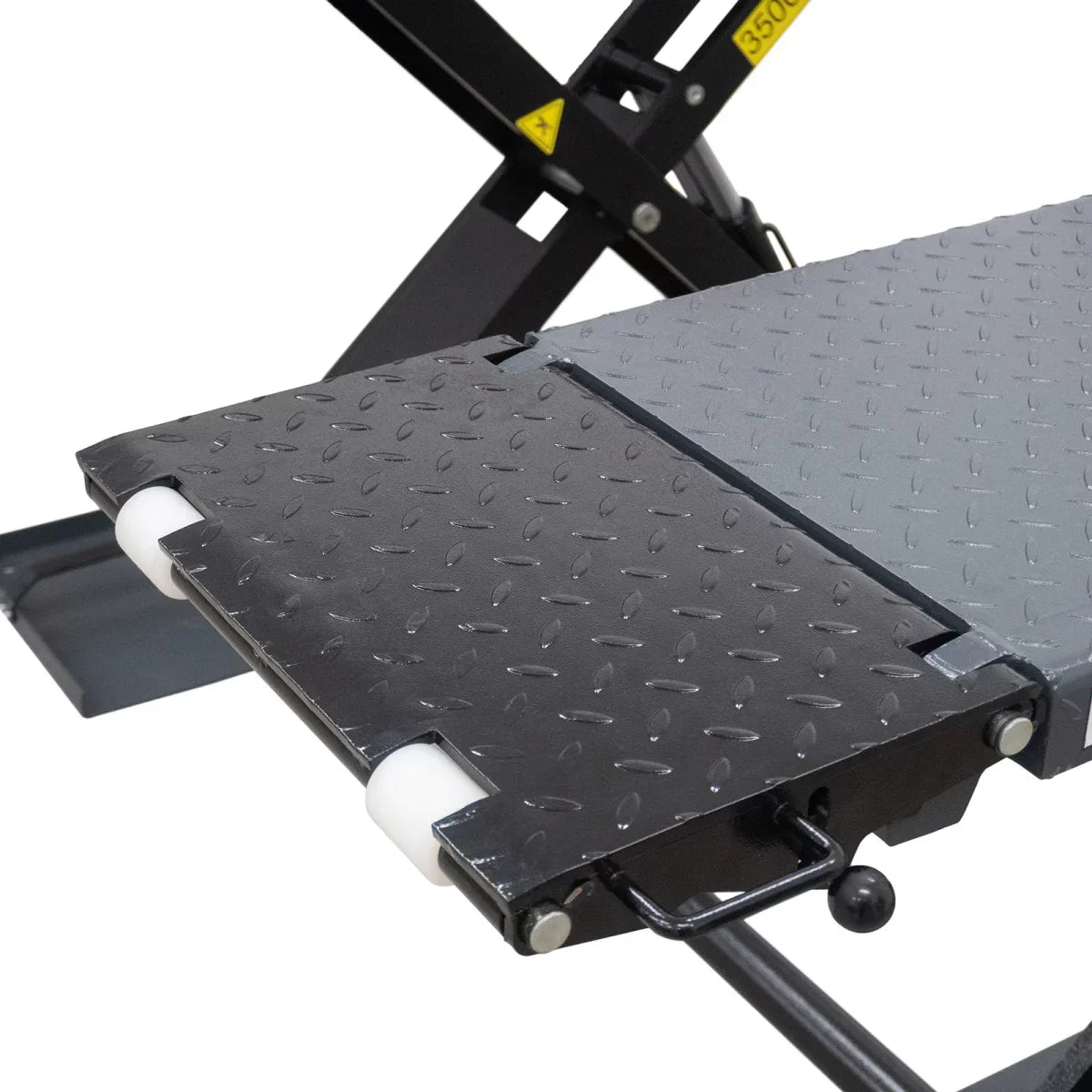

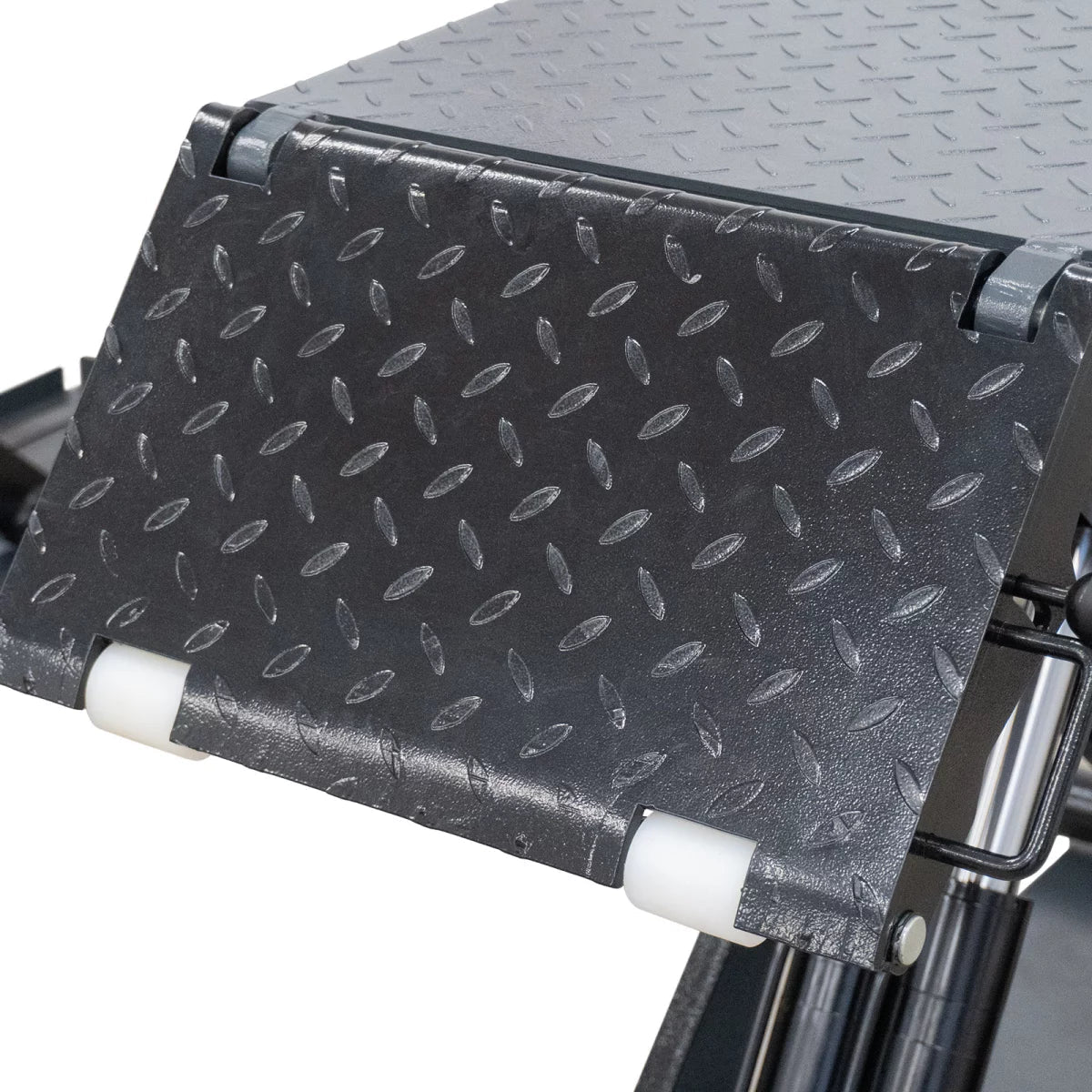

-The drive-on ramps can be locked and loaded as platform extensions
-4 rubber pads for vehicle placement are included in the scope of delivery
-Runways with ribbed surface
-Easy handling due to 24-volt safety push-button control (dead man's switch)

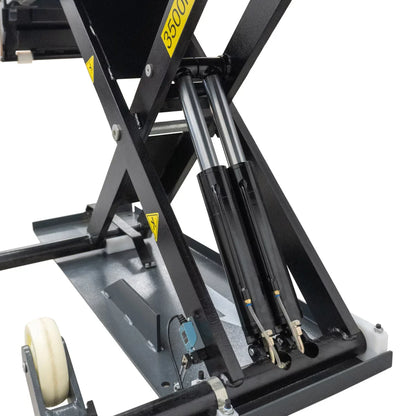

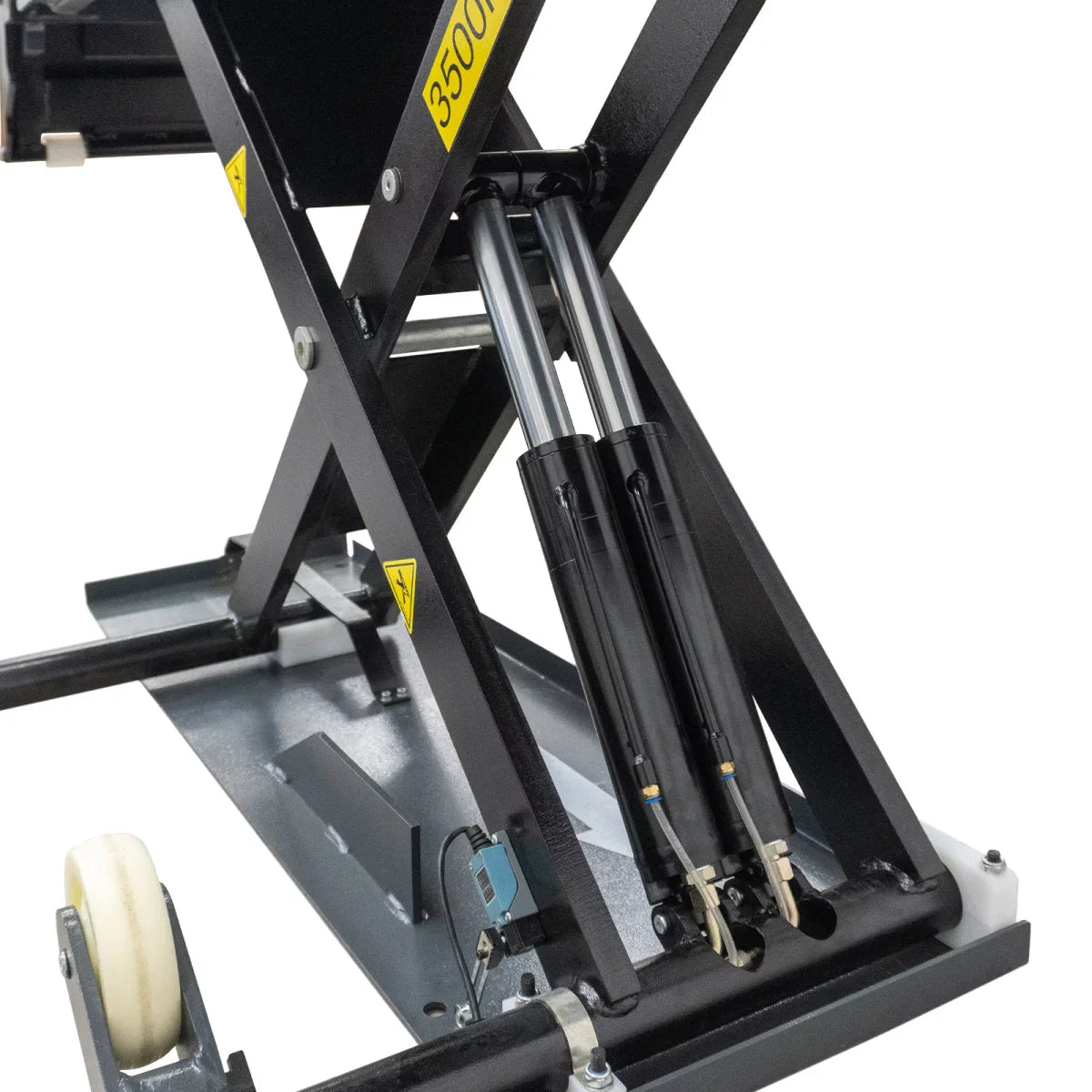

-Double safety through redundant hydraulic cylinder system
-Electronic lift limitation by limit switch
-CE stop switch with acoustic signal in the lower area
-Minimal requirements for floor conditions
-Permissible load capacity 3500 kg; the structure of the lift has been successfully tested dynamically with a load of 115% of the permissible total weight and statically with 150% of the permissible total weight

Note: A 16A CEE plug with phase inverter, 5-pin (400 V) is not included in the scope of delivery and must be purchased separately.

Shipping Information

Scope of Delivery

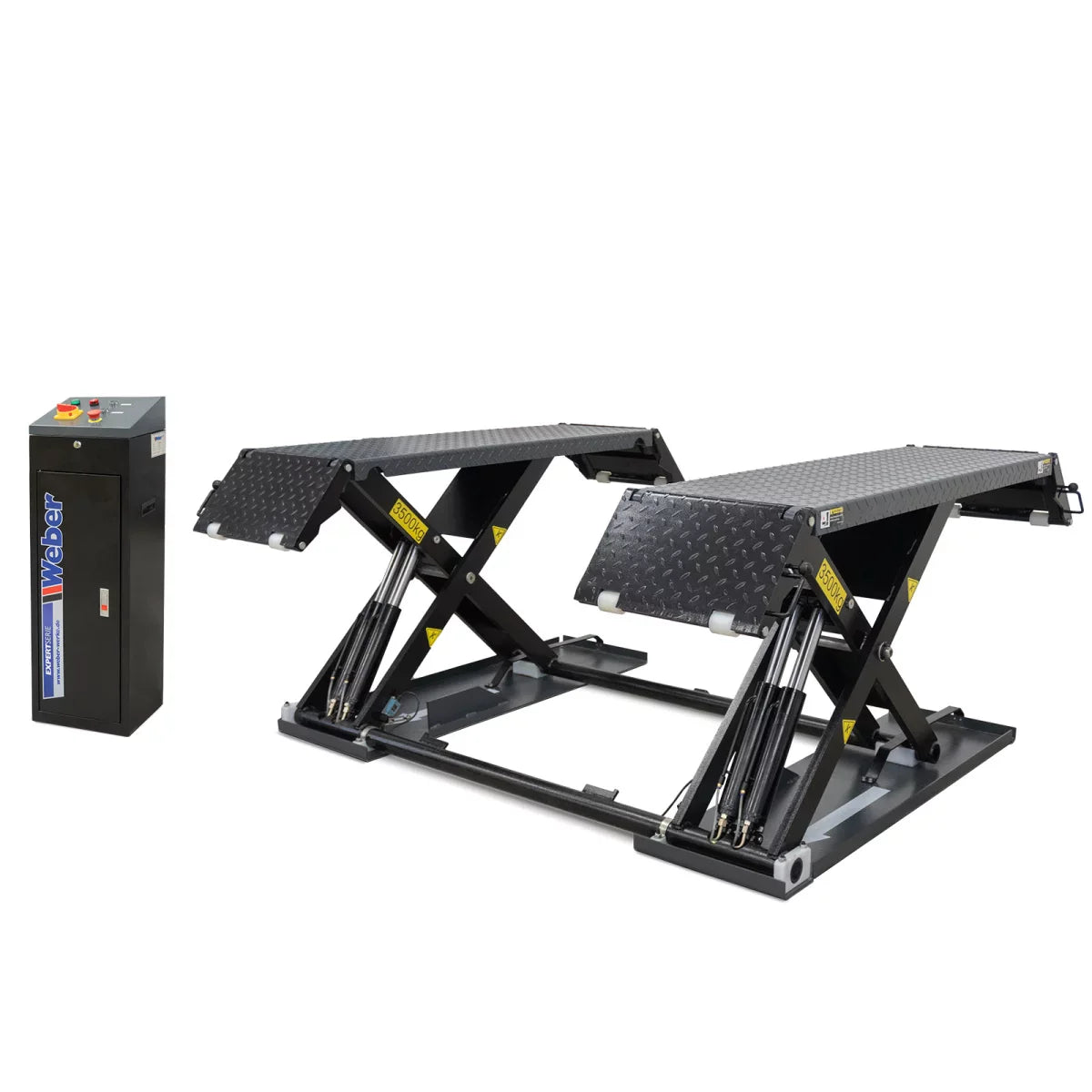

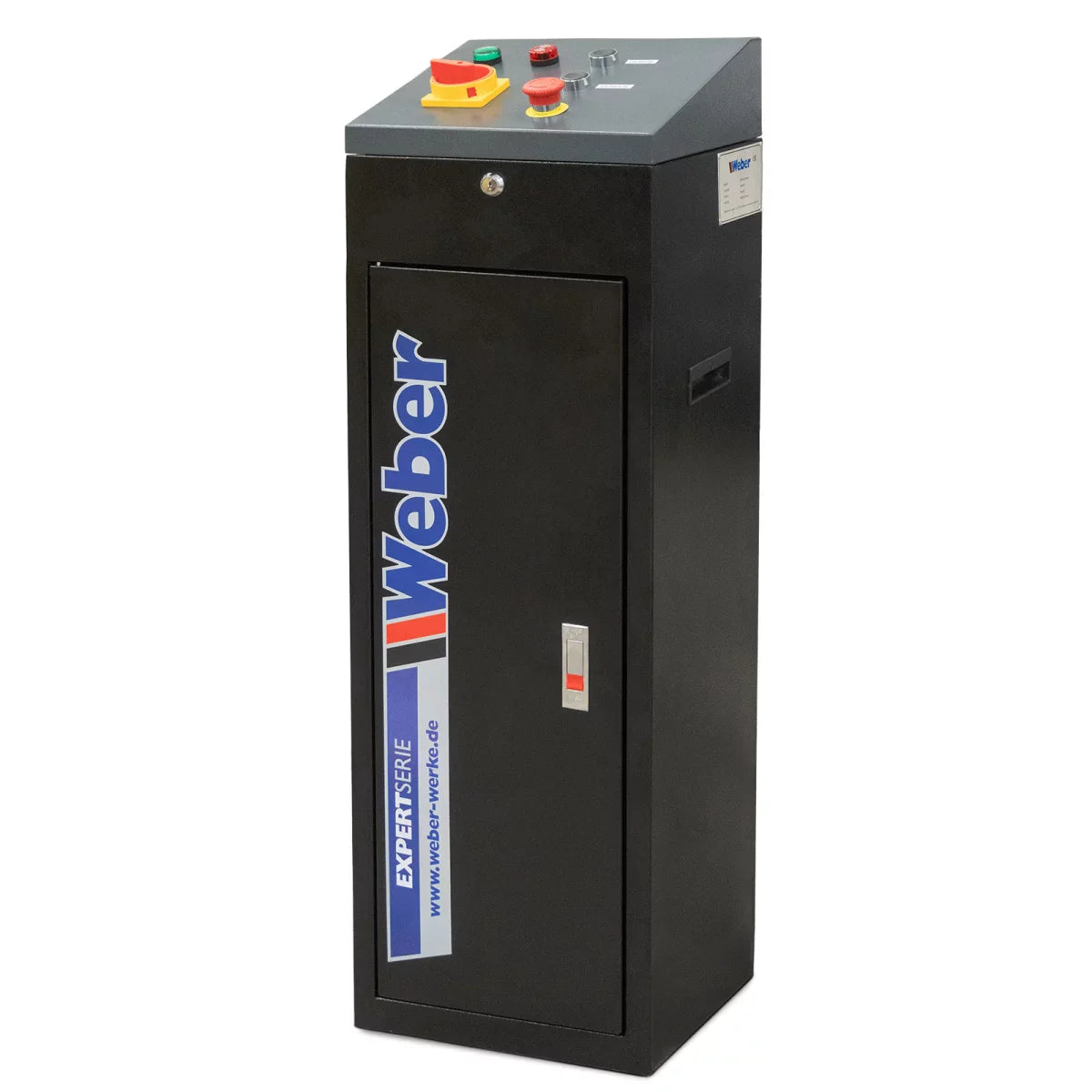

Scissor lift with power unit box as pictured
4 rubber pads for vehicle support
Mobile kit for moving the lift, consisting of 2 front attachable rollers and 1 maneuvering jack
German assembly and operating instructions including inspection logbook

Shipping Dimensions
Item weight: approx. 560.00 kg
Length approx. 160.00 cm
Width approx. 200.00 cm
Height approx. 35.00 cm
