Weber Werke

SKU:150088

• high quality
• fast delivery
• excellent service

Item number: 150088

Professional wheel balancer for rims up to 24".

Wheel balancer for rims up to 24"

The Weber Klassik Series "ECO" wheel balancer combines solid technology with minimal space requirements and easy operation, making it well-suited for small workshops, fleet managers, and private users. The wheel balancer features a program for balancing steel rims as well as four additional programs for aluminum rims up to a maximum wheel diameter of 24". Both static and dynamic balancing are possible.

• static and dynamic balancing
• 4 aluminum programs and one steel rim program
• automatic balancing process with wheel braking
• integrated software for self-test and calibration
• optimization function for weight display <5 g

---

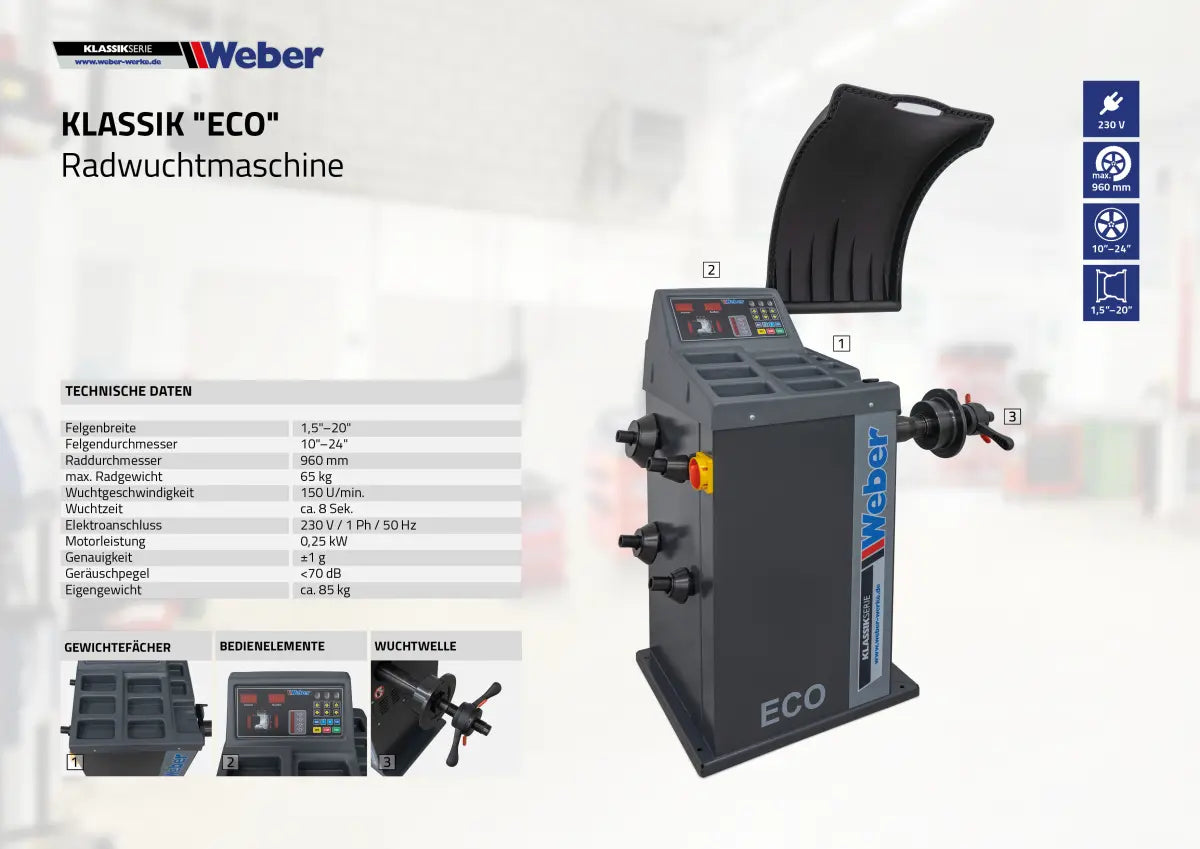

Technical Data
Rim diameter	10"–24"
max. wheel weight	65 kg
Noise level	<70 dB
Motor power	0.25 kW
Electrical connection	230 V / 1 Ph / 50 Hz
Net weight	approx. 85 kg
Rim width	1.5"–20"
Wheel diameter	960 mm
Balancing speed	150 rpm
Balancing time	approx. 8 sec.
Accuracy	± 1 g
Balancing shaft diameter	36 mm

---

Product Videos

---

Scope of delivery

• Wheel balancer as shown
• Calibration weight, rim width gauge, weight pliers, 4 balancing cones, quick-release nut, aluminum rim attachment for quick-release nut
• German assembly and operating instructions

---

Shipping dimensions

Item weight	approx. 85.00 kg
Length	approx. 58.00 cm
Width	approx. 85.00 cm
Height	approx. 118.00 cm
