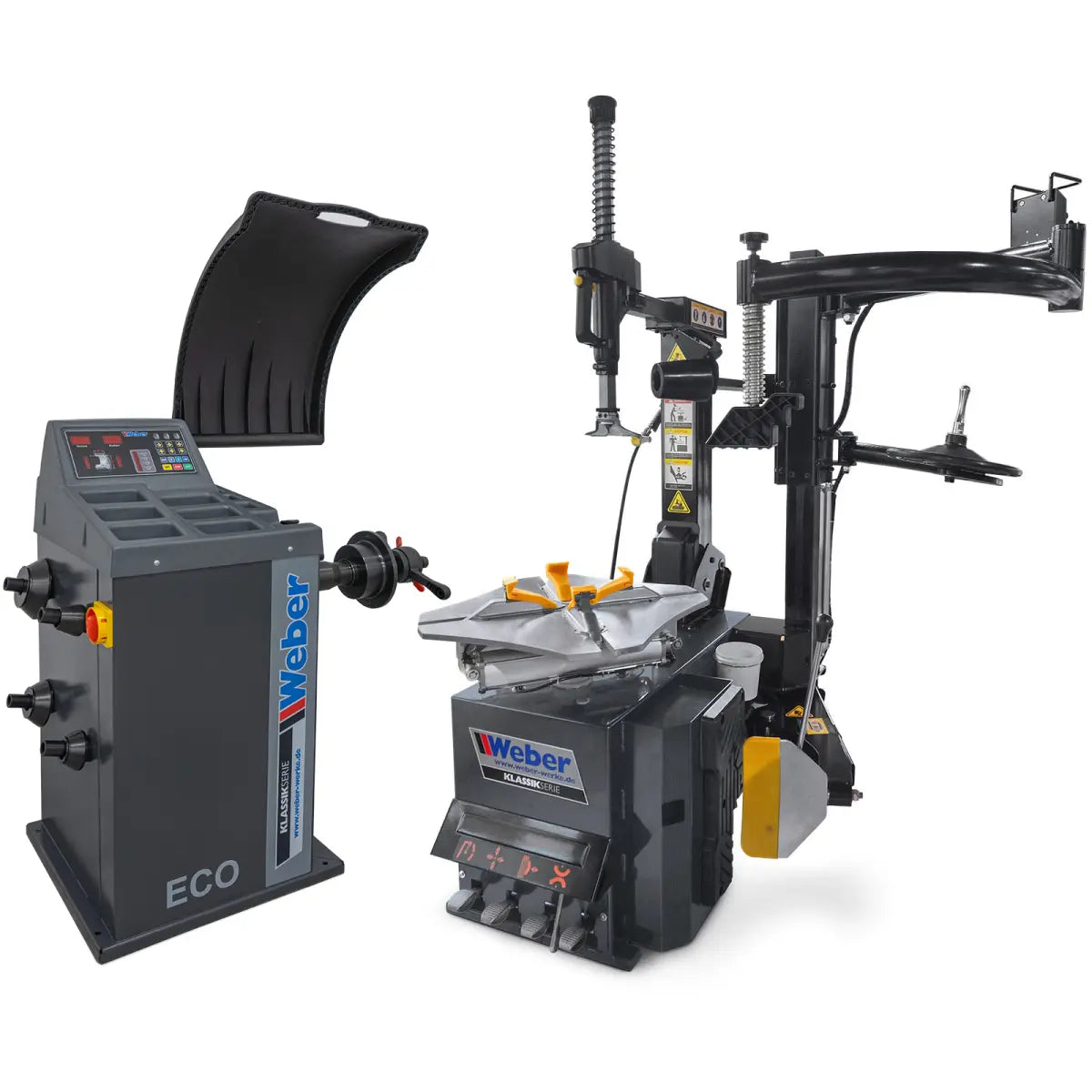

Car tire changer H-1024 and wheel balancer "ECO" incl. right assist arm
Car tire changer H-1024 and wheel balancer "ECO" incl. right assist arm
SKU:AM357
5 bis 7 Werktage innerhalb der EU & der Schweiz
high quality
fast delivery
excellent service
Couldn't load pickup availability
Item Number: AM357
Tire service machine package consisting of a tire changer with pneumatically tilting mounting column from the Weber Klassik series and a wheel balancer from the Weber Klassik series.
Tire changer for rims up to 24"
- pneumatically tilting mounting column
- pneumatic locking of the mounting head
- ideal clamping range for cars and vans (motorcycle adapter optional)
- mounting head with receptacle for plastic protective elements to protect the rim
- clamping jaws made of high-strength steel for secure clamping of the rim from the inside and outside
- self-centering clamping plate up to 24" rim size
Weber Klassik auxiliary mounting arm right
- auxiliary mounting arm for general workshop use
- operation of the mounting arm via joystick
- hand guard bar to prevent unintentional operation
Wheel balancer for rims up to 24"
The Weber Klassik series "ECO" wheel balancer combines solid technology with a small footprint and simple operation, making it well suited for small workshops, fleet managers and private users. The balancer has a program for balancing steel rims as well as four other programs for aluminum rims up to a maximum wheel diameter of 24". Both static and dynamic balancing are possible.
- static and dynamic balancing
- 4 alloy wheel programs and one steel wheel program
- automatic balancing process with wheel braking
- integrated software for self-test and calibration
- optimization function for weight display <5 g
Technical data – Tire changer H-1024 |
|
| Rim clamping outside | 10"–21" |
| Rim clamping inside | 12"–24" |
| max. wheel width | 310 mm |
| max. wheel diameter | 1040 mm |
| Electrical connection | 230 V / 1 Ph / 50 Hz |
| Motor power | 1.1 kW |
| Air requirement | 8 bar |
| Bead breaking force | 2500 kg |
| Noise level | <70 dB |
| Net weight | approx. 200 kg |
Technical data – Wheel balancer Klassik "ECO" |
|
| Rim diameter | 10–24" |
| max. wheel weight | 65 kg |
| Noise level | <70 dB |
| Motor power | 0.25 kW |
| Electrical connection | 230 V / 1 Ph / 50 Hz |
| Net weight | approx. 85 kg |
| Rim width | 1.5"–20" |
| Wheel diameter | 960 mm |
| Balancing speed | 150 rpm. |
| Balancing time | approx. 8 sec. |
| Accuracy | ± 1 g |
| Balancing shaft diameter | 36 mm |
Product videos
Scope of delivery
- Tire changer as shown
- Bucket for mounting paste, tire inflator and tire lever
- 4x plastic protection for clamping jaws
- Wheel balancer as shown
- Calibration weight, rim width gauge, weight pliers, 4 balancing cones, quick-release nut, aluminum rim attachment for quick-release nut
- German assembly and operating instructions
Shipping dimensions
| Shipping dimensions package 1 | |
|---|---|
| Item weight | approx. 220.00 kg |
| Length | approx. 97.00 cm |
| Width | approx. 76.00 cm |
| Height | approx. 96.00 cm |
| Shipping dimensions package 2 | |
| Item weight | approx. 85.00 kg |
| Length | approx. 58.00 cm |
| Width | approx. 85.00 cm |
| Height | approx. 118.00 cm |
Product safety information
Manufacturer information:Name: Weber GmbH
Street: Sülzbach 1
Postal code, City: 37293, Herleshausen
Country: Germany
State: Hesse
Email: info@weber-werke.de
Homepage: https://www.weber-werke.de
