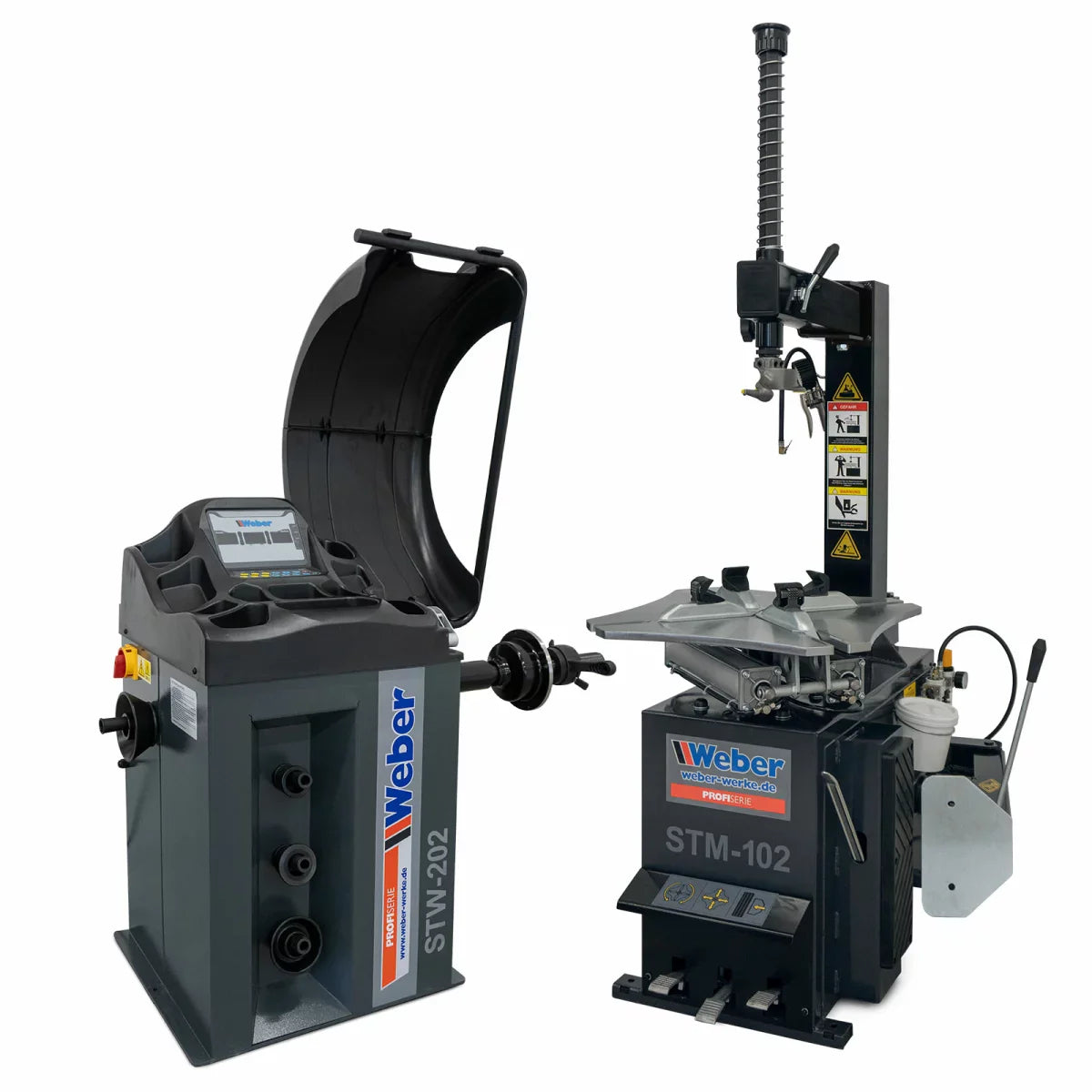

Car tire changer STM-102 and wheel balancer STW-202

Item number: AM345

Wheel balancer for rims up to 24"

-Side-swinging mounting arm
-Eccentric clamping of the mounting head
-Ideal clamping range for cars and vans (motorcycle adapter optional)

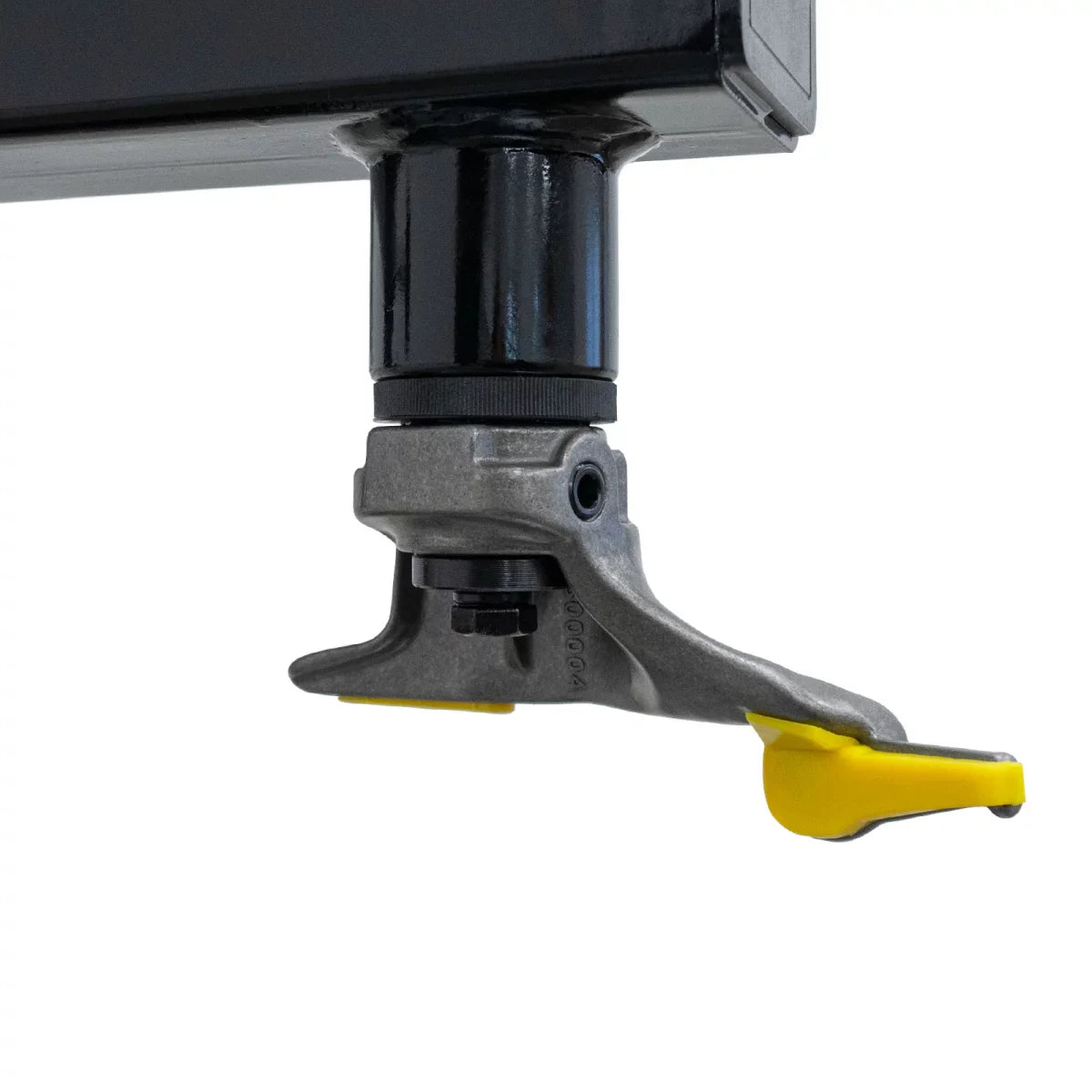

-Mounting head with receptacle for plastic protection elements to protect the rim
-Clamping jaws made of high-strength steel for secure clamping of the rim from inside and outside

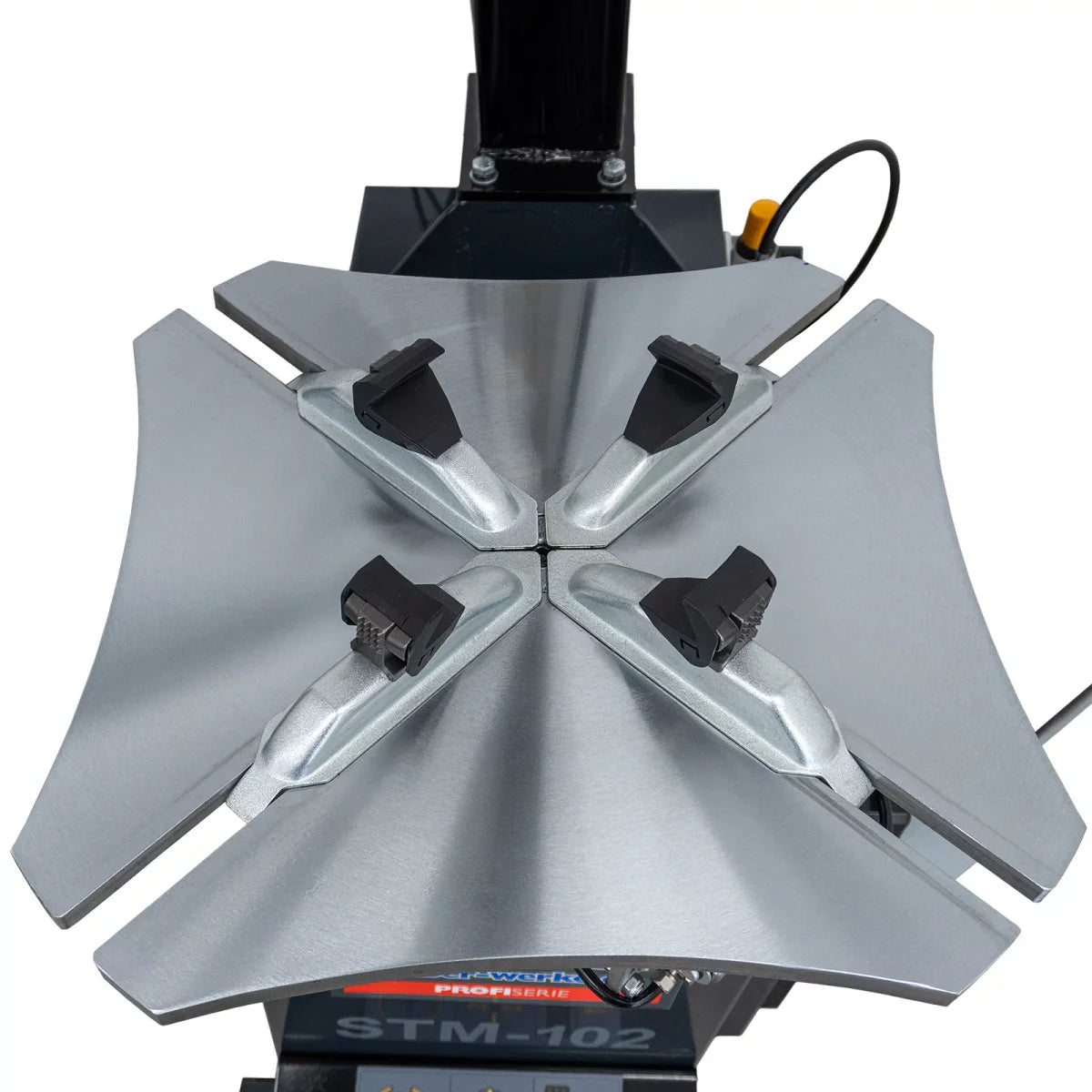

-Self-centering clamping plate up to 24" rim size

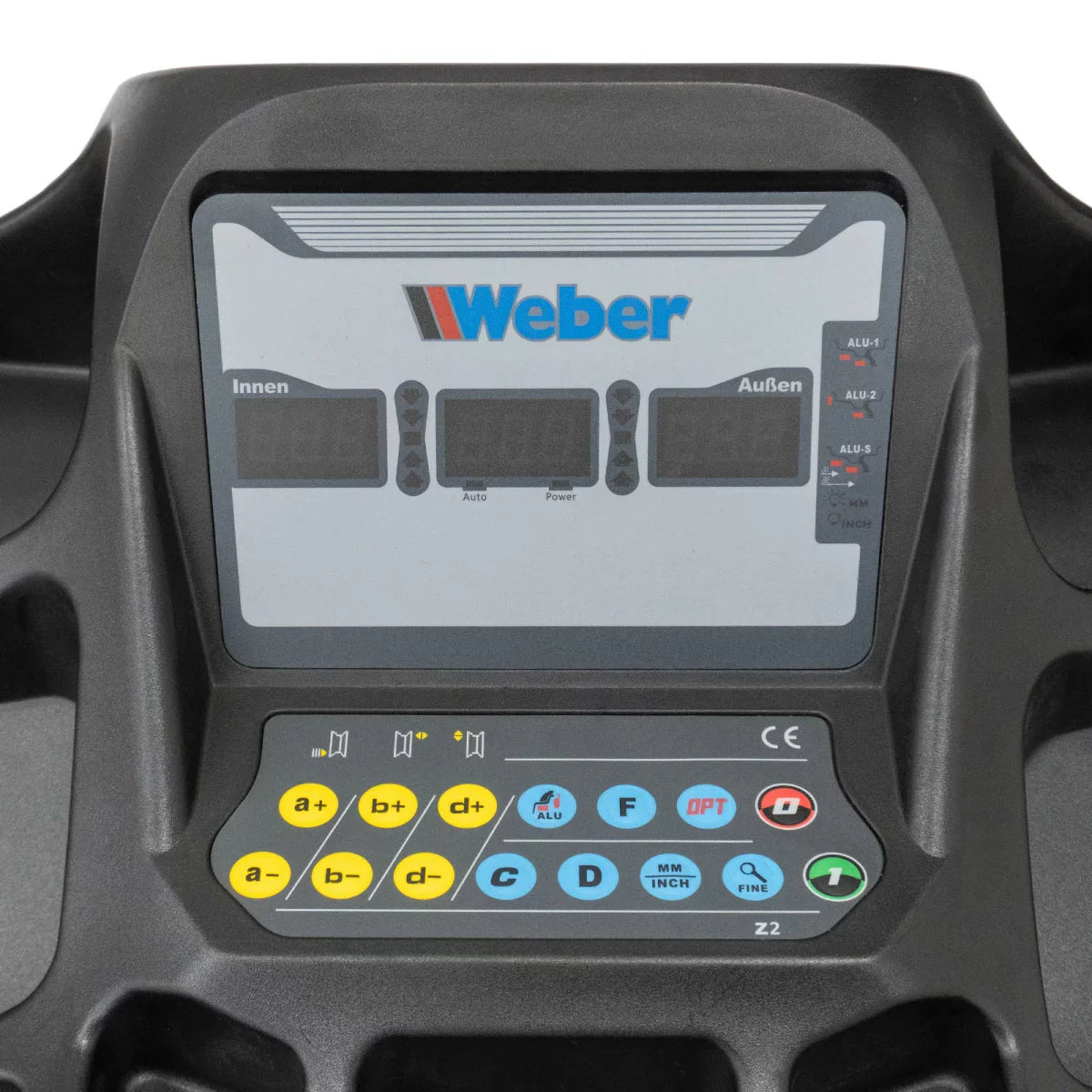

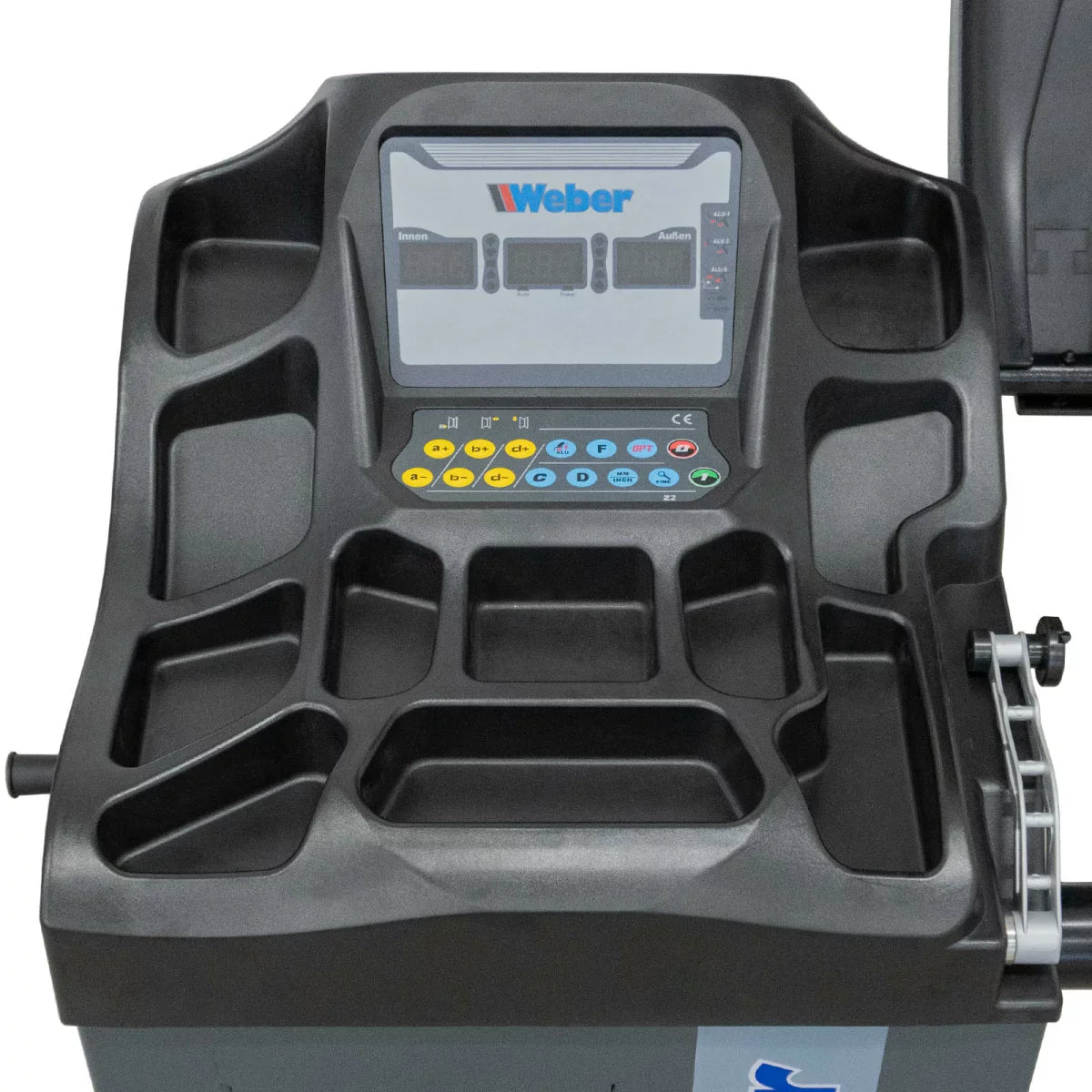

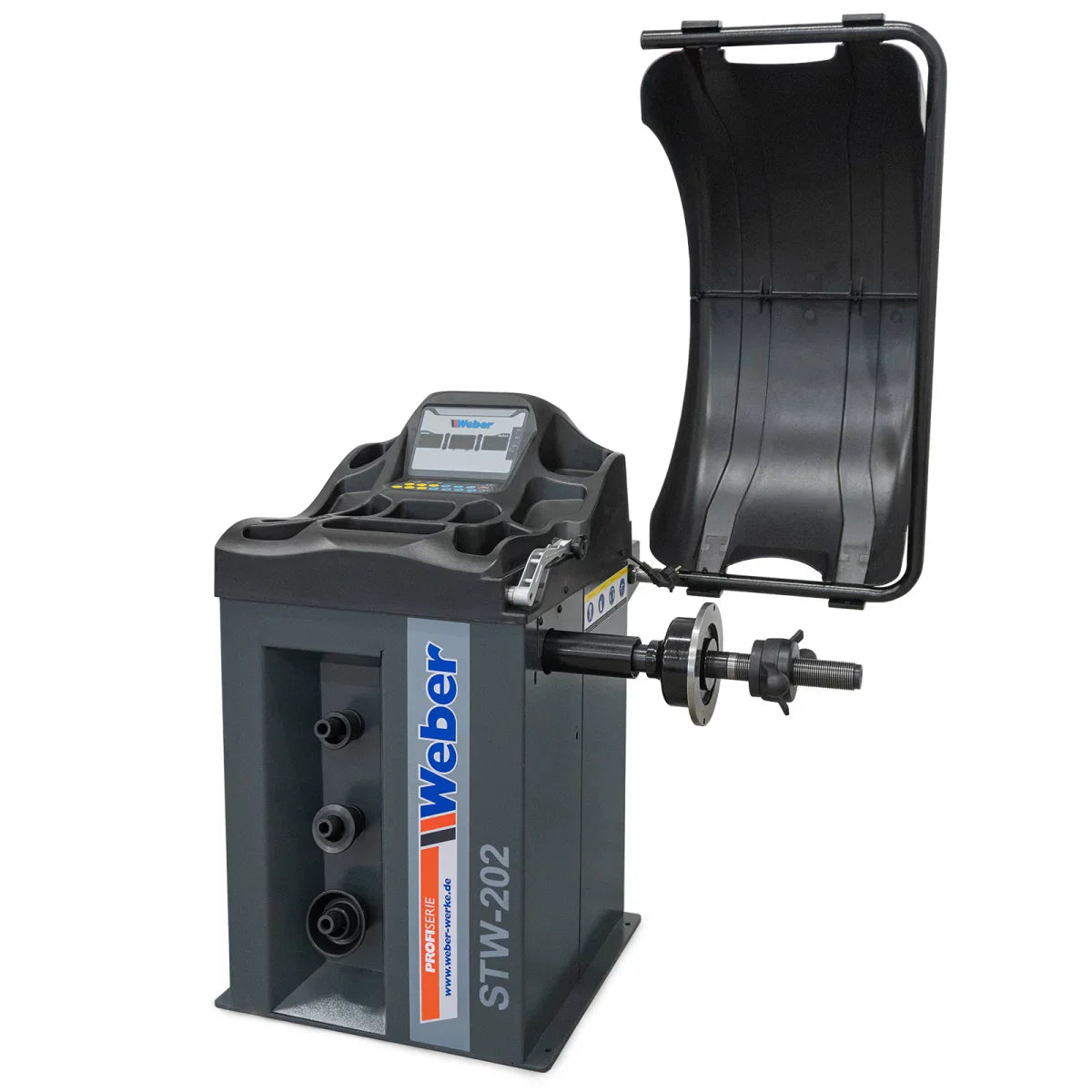

The microprocessor-controlled wheel balancer STW-202 impresses with its robust construction and proven technology. The balancing machine has a modern measuring arm, which is used for automatic acquisition of rim data. In addition, the machine has various balancing programs that allow balancing of car and motorcycle wheels.

-Static and dynamic balancing
-4 aluminum programs, as well as one steel rim and one motorcycle program
-2D – automatic acquisition of rim data
-Automatic balancing process with wheel braking
-Integrated software for self-test and calibration
-Optimization function for weight display < 5 g

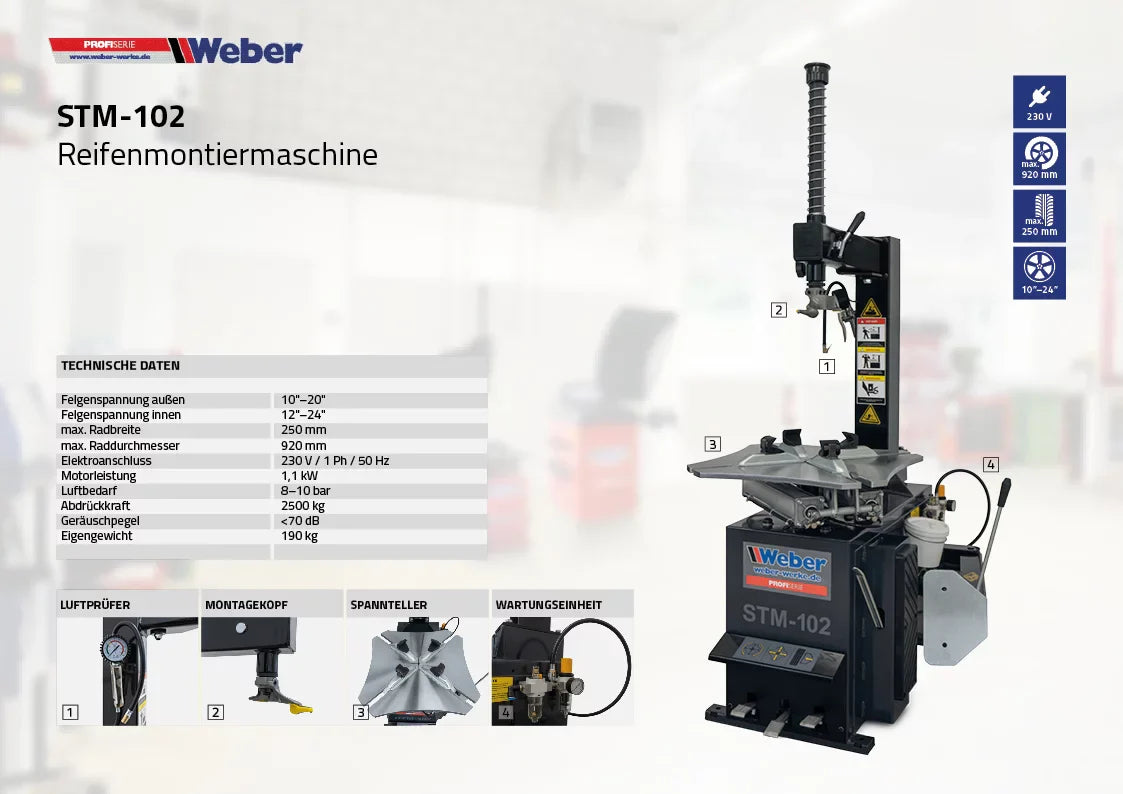

Technical data – Tire changer STM-102

Outside rim clamping 10"–20"
Inside rim clamping 12"–24"
Max. wheel width 250 mm
Max. wheel diameter 920 mm
Electrical connection 230 V / 1 Ph / 50 Hz
Motor power 1.1 kW

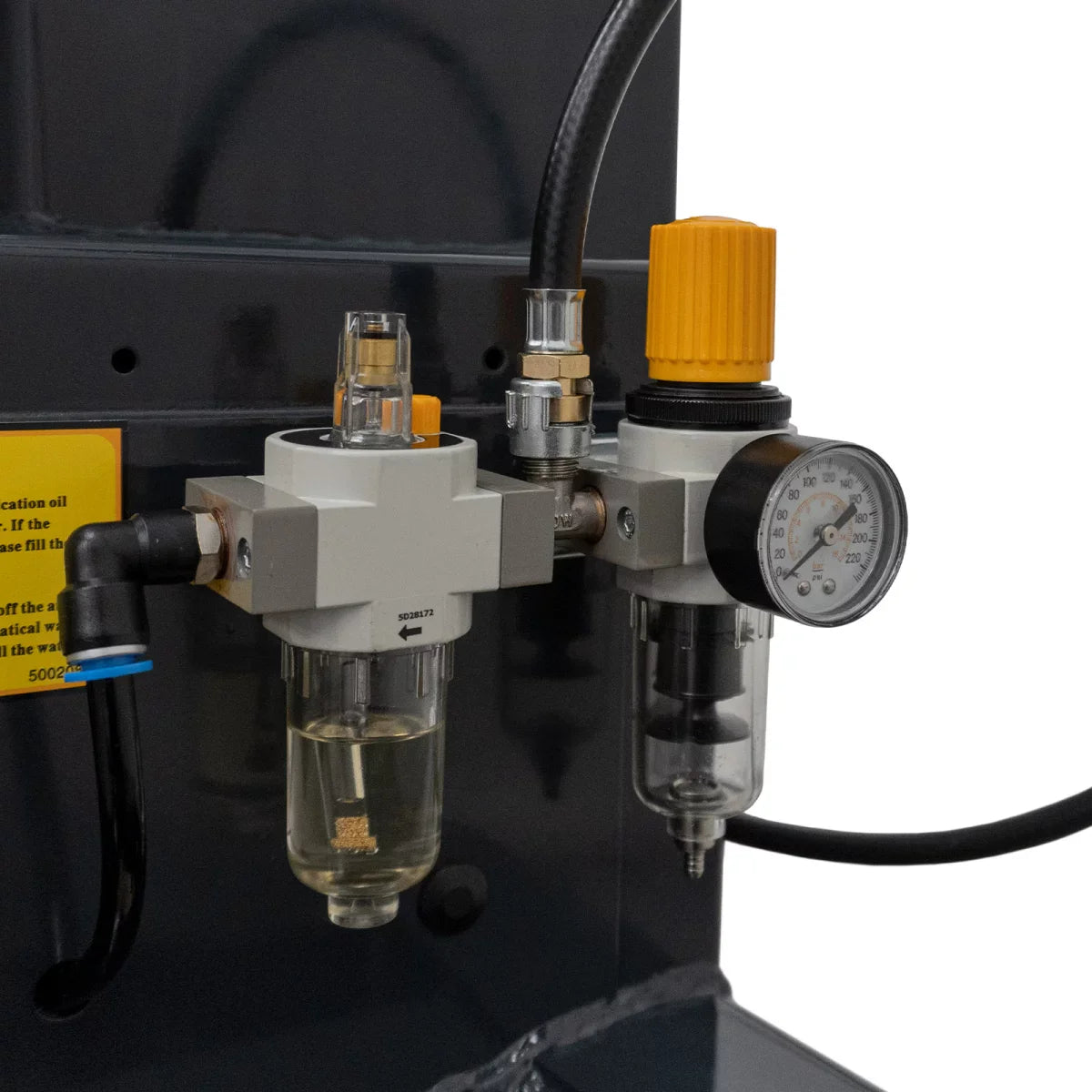

Air requirement 8–10 bar
Bead breaking force 2500 kg
Noise level <70 dB
Weight 190 kg

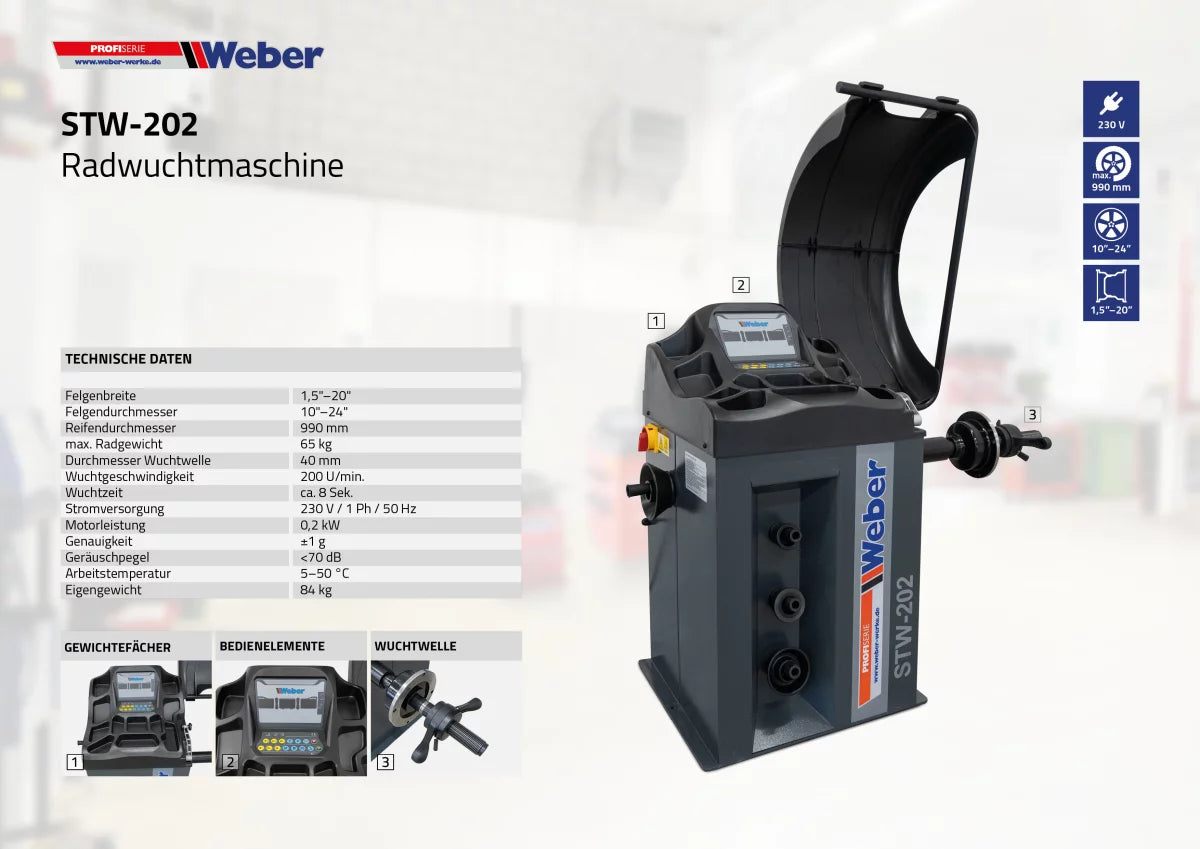

Technical data – Wheel balancer STW-202

Rim diameter 10–24"
Max. wheel weight 65 kg
Noise level <70 dB
Motor power 0.2 kW
Electrical connection 230 V / 1 Ph / 50 Hz
Weight 84 kg
Rim width 1.5–20"
Wheel diameter 990 mm
Balancing speed 200 rpm
Balancing time approx. 8 sec.
Accuracy ±1 g
Operating temperature 5–50 °C

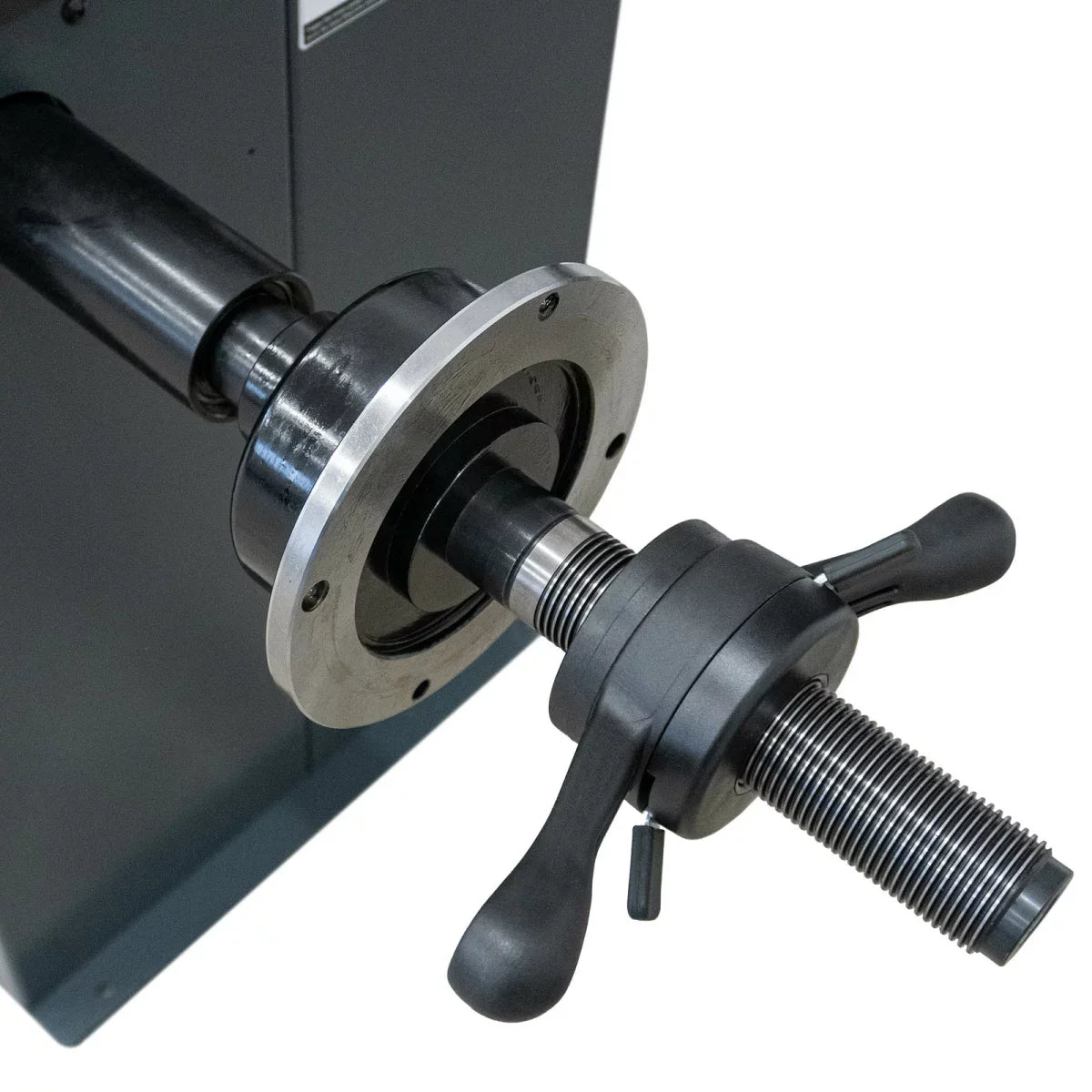

Balancing shaft diameter 40 mm

Scope of Delivery

-Tire changer as shown

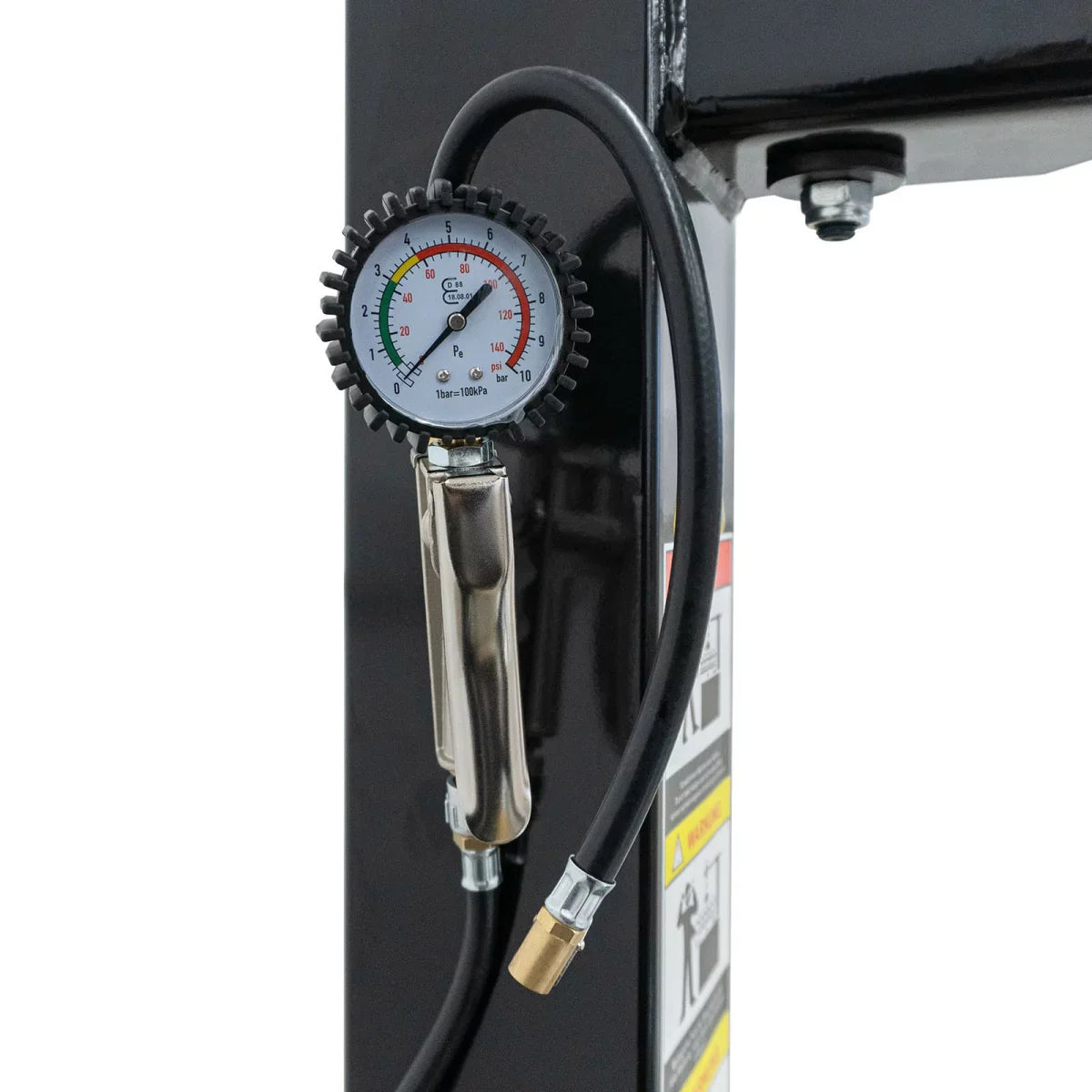

-Bucket for mounting paste, tire inflator, tire lever
-4x plastic protection for clamping jaws
-German assembly and operating instructions
-Wheel balancer incl. wheel guard and balancing shaft
-Calibration weight, rim width gauge, weight pliers, 4 balancing cones, quick-release nut, aluminum rim attachment for quick-release nut
-German assembly and operating instructions

Shipping Dimensions
Shipping Dimensions Package 1

Item Weight approx. 210.00 kg
Length approx. 97.00 cm
Width approx. 76.00 cm
Height approx. 96.00 cm

Shipping Dimensions Package 2
Item Weight approx. 84.00 kg
Length approx. 80.00 cm
Width approx. 110.00 cm
Height approx. 112.00 cm
