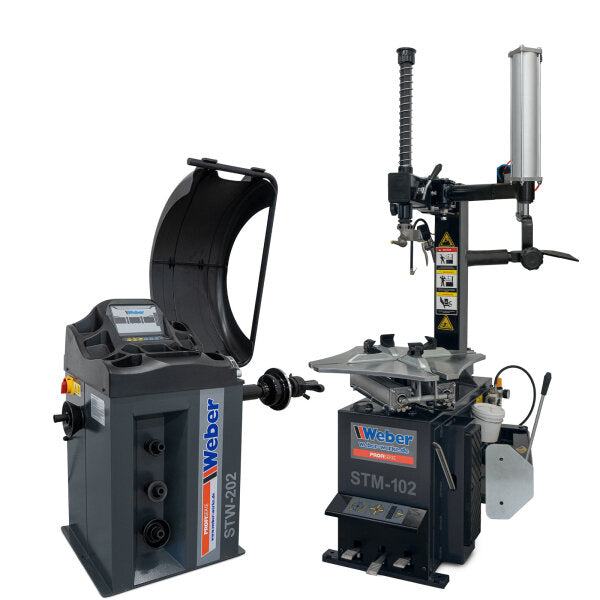

Car tire changer STM-102 and wheel balancer STW-202 including right helper arm

Article number: AM346

Tire changer for cars and vans
-Side-swiveling mounting arm
-Eccentric clamping of the mounting head
-Ideal clamping range for cars and vans (motorcycle adapter optional)

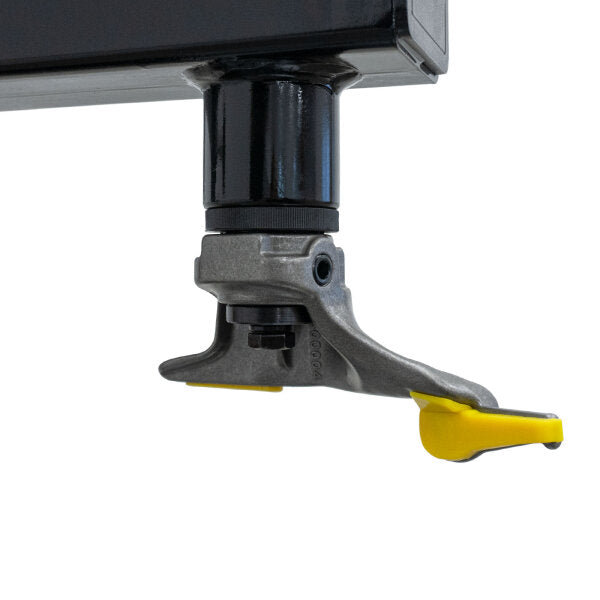

-Mounting head with receptacle for plastic protective elements to protect the rim
-Clamping jaws made of high-strength steel for secure clamping of the rim from the inside and outside

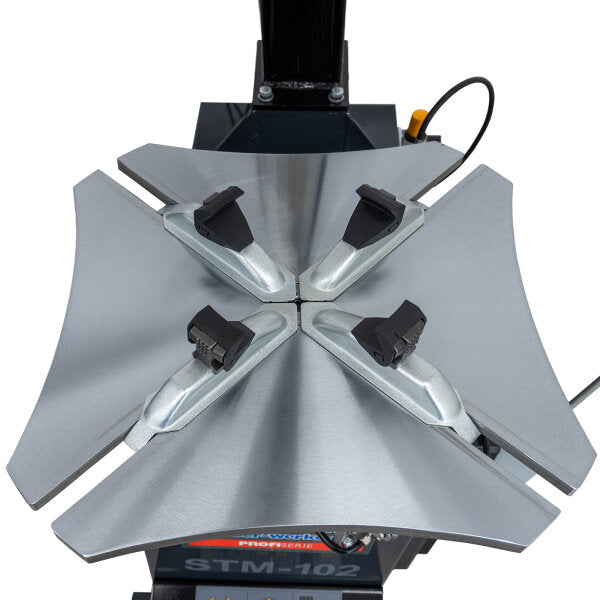

-Self-centering clamping plate for rim sizes up to 24"

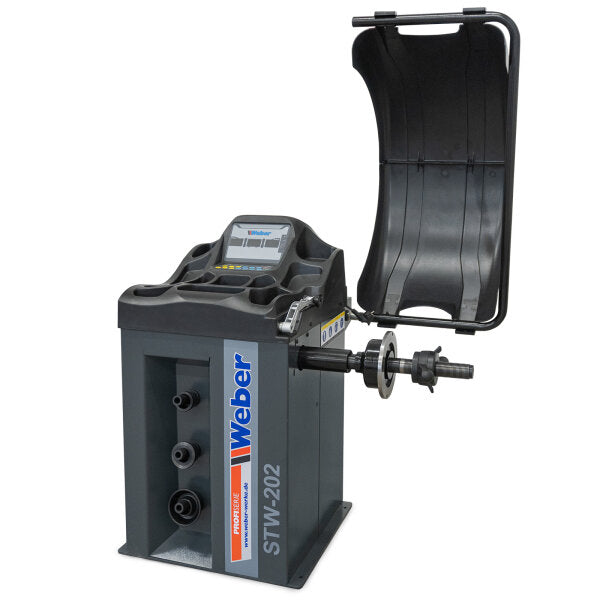

Wheel balancer for rims up to 24"

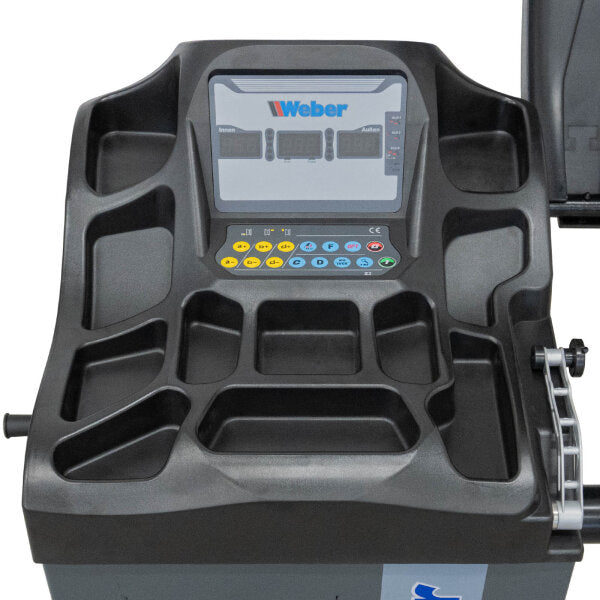

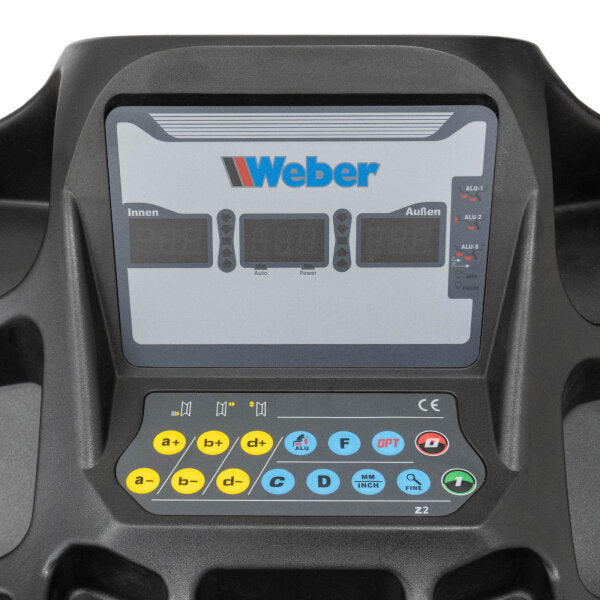

The microprocessor-controlled wheel balancer STW-202 impresses with its robust construction and proven technology. The balancer has a modern measuring arm, which serves for automatic acquisition of rim data. In addition, the machine has various balancing programs that enable the balancing of car and motorcycle wheels.

Static and dynamic balancing
4 aluminum programs, as well as a steel rim and a motorcycle program
2D – automatic acquisition of rim data
Automatic balancing process with wheel braking
Integrated software for self-test and calibration
Optimization function for weight display <5 g
Auxiliary mounting arm HP-Klassik-R
Right auxiliary mounting arm for mounting run-flat and low-profile tires
Operated via a joystick that controls a pneumatic cylinder
Stable hold-down roller for pressing the tire bead behind the mounting head
Lift blade for lifting the tire during the dismantling process
Weight: 15.7 kg

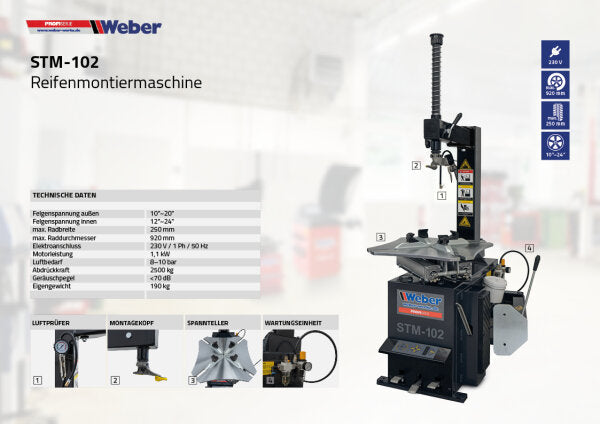

Technical data – Tire changer STM-102

Outside rim clamping 10"–20"
Inside rim clamping 12"–24"
Max. wheel width 250 mm
Max. wheel diameter 920 mm
Electrical connection 230 V / 1 Ph / 50 Hz
Motor power 1.1 kW

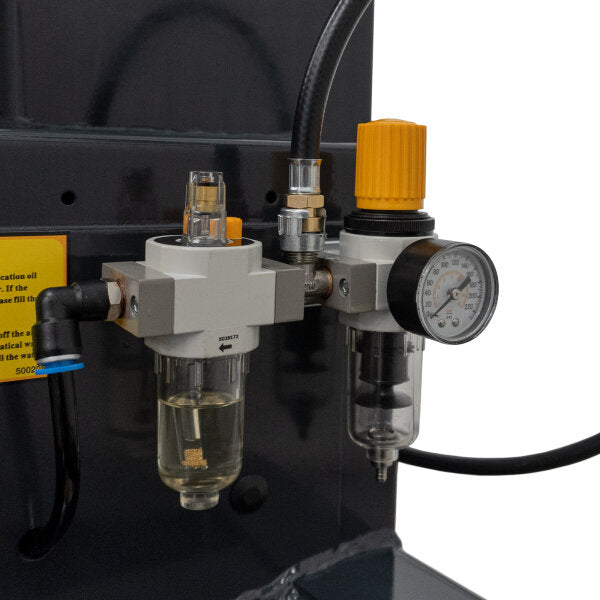

Air requirement 8–10 bar
Bead breaking force 2500 kg
Noise level <70 dB
Net weight 190 kg

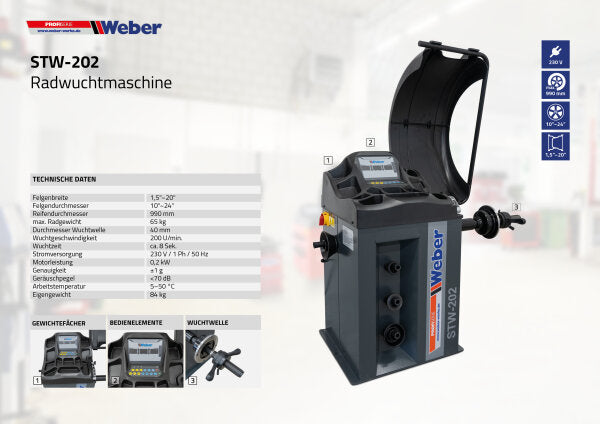

Technical data – Wheel balancer STW-202

Rim diameter 10–24"
Max. wheel weight 65 kg
Noise level <70 dB
Motor power 0.2 kW
Electrical connection 230 V / 1 Ph / 50 Hz
Net weight 84 kg
Rim width 1.5–20"
Wheel diameter 990 mm
Balancing speed 200 rpm.
Balancing time approx. 8 sec.
Accuracy ±1 g
Operating temperature 5–50 °C

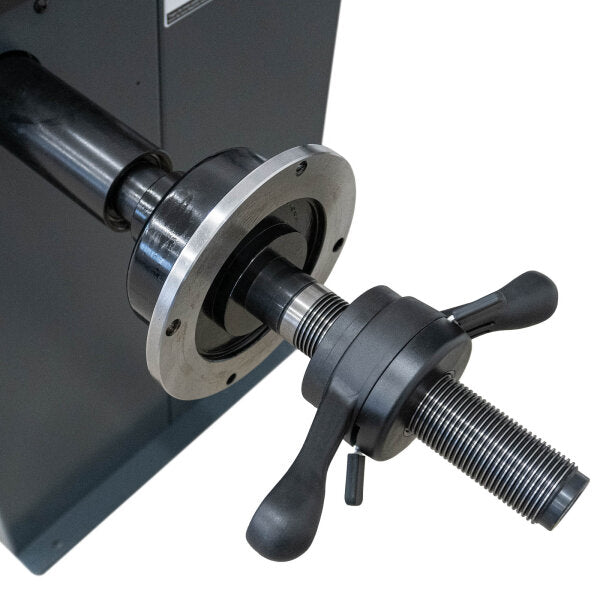

Balancing shaft diameter 40 mm

Scope of delivery:

-Tire changer incl. auxiliary mounting arm as pictured

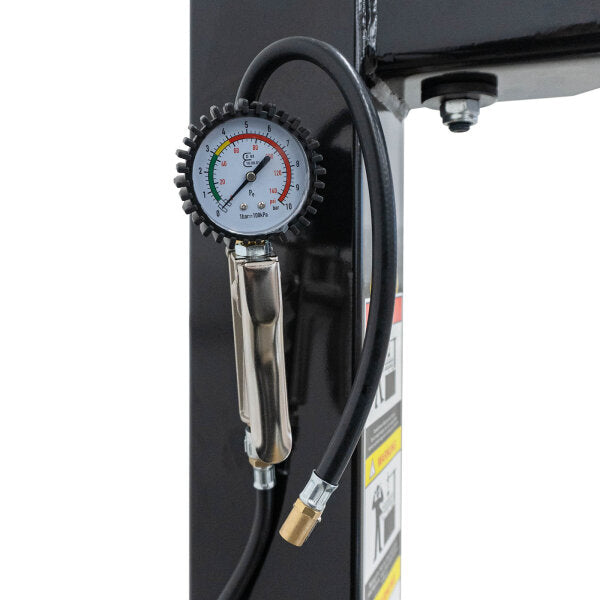

-Bucket for mounting paste, tire inflator, tire lever
-4x plastic protectors for clamping jaws
-German assembly and operating instructions
-Wheel balancer incl. wheel guard and balancing shaft
-Calibration weight, rim width gauge, weight pliers, 4 balancing cones, quick-release nut, aluminum rim attachment for quick-release nut
-German assembly and operating instructions

Shipping dimensions
Shipping dimensions Package 1
Item weight approx. 180.00 kg
Length approx. 97.00 cm
Width approx. 76.00 cm
Height approx. 96.00 cm
Shipping dimensions Package 2
Item weight approx. 84.00 kg
Length approx. 90.00 cm
Width approx. 60.00 cm
Height approx. 112.00 cm
Shipping dimensions Package 3
Item weight approx. 16.00 kg
Length approx. 60.00 cm
Width approx. 27.00 cm
Height approx. 17.00 cm
