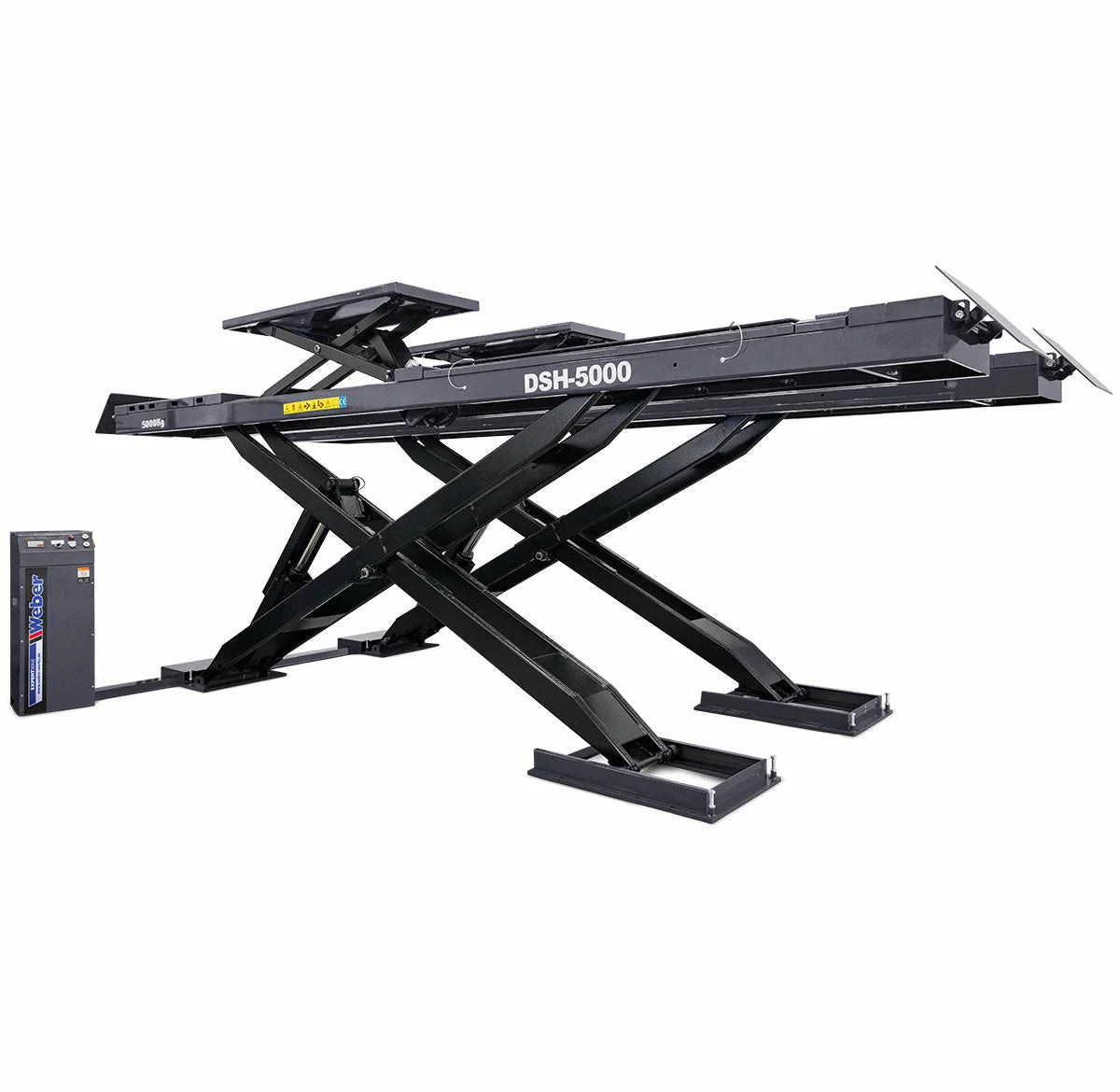

Electro-hydraulic scissor lift with wheel-free lift, 5000 kg lifting capacity and variable control unit. Also suitable for wheel alignment.

Electro-hydraulic scissor lift for wheel alignment

  • electro-hydraulic scissor lift
  • designed for flush-floor installation (surface mounting with optional drive-on ramps possible)

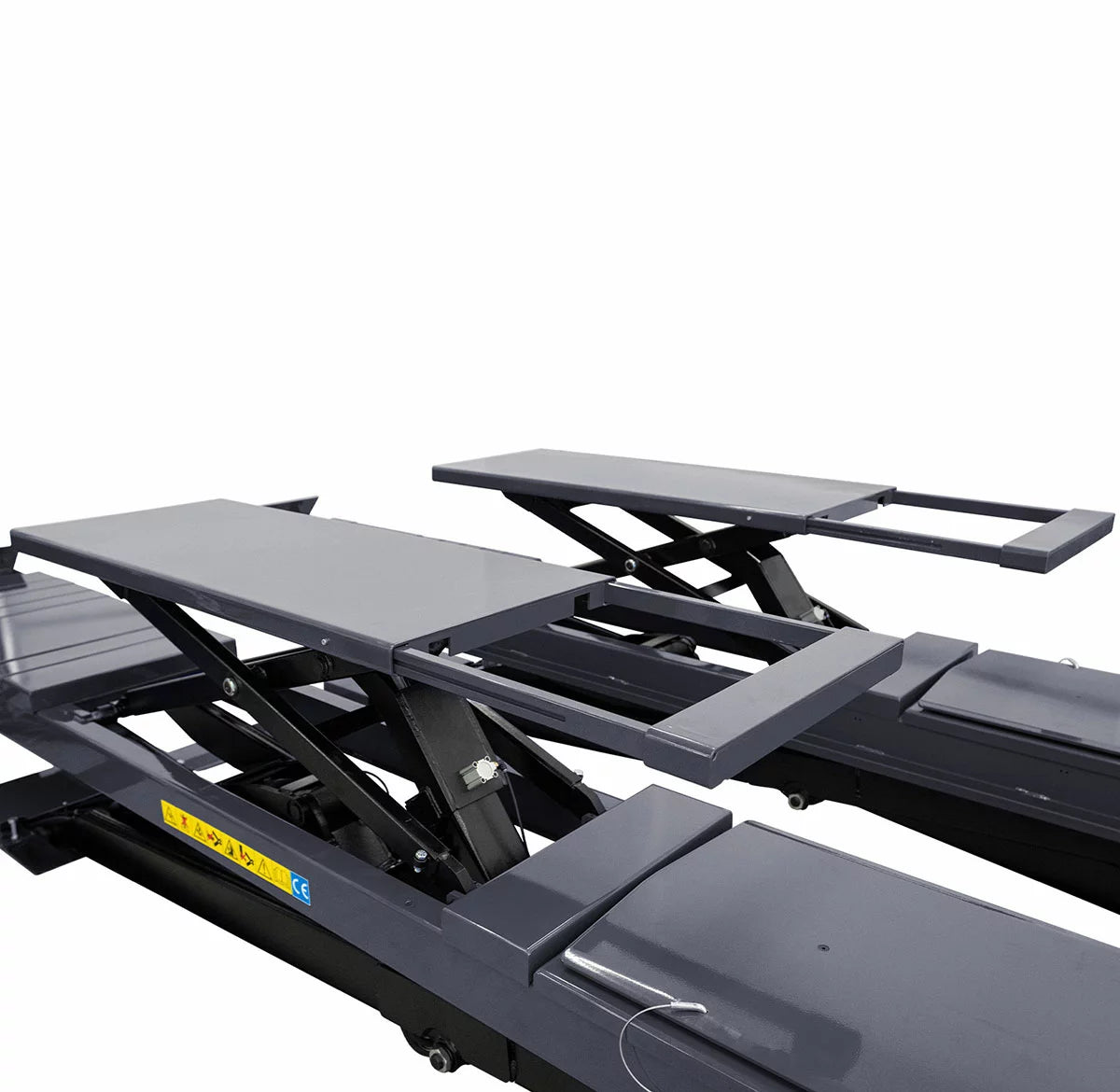

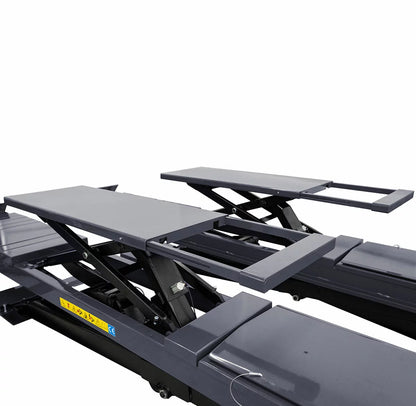

  • wheel-free lift integrated flush with the runways
  • recesses for turntables at the front, variably removable
  • manually lockable sliding plates at the rear
  • no rigid connection between the scissor sections
  • safety and overload valves in the hydraulic systems
  • electronic synchronization monitoring

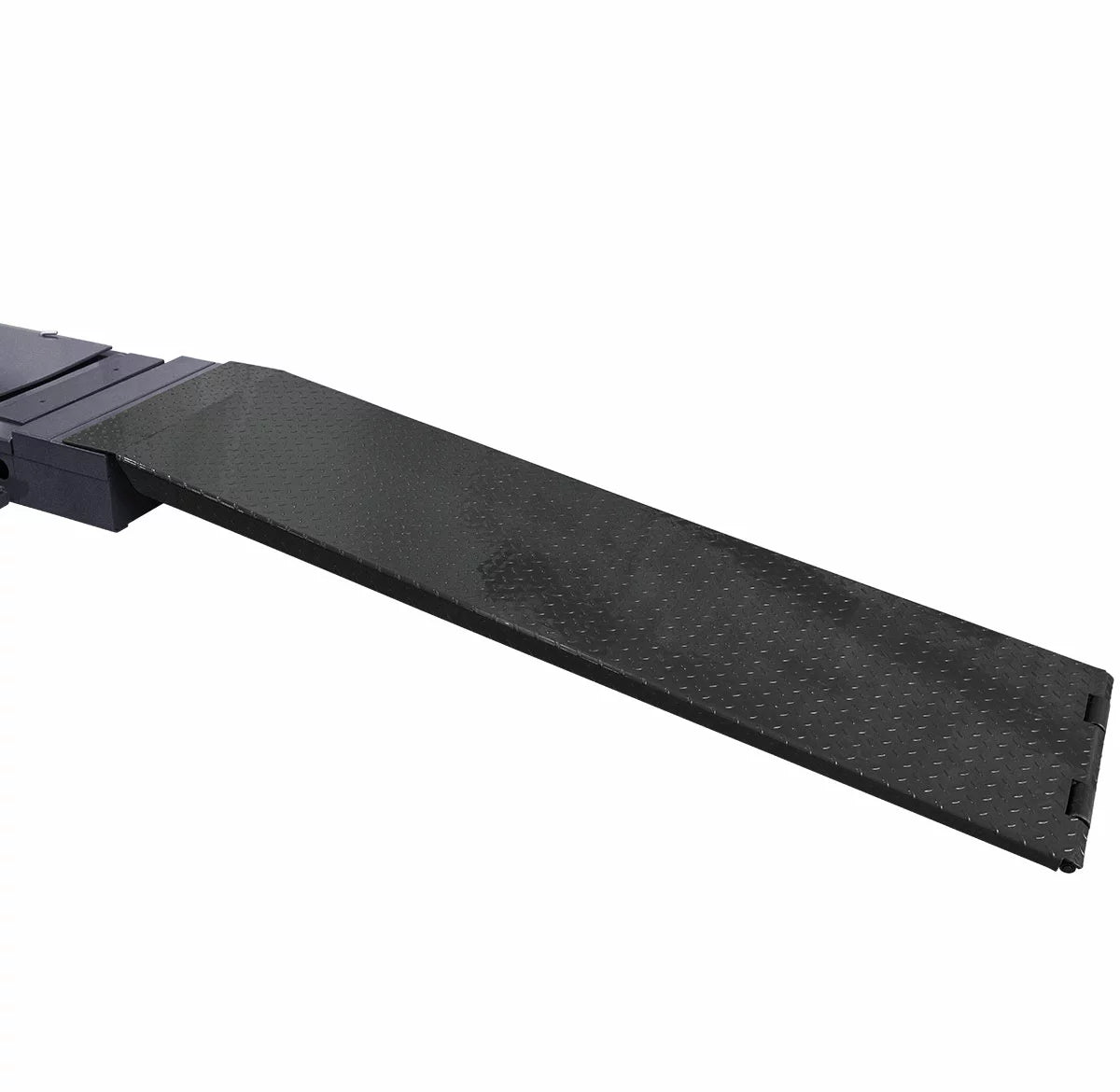

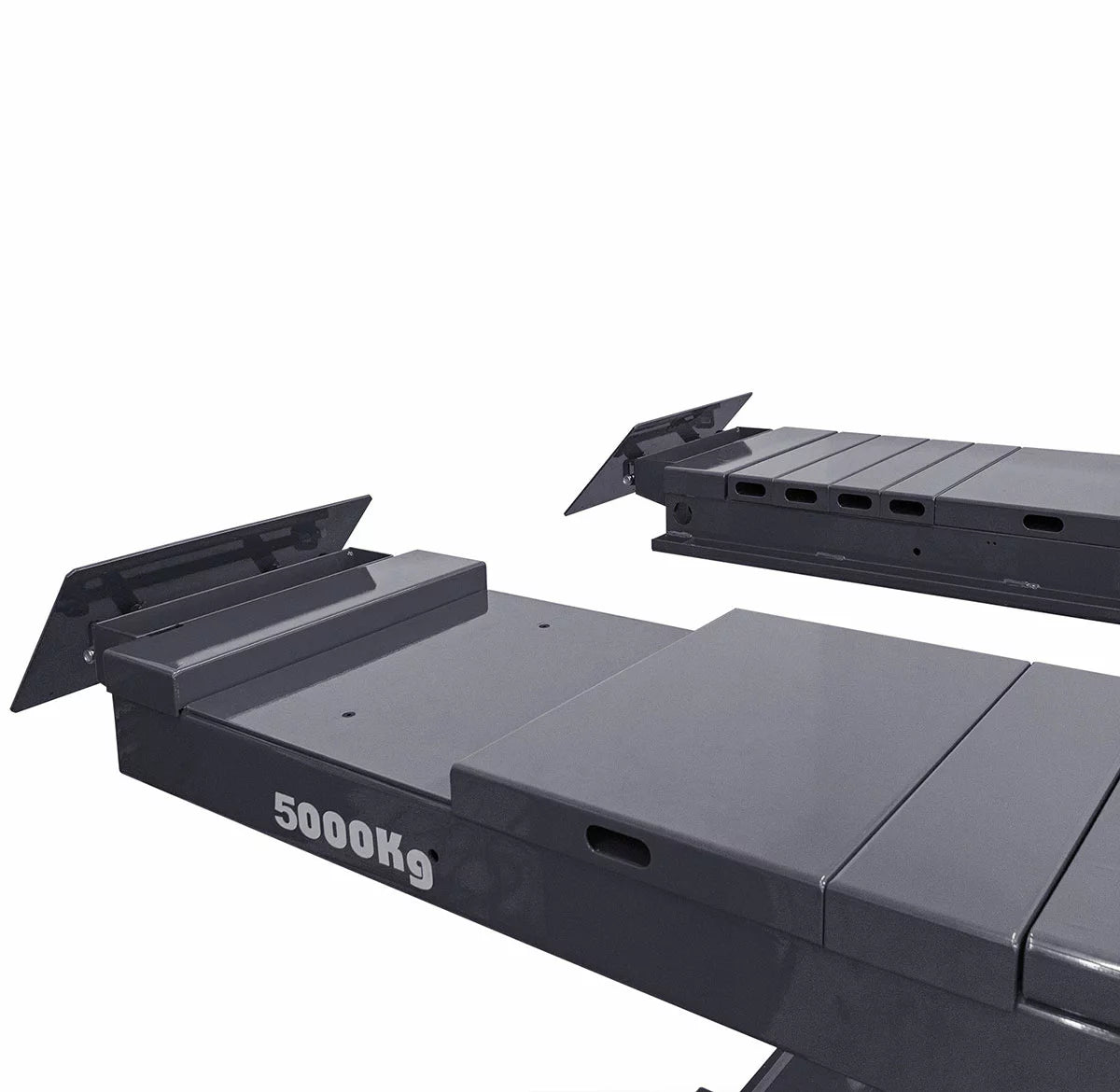

  • drive-on ramps as roll-off protection at the rear end of the runway
  • automatic mechanical safety latches with pneumatic release
  • low-wear bearings for the scissor joints

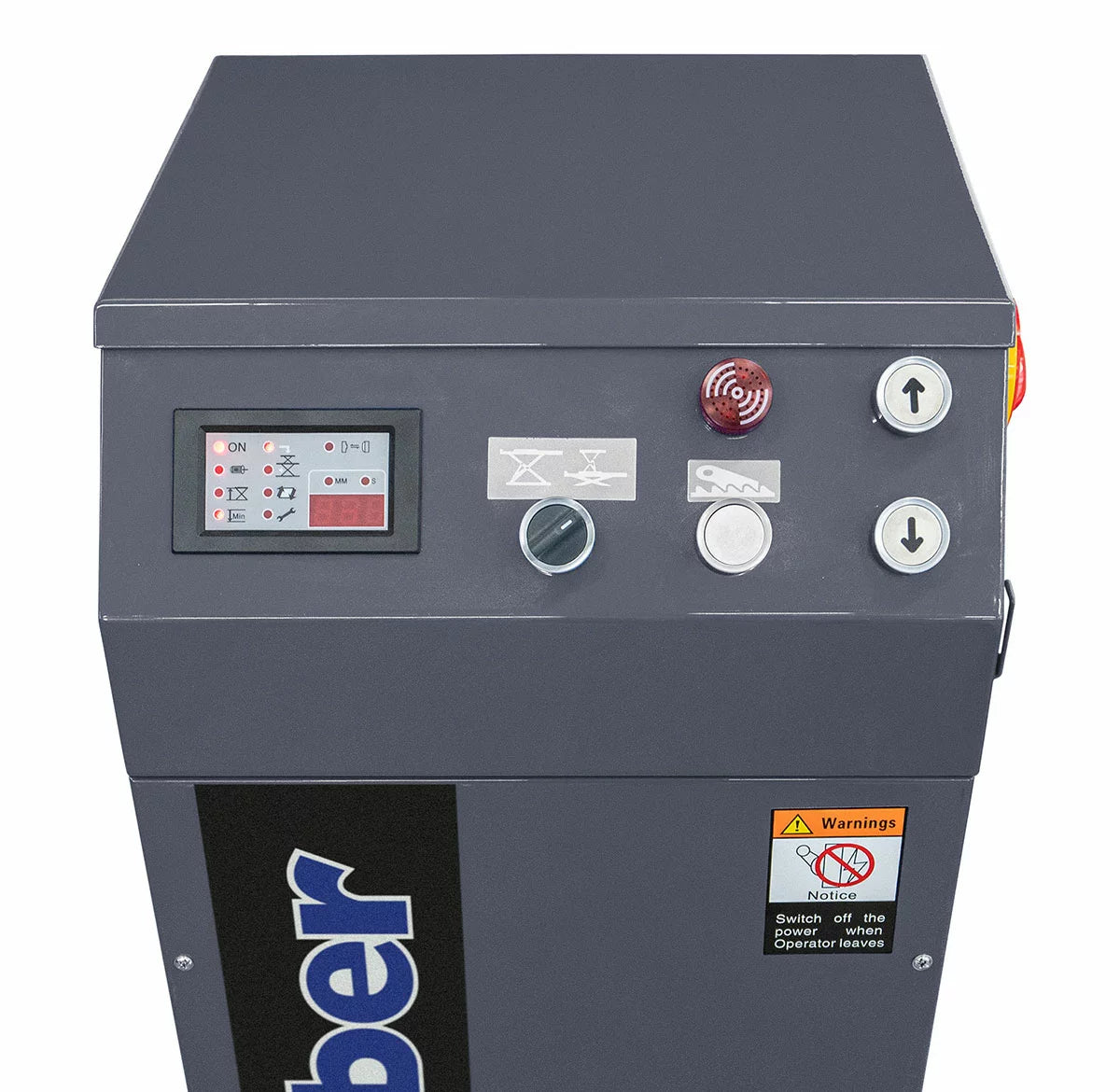

  • variably positionable control unit
  • absolute door freedom
  • runways can be shortened by 300 mm

Product videos

Possible application area

* The application areas of our lifting platforms are very diverse due to the wide variety of vehicle models and their jacking points. Therefore, we would like to point out that the application pictograms provided are only intended as a guide and do not reflect the actual lifting capacity of our products. Weber GmbH assumes no liability that all models of the respective vehicle class can be lifted. If you have any questions or uncertainties regarding the selection of a suitable product, we will be happy to advise you.


Weber Forklift

Attention, special arrangements for freight forwarding of this product!
Due to special dimensions, the goods must be unloaded from the delivery vehicle by the recipient using a forklift or other suitable machine upon delivery.

Product Information

Part Number: 120150

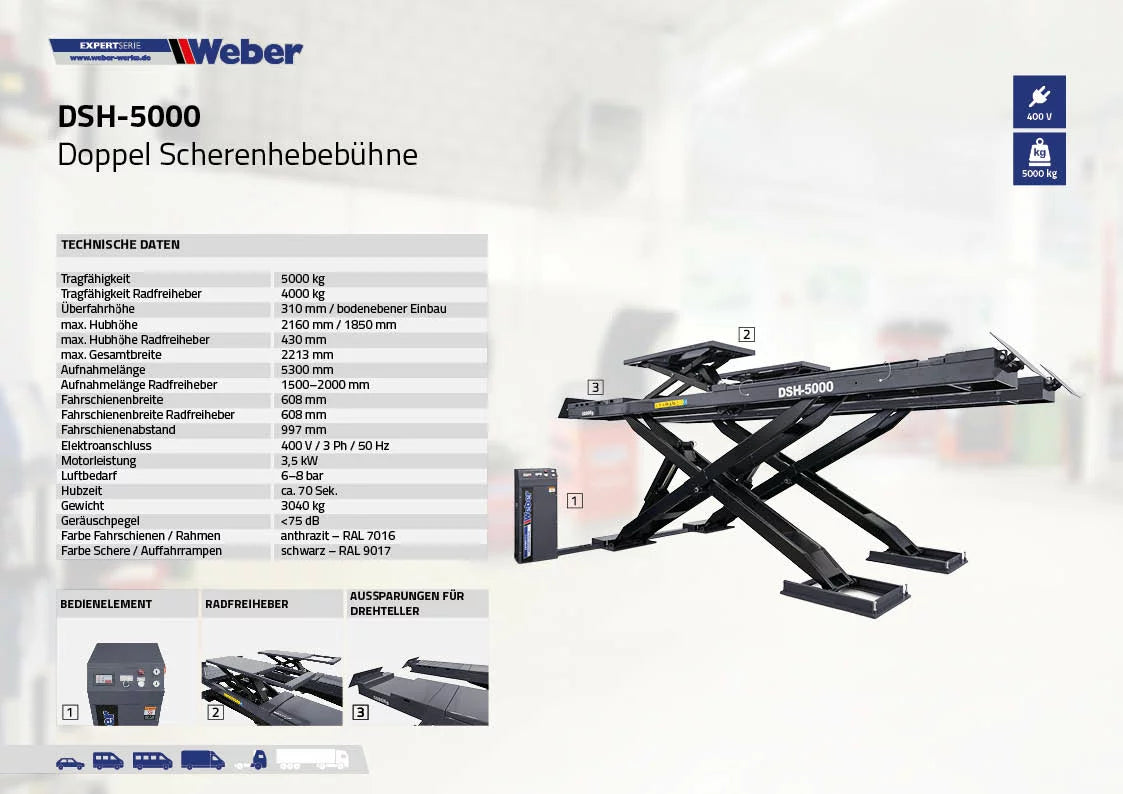

Technical Data

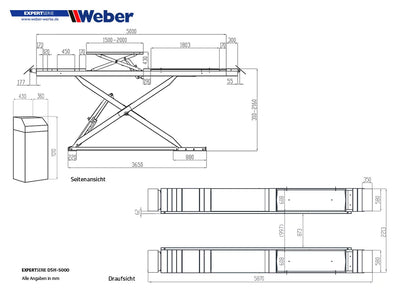

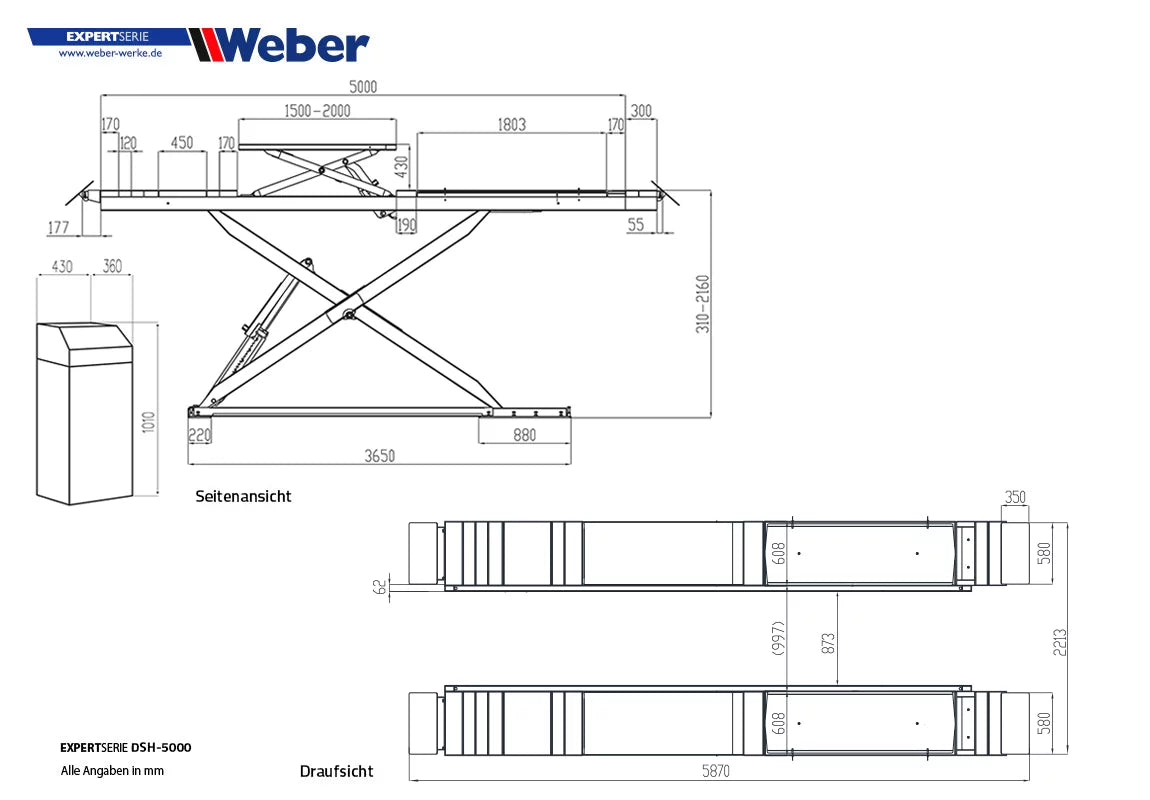

Drive-over height 310 mm / flush-floor installation
Load capacity 5000 kg
Platform length 5300 mm
Runway width 608 mm
Runway distance 997 mm
Air requirement 6-8 bar
Runway / frame color anthracite – RAL 7016
Scissor / ramp color black – RAL 9017
Noise level <75 dB
Motor power 3.5 kW
Electrical connection 400 V / 3 Ph / 50 Hz
Lifting time approx. 70 sec.
Net weight 3040 kg
Max. lifting height 2160 mm / 1850 mm
Max. total width 2213 mm
Load capacity wheel-free lift 4000 kg
Max. lifting height wheel-free lift 430 mm
Platform length wheel-free lift 1500-2000 mm
Runway width wheel-free lift 608 mm
Weight 3210 kg

Note: A 16A CEE plug with phase inverter, 5-pin (400 V) is not included in the scope of delivery and must be purchased separately.

Hydraulic oil is not included in the scope of delivery and must be purchased separately.

Shipping Information

Scope of delivery:
-Scissor lift including wheel-free lift as pictured
-Control box with hydraulic power unit
-1 set of universal rubber pads
-1 small parts set
-Cover plates for supply lines to the control unit

Shipping dimensions:
Item weight: approx. 3,040.00 kg
Length: approx. 537.00 cm
Width: approx. 75.00 cm
Height: approx. 115.00 cm
