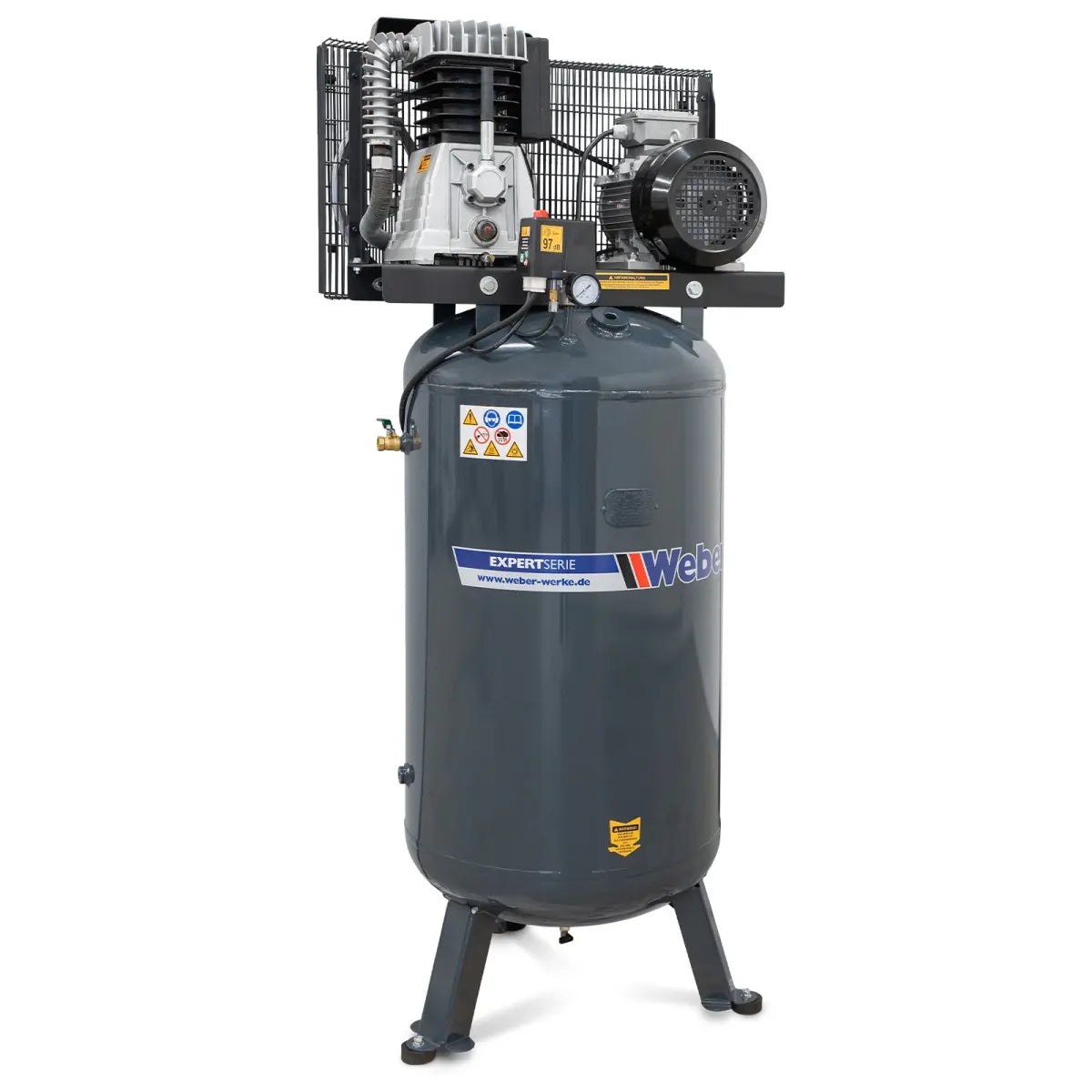

Workshop compressor 400 V / 10 bar / 270 l tank

Article number: WZ-KP11-270

Advantages for your workshop:

-Large 270-liter tank – provides sufficient air reserve for all workshop applications
-10 bar operating pressure – high flexibility and optimal performance for various pneumatic tools
-400 V / 3-phase connection – ideal for professional use with constant power supply
-High air delivery – efficient air supply for demanding tasks
-V-belt drive – for quiet operation, fewer vibrations, and a longer service life
-Manometer, ball valve & condensate drain valve – for convenient control and easy maintenance
-TÜV-certified safety valve – for maximum operational safety
-Robust, compact design – perfectly suited for stationary use in the workshop

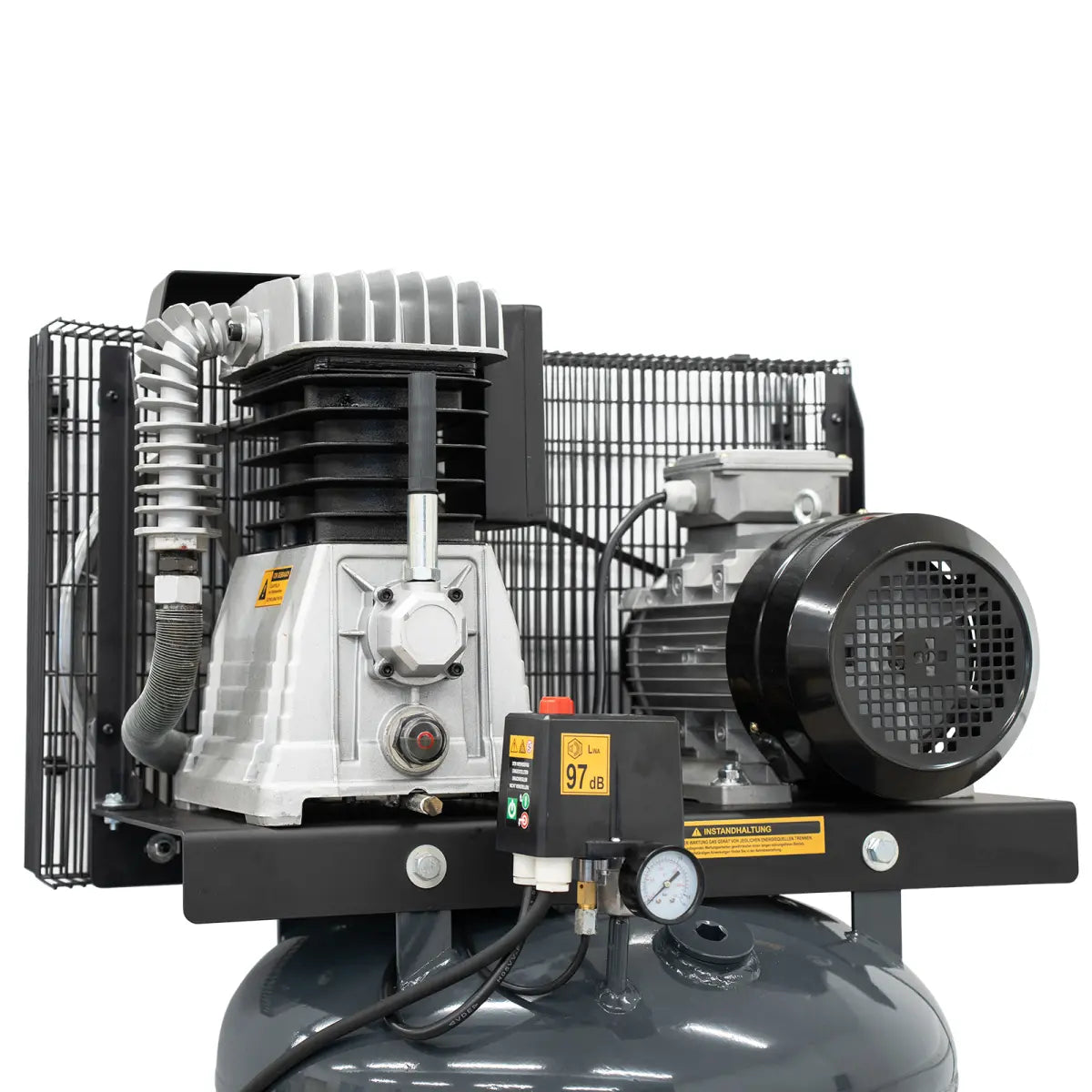

-V-belt driven compressor
-Powerful and robust
-High working pressure

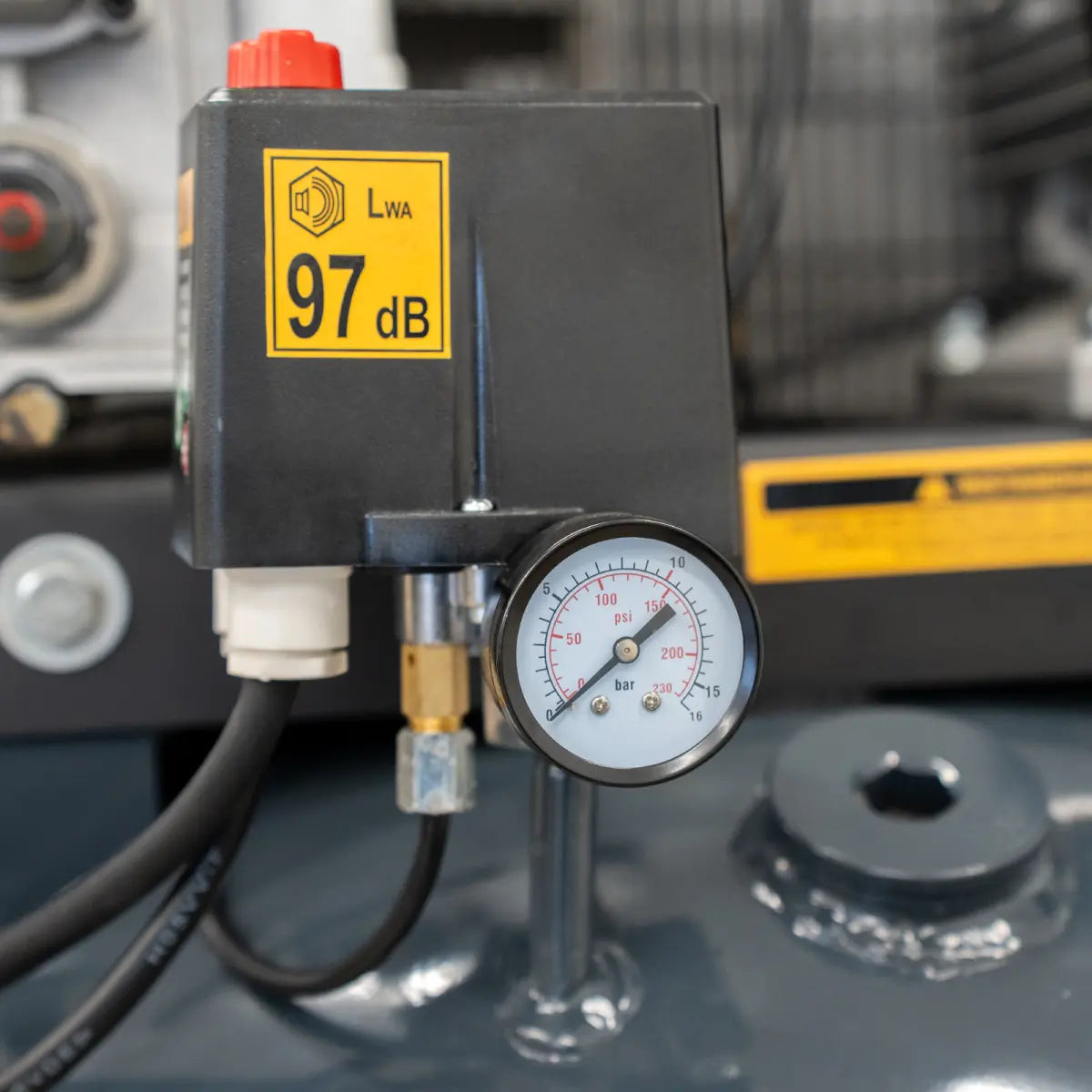

-With manometer

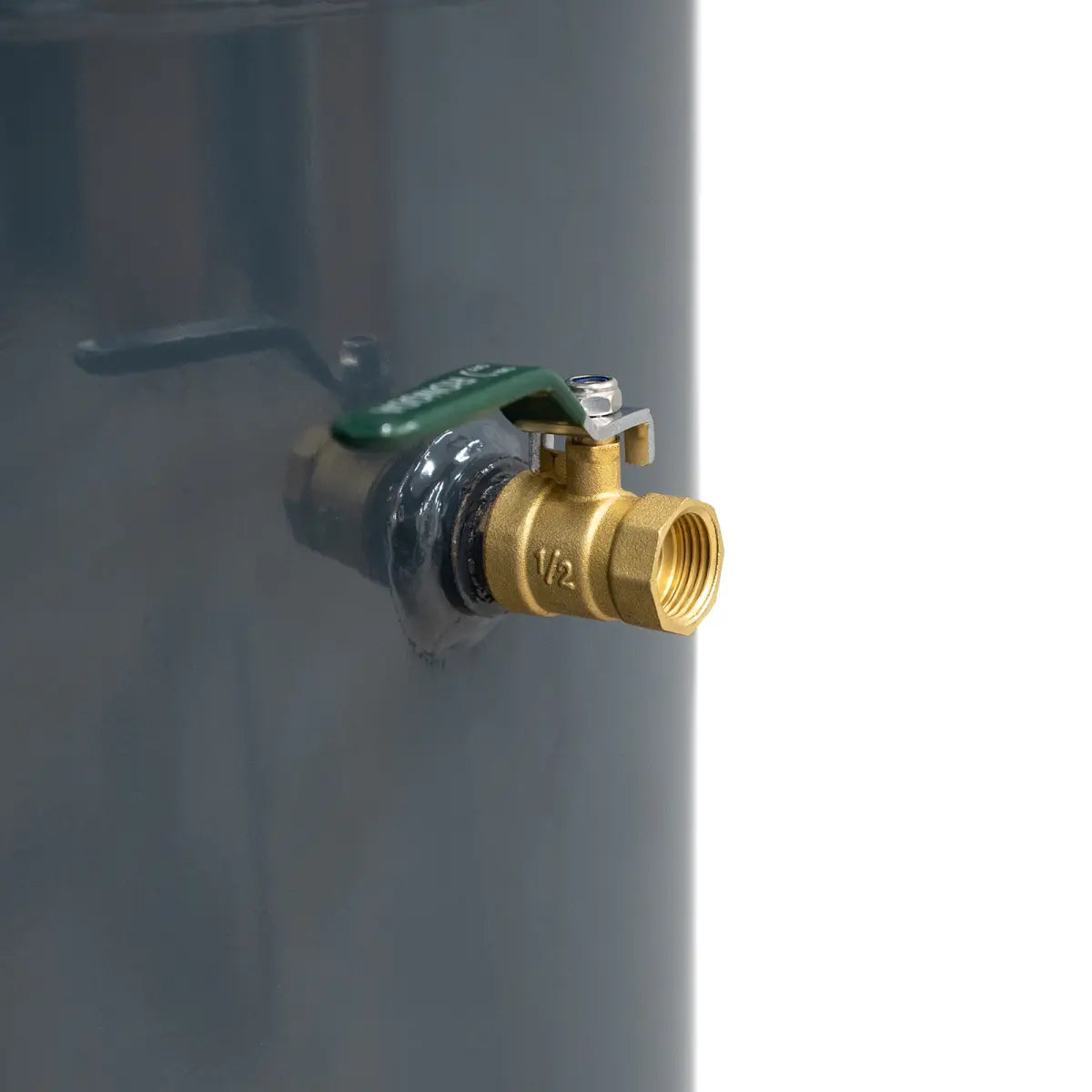

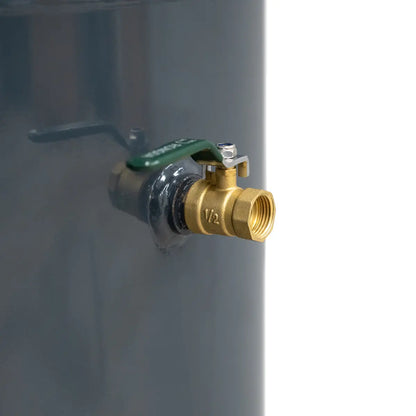

-Ball valve and condensate drain valve on the tank
-TÜV-certified safety valve
-Particularly quiet due to belt drive

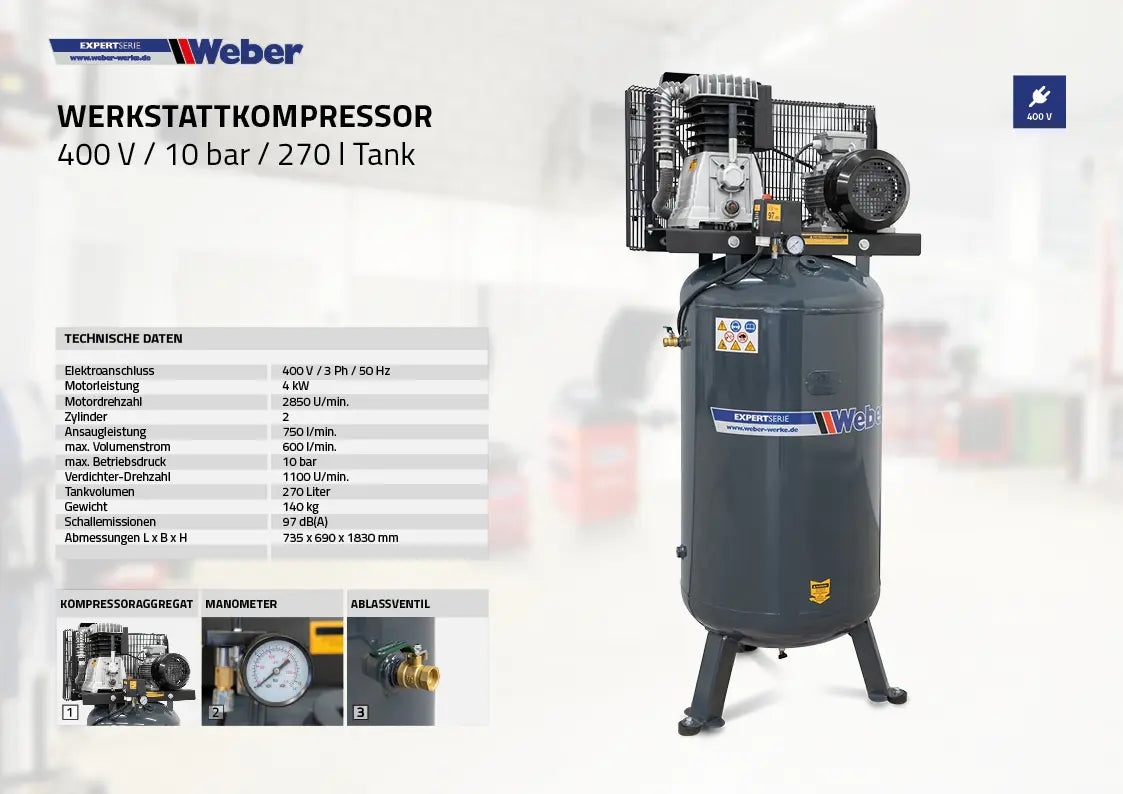

Technical Data
Motor power 4 kW
Electrical connection 400 V / 3 Ph / 50 Hz
Max. operating pressure 10 bar
Cylinders 2
Compressor speed 1100 rpm
Tank volume 270 liters
Sound emissions 97 dB(A)
Dimensions L x W x H 735 x 690 x 1830 mm
Max. volumetric flow 600 l/min.
Weight 140 kg
Motor speed 2850 rpm
Intake capacity 750 l/min.

Scope of delivery
-1x Workshop compressor 400 V / 10 bar / 270 l tank

Shipping dimensions
Item weight: approx. 175.00kg
Length approx. 73.50 cm
Width approx. 69.00 cm
Height approx. 183.00 cm
